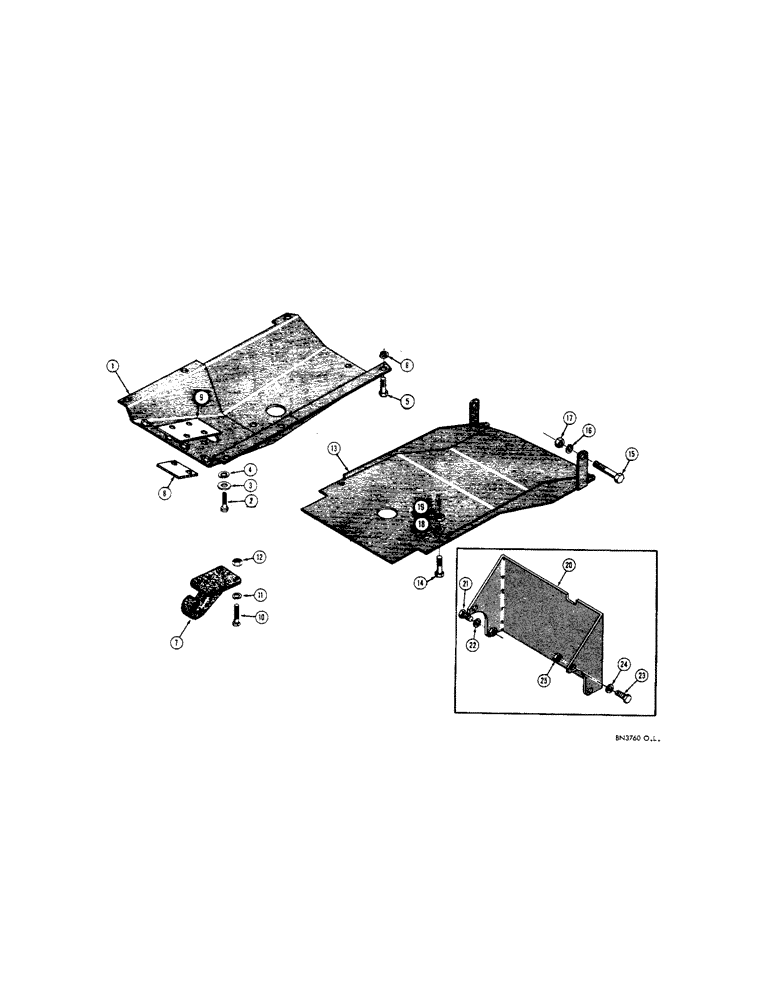

Запчасти Case 310F (132[1]) - PULL HOOK, CRANKCASE GUARD, AND TRANSMISSION GUARD (05) - UPPERSTRUCTURE CHASSIS

1

D26694

GUARD - crankcase

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

10940

HOOK

- pull

1шт.

8

36718

BRAKE BAND

SHIM - mounting, pull hook

1шт.

9

32123

LEVER

PLATE - doubler, pull hook

1шт.

10

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

13

D21130

GUARD - rear transmission

1шт.

14

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 5/8" - 13 NC x 2-1/2"

2шт.

15

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

25-1010

NUT,5/8"-11, G5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

20

D21408

GUARD - rear transmission (Forestry) Optional for drawbar and dozer models

1шт.

21

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.
