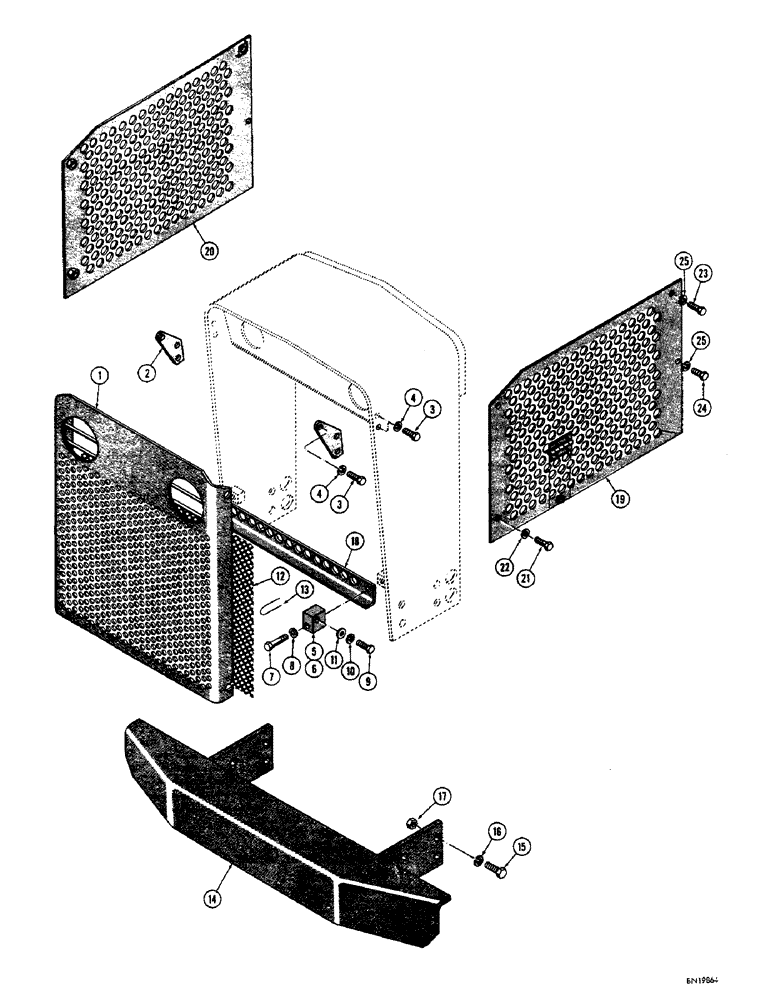

Запчасти Case 310F (094) - FORESTRY GRILLE GUARD, BUMPER AND SIDE BRUSH GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

D33495

GUARD - grille, forestry (Optional for drawbar and dozer models)

1шт.

2

D33548

BRACKET - grille guard

2шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

4

92-8

LOCK WASHER,1/2"

6шт.

5

D33492

BLOCK - spacer, L.H.

1шт.

6

D33493

BLOCK - spacer, R.H.

1шт.

7

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

12

D33494

SCREEN - grille

1шт.

13

391-501

WIRE - screen mounting (No. 14 x 6")

6шт.

14

D32133

BUMPER - forestry (Optional for drawbar models only)

1шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

16

92-8

LOCK WASHER,1/2"

8шт.

17

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

18

D31502

PLATE - cover

1шт.

19

D30483

GUARD - brush, side (L.H.) Optional for drawbar models only

1шт.

20

D30480

GUARD - brush, side (R.H.) Optional for drawbar models only

1шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

4шт.
