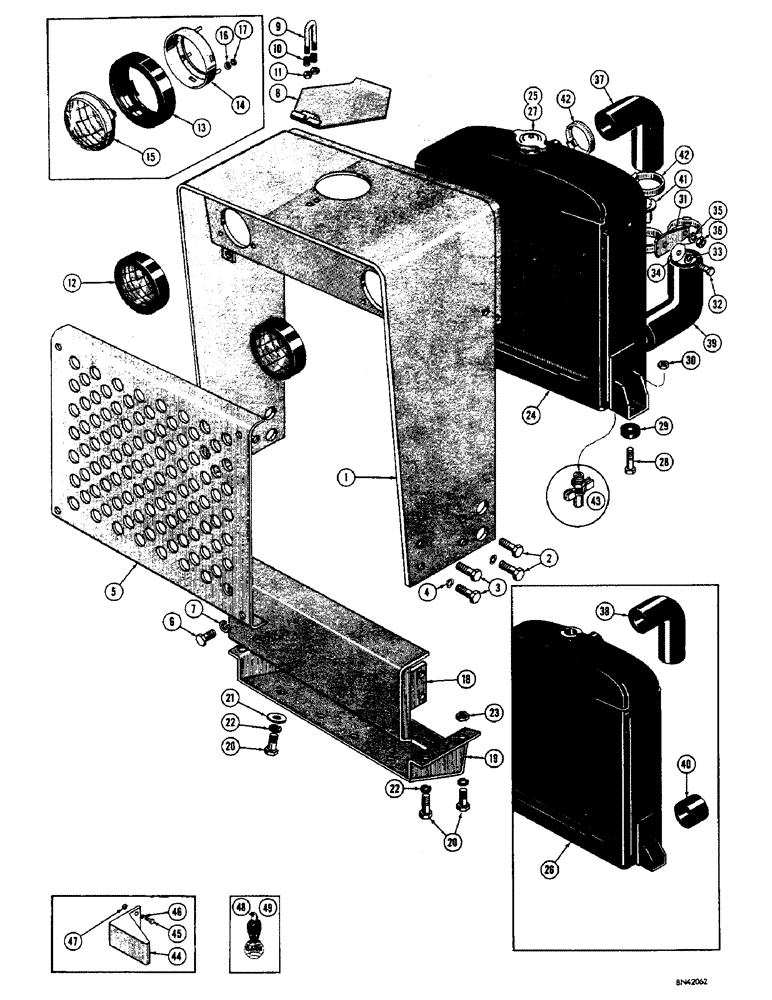

Запчасти Case 310F (092) - RADIATOR, THERMOSTAT, AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D29963

GUARD - grille (Standard on all models except loader models) See D29965

1шт.

D29965

MAIN FRAME AND GRILLE GUARD - loader models only (Not shown, see Figure 166)

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - grille guard and bumper mounting (1/2" - 13 NC x 1-3/4")

4шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

D29964

GRILLE - radiator

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

D30074

LID

COVER - access, radiator cap

1шт.

9

D29688

U-BOLT

"U" BOLT

1шт.

10

23098

SPRING

- radiator cap access cover

2шт.

11

131-365

LOCK NUT

NUT - lock (5/16" - 18 NF)

2шт.

12

D30243

LAMP

LIGHT - head

2шт.

13

D31441

RETAINER

1шт.

14

NSS

NOT SOLD SEPARAT

FRAME

1шт.

15

R16790

X

LAMP - sealed unit (Mfrs no. 4406) When stock is exhausted use D33182

1шт.

D33182

LAMP

- sealed unit (Mfrs no. 4410)

1шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

17

129-7

NUT,Hex, #10 - 24

- hex. (No. 10 - 24 NC)

6шт.

18

D25897

BUMPER - used on models prior to SN 3022406 (See D33203)

1шт.

D33203

FENDER

BUMPERS - used on SN 3022406 and after

1шт.

19

36979

SPACER

SUPPORT - bumper

1шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

21

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 5/64" thick)

4шт.

22

92-8

LOCK WASHER,1/2"

8шт.

23

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

24

D21839

RADIATOR - gas models only

1шт.

25

D25826

CAP

- pressure, radiator (7 P.S.I.)

1шт.

26

D26522

RADIATOR - diesel models only

1шт.

27

D25826

CAP

- pressure, radiator (7 P.S.I.)

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

29

D23003

SHOCK ABSORBER

WASHER - vibration

2шт.

30

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

2шт.

31

D27991

SUPPORT - radiator

2шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

D22988

WASHER

- vibration

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

37

D21961

HOSE,1.75" ID x 5.13", SAE 20R4

RADIATOR HOSE, , Inlet, Upper (Gas Models Only) 1.75" ID x 5.13", SAE 20R4

1шт.

38

D26526

HOSE,2.13" ID x 4.81", SAE 20R4

RADIATOR HOSE, , Inlet, Upper (Diesel Models Only) 2.13" ID x 4.81", SAE 20R4

1шт.

39

D21960

HOSE,1.75" ID x 4.56", SAE 20R4

RADIATOR HOSE, , Outlet, Upper (Gas Models Only) 1.75" ID x 4.56", SAE 20R4

1шт.

40

D26525

HOSE

- radiator outlet, lower (Diesel models only)

1шт.

41

G10235

THERMOSTAT

- gas models only (Use G11005) See G45788

1шт.

G11005

CASE

THERMOSTAT - gas models only (See G45788)

1шт.

G45788

THERMOSTAT - diesel models only (Not shown, see Figure 050)

1шт.

42

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(5 used on gas models; 4 used on diesel models) #36, 1.81/2.75 Type F Worm

4-5шт.

43

217-92

COCK

DRAIN COCK - radiator

1шт.

44

D23396

EXTENSION - bumper

2шт.

45

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

46

92-8

LOCK WASHER,1/2"

8шт.

47

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

48

A11492

X

MEDALLION - Case eagle (When stock is exhausted use A24526)

1шт.

A24526

MEDALLION - Case Eagle

1шт.

49

A11319

X

CLIP - retainer

2шт.
