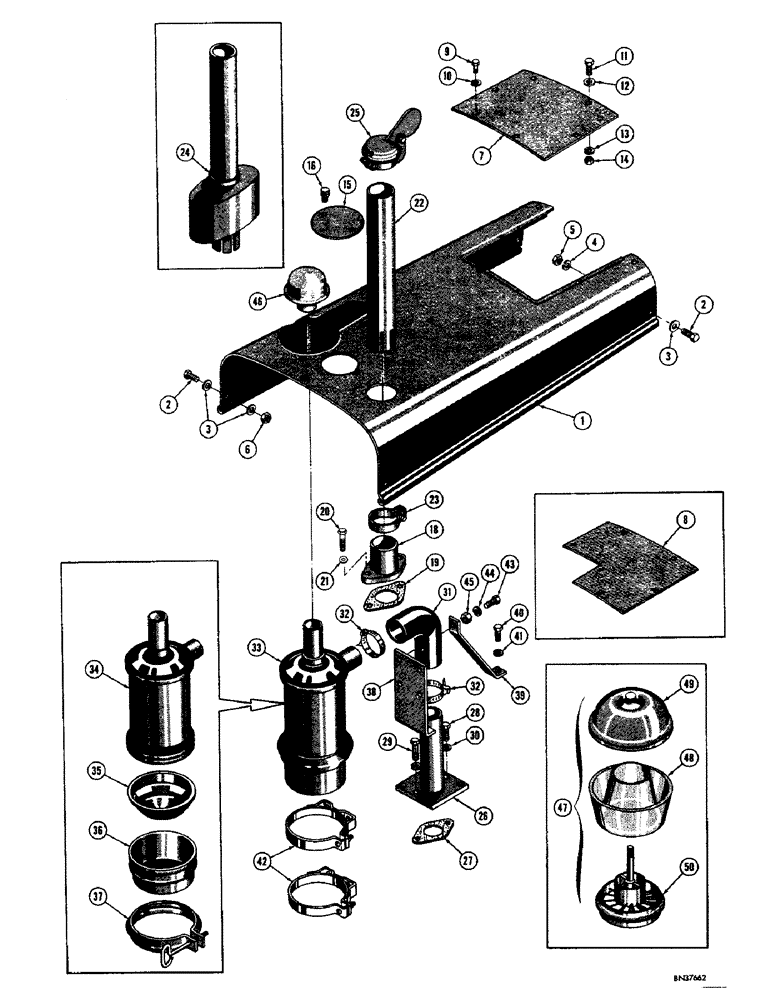

Запчасти Case 310F (090) - HOOD, EXHAUST SYSTEM, AND AIR CLEANER - DIESEL (05) - UPPERSTRUCTURE CHASSIS

1

D29975

HOOD - engine

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

3

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick

14шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

6

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

5шт.

7

D29976

COVER - access, instrument panel back

1шт.

8

D29974

COVER ASSY

COVER - access, instrument panel back (Loader models only)

1шт.

9

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4" - 28 NF x 1/2") 4 used on all models except Loader models; 3 used on Loader models

3-4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3-4шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

195-525

WASHER,3/8", SAE

- plain (13/32" I.D. x 13/16" O.D x 5/64" thick)

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

D29977

COVER - access, oil filler cap

1шт.

16

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4" - 28 NF x 3/4")

2шт.

17

RESERVED

1шт.

18

D22864

OUTLET

- exhaust (Used with standard exhaust pipe or D27275 muffler only) See D29308

1шт.

D29308

OUTLET

- exhaust (Used with D29307 spark arresting muffler only) See D22864

1шт.

19

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

D26989

PIPE - exhaust (Standard)

1шт.

D33535

PIPE

- exhaust (Underhood muffler and spark arresting muffler only) Not shown

1шт.

23

G45767

X

CLAMP - exhaust pipe and muffler

1шт.

24

D27275

MUFFLER

- exhaust, under hood (Optional) See D29307

1шт.

D29307

X

MUFFLER - exhaust, under hood (Spark arresting) Optional (See D27275)

1шт.

25

D28029

X

CAP - rain

1шт.

26

D27998

INLET - air, intake manifold

1шт.

27

D22670

GASKET

- intake manifold air inlet

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

D28030

ELBOW UNION

ELBOW - hose, air cleaner to intake manifold air inlet

1шт.

32

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

33

D22671

X

AIR CLEANER

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

35

G46324

CUP

- oil, inner

1шт.

36

G46325

CUP

- oil, outer

1шт.

37

G45153

CLAMP

- retaining, oil cup

1шт.

38

D27995

BRACKET - mounting, air cleaner

1шт.

39

D27997

BRACE - air cleaner bracket

2шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

41

92-6

LOCK WASHER,3/8"

4шт.

42

D28031

BAND - mounting, air cleaner

2шт.

43

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

44

92-5

LOCK WASHER,5/16"

4шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

46

D22685

CAP

- inlet, air cleaner

1шт.

47

D20604

PRECLEANER

PRE-CLEANER - air (Optional)

1шт.

48

D30675

BODY

- pre-cleaner

1шт.

49

D30676

COVER

- pre-cleaner

1шт.

50

D30677

SLEEVE

- pre-cleaner

1шт.
