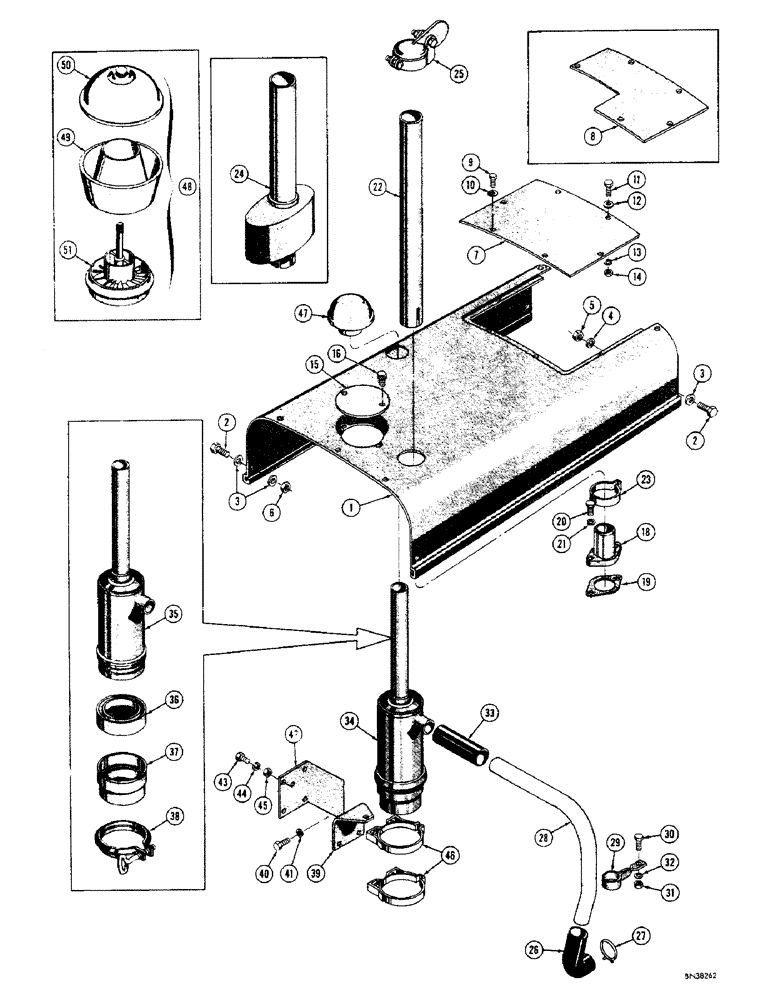

Запчасти Case 310F (088) - HOOD, EXHAUST SYSTEM, AND AIR CLEANER - GAS (05) - UPPERSTRUCTURE CHASSIS

1

D29978

HOOD - engine

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

9шт.

3

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

14шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

6

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

5шт.

7

D29976

COVER - access, instrument panel back

1шт.

8

D29974

COVER ASSY

COVER - access, instrument panel back (Loader models only)

1шт.

9

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4" - 28 NF x 1/2") 4 used on all models except Loader models; 3 used on Loader models

3-4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3-4шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

195-525

WASHER,3/8", SAE

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

D29977

COVER - access, oil filler cap

1шт.

16

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4" - 28 NF x 3/4")

2шт.

17

RESERVED

1шт.

18

D25460

OUTLET - exhaust

1шт.

19

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

D23127

PIPE - exhaust

1шт.

23

G13184

CLAMP

- exhaust pipe and muffler

1шт.

24

D21427

MUFFLER - exhaust, under hood (Optional)

1шт.

25

D28027

CAP

- rain

1шт.

26

D27155

ELBOW

- hose, carburetor to air cleaner (Lower section)

1шт.

27

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

28

D27136

PIPE - carburetor to air cleaner, center section

1шт.

29

38289

BRACKET - hanger, air cleaner tube

1шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

33

VT2185

HOSE

- carburetor to air cleaner, upper section

1шт.

34

D24939

CLEANER

AIR CLEANER

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

36

D26377

X

CUP - oil, inner

1шт.

37

D26371

CUP - oil, outer

1шт.

38

D26370

CLAMP

- retaining, oil cup

1шт.

39

D27133

BRACKET - mounting, air cleaner

1шт.

40

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

41

92-5

LOCK WASHER,5/16"

2шт.

42

D27134

BRACKET - support, air cleaner

1шт.

43

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

44

92-5

LOCK WASHER,5/16"

5шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

5шт.

46

D27245

COLLAR CLAMP

BAND - mounting, air cleaner

2шт.

47

VT3812

X

CAP - inlet, air cleaner

1шт.

48

D20605

PRECLEANER

PRE-CLEANER - air (Optional)

1шт.

49

D30675

BODY

- pre-cleaner

1шт.

50

D30676

COVER

- pre-cleaner

1шт.

51

D30678

SLEEVE

- pre-cleaner

1шт.
