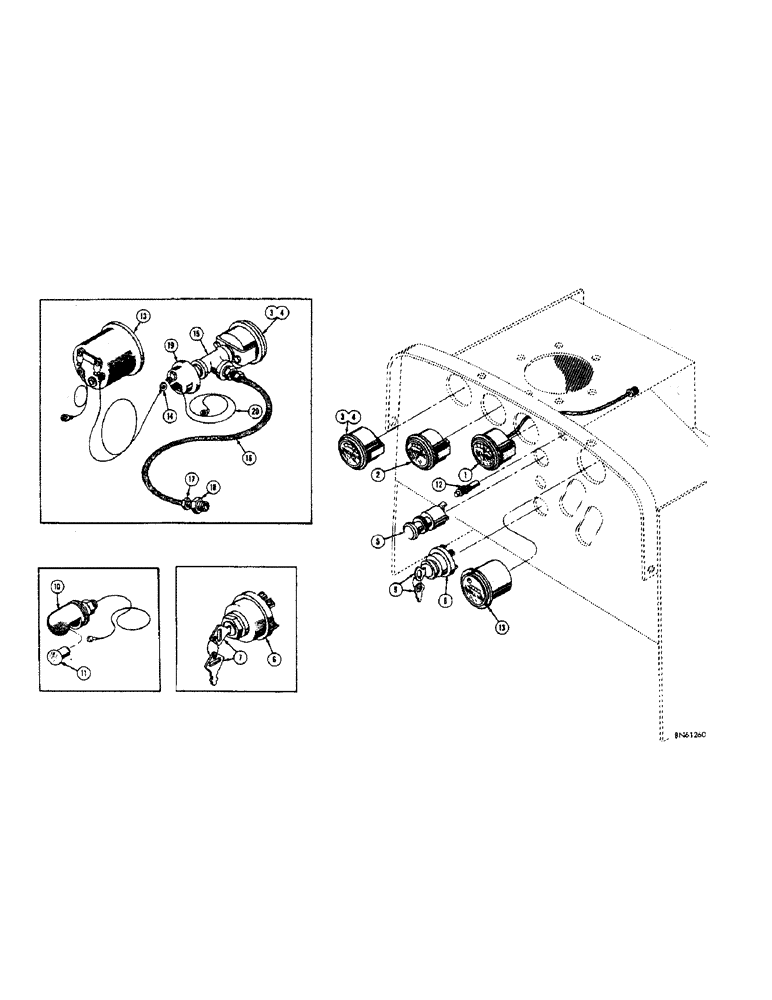

Запчасти Case 310F (082[1]) - INSTRUMENT PANEL (05) - UPPERSTRUCTURE CHASSIS

1

11284

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

D26015

FITTING

ADAPTER - temperature gauge heat bulb (Not shown)

1шт.

2

10860

X

AMMETER - when stock is exhausted order R18748

1шт.

R18748

AMMETER

- see 10860

1шт.

3

D22853

GAUGE

- oil pressure (Diesel models only)

1шт.

4

D26894

X

GAUGE - oil pressure (Gas models only)

1шт.

5

R22699

X

SWITCH - light

1шт.

6

D29292

SWITCH - electrical (Diesel models only)

1шт.

7

A20346

KEY

- switch

2шт.

8

A11373

SWITCH

- ignition & starter (Gas models only)

1шт.

9

A20346

KEY

- ignition switch

1шт.

10

D26513

LIGHT - dash

1шт.

11

D26704

X

BULB - dash light (Mfr's #57)

1шт.

12

D23834

HOLDER

- fuse

2шт.

223-25

FUSE,25 Amp, Type 3AG

- AGC, 25 amp. (1/4" dia. x 1-1/4" long)

1шт.

13

33481

X

METER - engine hour

1шт.

14

54772R2

TERMINAL CONNECTOR

TERMINAL - eyelet type, hour meter and pressure switch

3шт.

15

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

16

D29789

X

LINE - oil pressure, copper

1шт.

17

37388

SPRING

NUT - tube, brass

2шт.

18

37389

SPRING

CONNECTOR - tube, brass

2шт.

19

D28798

SWITCH

- pressure, oil (Hour meter)

1шт.

20

D28797

ELECTRICAL WIRE

WIRE - pressure switch

1шт.
