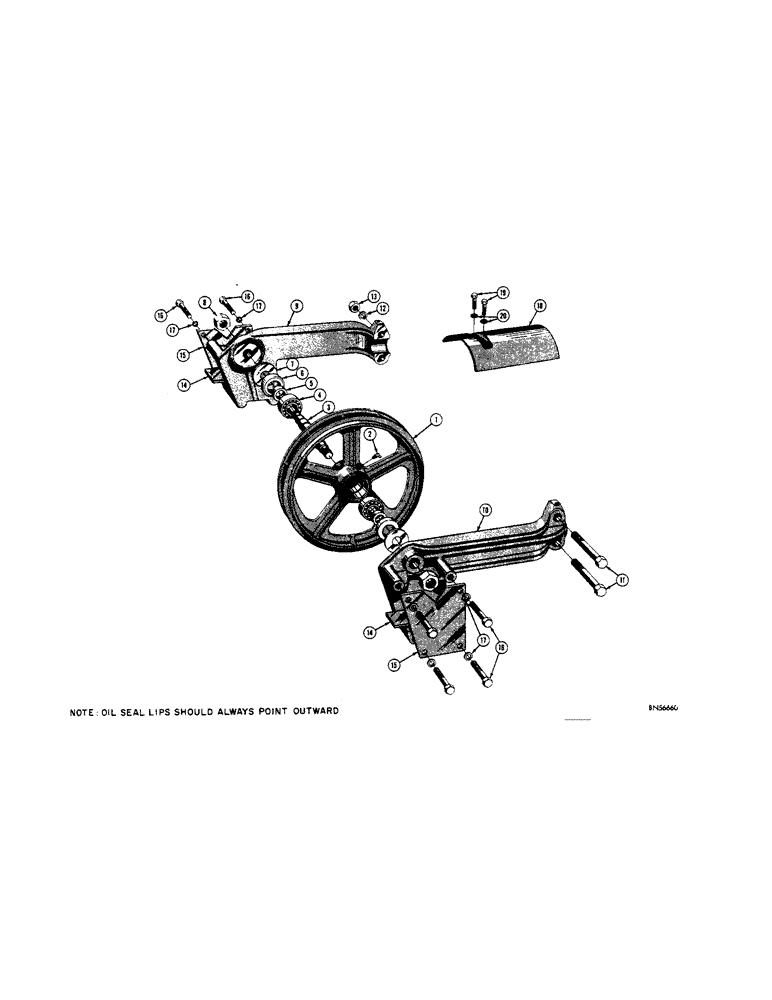

Запчасти Case 310F (136) - IDLER WHEEL, USED ON TRACTORS PRIOR TO SERIAL NUMBER 3021102 (04) - UNDERCARRIAGE

1

D29967

WHEEL

HUB - idler wheel

2шт.

2

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, 67-1/2 degrees (1/4" NPT)

4шт.

D11665

KIT

- service

2шт.

3

32068

SHAFT

- idler wheel

1шт.

4

O1720AB

BEARING

- ball

2шт.

5

D29133

SPACER

- bearing

2шт.

6

D29138

OIL SEAL

SEAL - oil, 4 lip

2шт.

7

D29134

SHIELD

- bearing

2шт.

8

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

D20102

BRACKET - idler wheel

2шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - idler wheel, R.H.

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - idler wheel, L.H.

1шт.

11

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8" - 18 NF x 3-3/4"

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

14

31797

PLATE

- wear

4шт.

15

31796

PLATE - box

4шт.

16

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

16шт.

17

92-8

LOCK WASHER,1/2"

16шт.

18

D26698

SHIELD

- sliding, R.H.

1шт.

D26697

SHIELD

- sliding, L.H.

1шт.

19

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2"

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.
