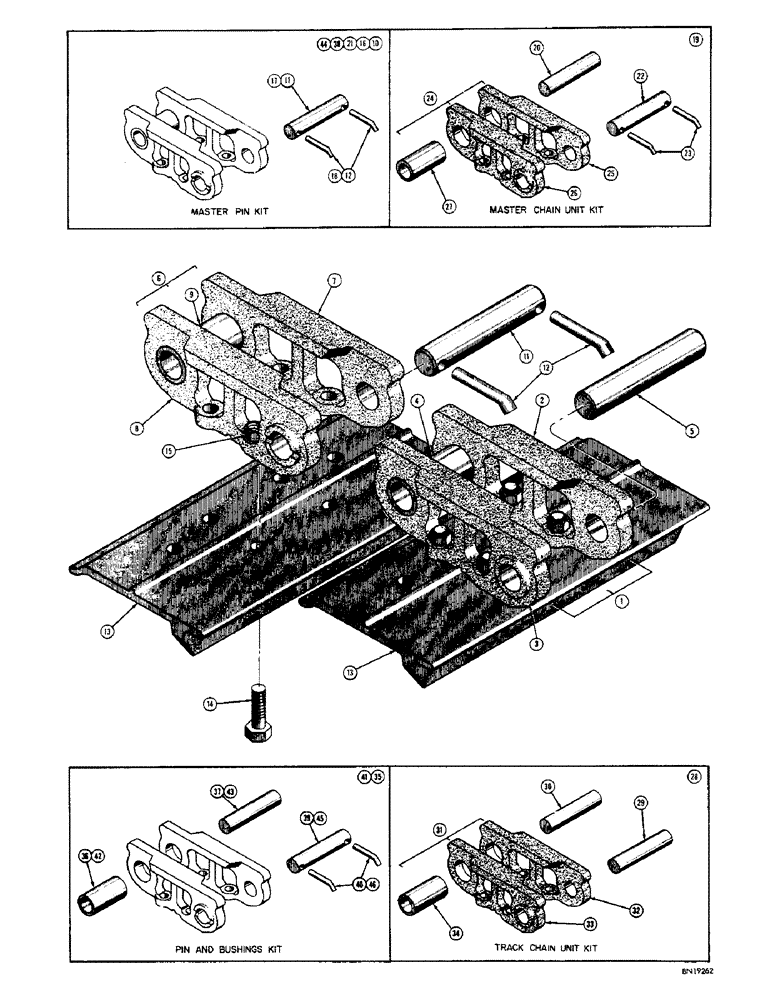

Запчасти Case 310F (126) - TRACK CHAIN (04) - UNDERCARRIAGE

NLS

NO LONGER SERVICED

CHAIN - 15 unit, complete (4 roller track only)

2шт.

5482

CHAIN - 16 unit, complete (4 and 5 roller track)

2шт.

D11810

CHAIN - 17 unit, complete (5 roller track only)

2шт.

1

34571

KIT

UNIT - track chain (See D21014)

16шт.

2

30638

X

LINK - track chain, R.H. (See D21014)

1шт.

3

R41049

DRAG LINK

LINK - track chain, L.H. (See D21014)

1шт.

4

NLS

NO LONGER SERVICED

- track chain (See D21014)

1шт.

5

32831

PIN

- track, standard (See D21014; also see ref. no. 20 and 43)

16шт.

6

34589

X

UNIT - master (See D21013)

1шт.

7

R41050

LINK

- master, R.H. (See D21013)

1шт.

8

33286

LINK

- master, L.H. (See D21013)

1шт.

9

32830

BUSHING

- track chain (See D21013, D21014 and D21015)

1шт.

10

D21012

PIN

KIT - master pin

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - master

1шт.

12

CASCASCASCASCAS32995

PIN - lock, master pin

2шт.

13

REF

INSTRUCTION

PLATE - track (See Figure 128 for track plates)

66шт.

14

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special (7/16" - 20 NF x 1-1/2")

264шт.

15

D29712

SPECIAL NUT

- hex., special (7/16" - 20 NF)

264шт.

16

D21012

PIN

KIT - master pin

4шт.

17

NSS

NOT SOLD SEPARAT

PIN - master, kit

1шт.

18

CASCASCASCASCAS32995

PIN - lock, master pin, kit

2шт.

19

D21013

KIT

- track chain master unit

4шт.

20

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

21

D21012

PIN

KIT - master pin, chain unit

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - master, chain unit kit

1шт.

23

CASCASCASCASCAS32995

PIN - lock, master pin, chain unit kit

2шт.

24

34589

X

UNIT - master, chain unit kit

1шт.

25

R41050

LINK

- master, R.H., chain unit kit

1шт.

26

33286

LINK

- master, L.H., chain unit kit

1шт.

27

NLS

NO LONGER SERVICED

- track chain, master unit kit

1шт.

28

D21014

KIT

- track chain unit, master

62шт.

29

32831

PIN

- track, standard, master chain unit kit

1шт.

30

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

31

34571

KIT

UNIT - track chain, master chain unit kit

1шт.

32

30638

X

LINK - track chain, R.H., master chain unit kit

1шт.

33

R41049

DRAG LINK

LINK - track chain, L.H., master chain unit kit

1шт.

34

32830

BUSHING

- track chain, master unit kit

1шт.

35

D11883

KIT - pins and bushings (4 - roller track - see D11884)

1шт.

36

NLS

NO LONGER SERVICED

- track chain, pins kit

62шт.

37

32836

PIN

- track, service (.003" oversize), bushings kit

58шт.

38

D21012

PIN

KIT - master pin, bushings

4шт.

39

NSS

NOT SOLD SEPARAT

PIN - master, bushings kit

1шт.

40

CASCASCASCASCAS32995

PIN - lock, master pin, bushings kit

2шт.

41

D11884

KIT

- pins and bushings (5 roller track - see D11883)

1шт.

42

32830

BUSHING

- track chain, pins kit

66шт.

43

32836

PIN

- track, service (.003" oversize), bushings kit

62шт.

44

D21012

PIN

KIT - master pin, bushings kit

4шт.

45

NSS

NOT SOLD SEPARAT

PIN - master, bushings kit

1шт.

46

CASCASCASCASCAS32995

PIN - lock, master pin, bushings kit

2шт.
