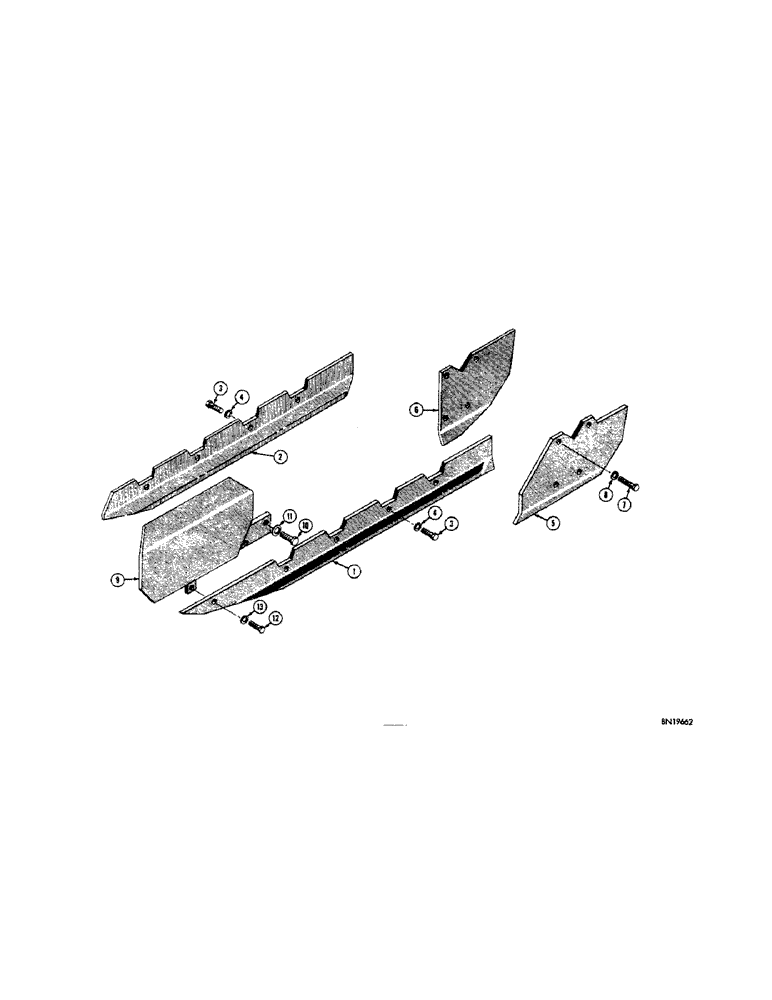

Запчасти Case 310F (124) - ROCK GUARD (4 ROLLER TRACK) (04) - UNDERCARRIAGE

1

D29077

ROCK GUARD - outer, R.H.

1шт.

D29078

ROCK GUARD - outer, L.H.

1шт.

2

D29079

ROCK GUARD - inner, R.H.

1шт.

D29080

ROCK GUARD - inner, L.H.

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

16шт.

4

92-8

LOCK WASHER,1/2"

16шт.

5

D29067

ROCK GUARD - outer, idler (R.H.)

1шт.

D29068

ROCK GUARD - outer, idler (L.H.)

1шт.

6

33892

ROCK GUARD - inner, idler (R.H.)

1шт.

33893

ROCK GUARD - inner, idler (L.H.)

1шт.

7

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

D29071

ROCK GUARD - sprocket, R.H.

1шт.

D29072

ROCK GUARD - sprocket, L.H.

1шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

12

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.
