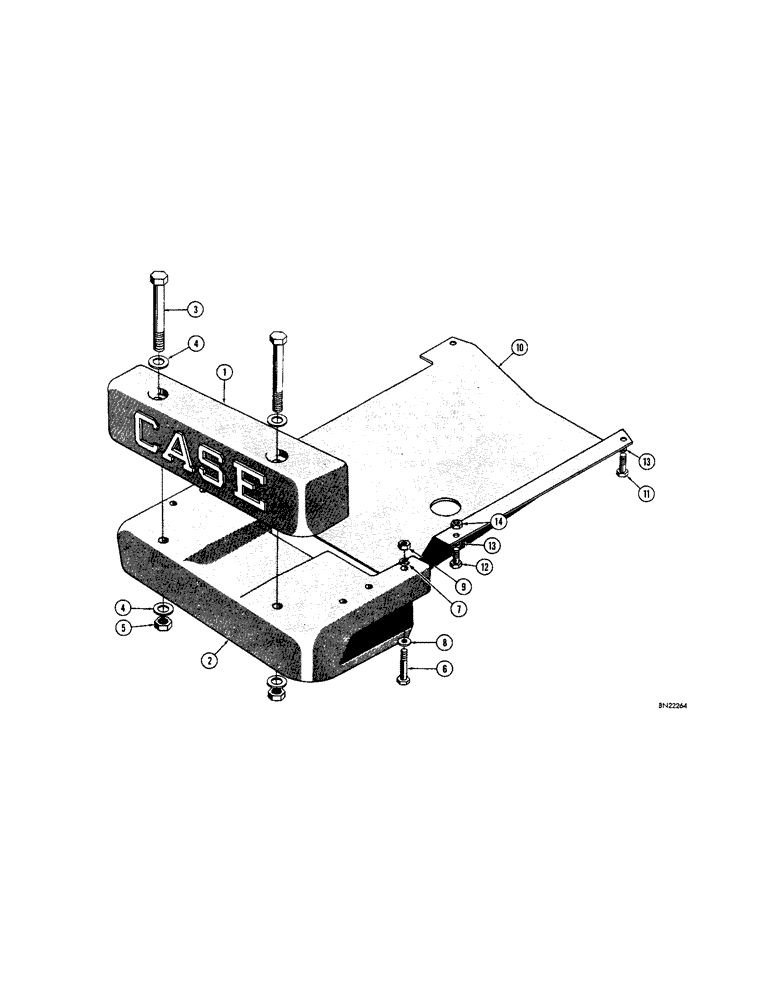

Запчасти Case 310F (122[1]) - FRONT COUNTERWEIGHT AND SPECIAL CRANKCASE GUARD (04) - UNDERCARRIAGE

1

R26023

WEIGHT

COUNTERWEIGHT - upper

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower

1шт.

3

13-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

Hex, 5/8"-11 x 7-3/4", G5

2шт.

4

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick)

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock (5/8" - 11 NC)

2шт.

6

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

6шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

10

D34006

GUARD - crankcase

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.
