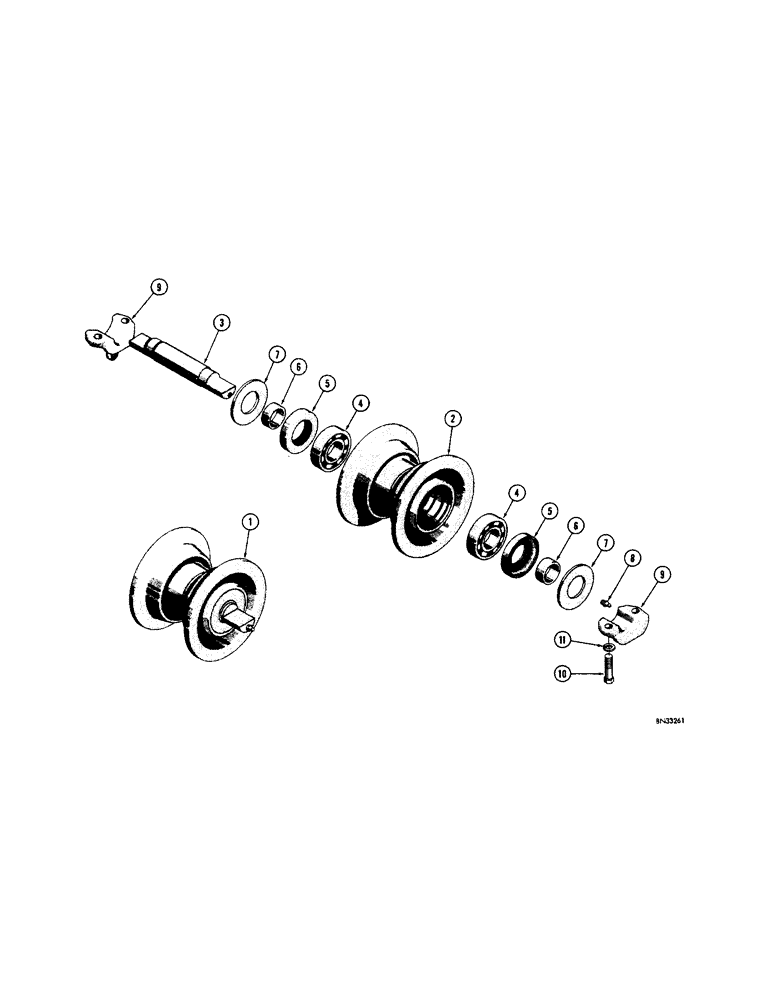

Запчасти Case 310F (120) - TRACK ROLLER (04) - UNDERCARRIAGE

1

D29132

X

ROLLER - track, complete (When stock is exhausted, order D31698) See D29137 heavy duty track roller

10шт.

2

32076

BEARING, ROLLER

HUB - track roller (Uses shield with 3-9/32" O.D.)

1шт.

D11583

KIT

- service, D29132 track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - oil, 4 lip

2шт.

6

D29133

SPACER

- bearing (1-1/4" I.D. x 1-3/4" O.D.)

2шт.

7

D29134

SHIELD

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

1

D31698

ROLLER

- track, complete (See D29132; also see D29137 heavy duty track roller)

10шт.

2

D31697

BEARING, ROLLER

HUB - track roller (Uses oil seal with 3-1/2" O.D. shield)

1шт.

D12201

KIT

- service, D31698 track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

175192A1

BRACKET

- ball

2шт.

5

D31322

SEAL

- oil

2шт.

6

D31695

SPACER

- bearing (1-1/4" I.D. x 2-1/16" O.D.)

2шт.

7

(Not used)

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

51200225

CAP

BOX - track roller

20шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

40шт.

11

92-8

LOCK WASHER,1/2"

40шт.
