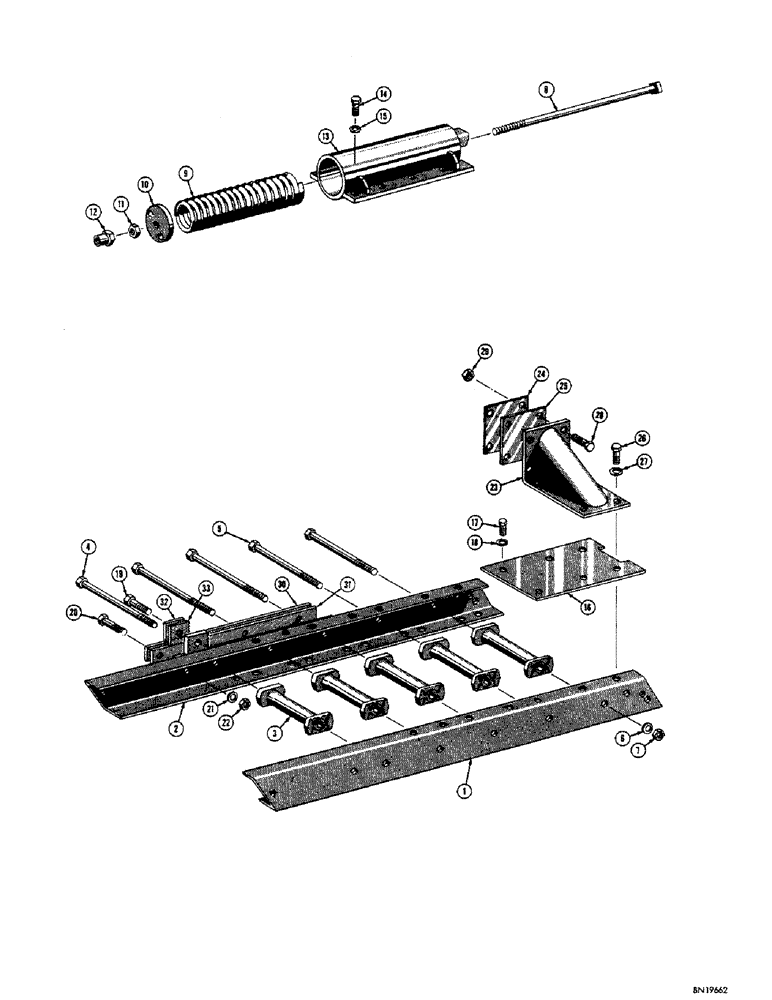

Запчасти Case 310F (118) - TRACK FRAME AND RECOIL SPRING (5 ROLLER TRACK) (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
D29052
CHANNEL - track, L.H. outer
1шт.
D29051
CHANNEL - track, R.H. outer
1шт.
2
D29050
CHANNEL - track, L.H. inner
1шт.
D29049
CHANNEL - track, R.H. inner
1шт.
3
NLS
NO LONGER SERVICED
SPACER - track channel
10шт.
4
14-12200
BOLT,Hex, 3/4" - 16 x 12-1/2", Gr 5
HHCS - 3/4" - 16 NF x 12-1/2"
6шт.
5
D23459
HHCS - 3/4" - 16 NF x 11-1/8"
4шт.
6
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
10шт.
7
25-1112
NUT,3/4"-16, G5
- hex. (3/4" - 16 NF)
10шт.
D29056
X
SPRING - recoil, complete
2шт.
8
D20845
ADJUSTMENT SCREW
- track adjusting
1шт.
9
D26084
SPRING
- recoil
1шт.
10
D20844
NUT
- tension adjusting
1шт.
11
25-1416
NUT,Jam, 1"-8, G5
- hex., jam (1" - 8 NC)
1шт.
12
D20843
NUT,1" - 8
- track adjusting
1шт.
13
D29057
HOUSING - recoil spring
1шт.
14
14-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
12шт.
16
D29062
PAN - mud
2шт.
17
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1"
4шт.
18
92-8
LOCK WASHER,1/2"
4шт.
19
13-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
2шт.
20
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
2шт.
21
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
22
25-1012
NUT,3/4"-10, G5
4шт.
23
D29059
BRACKET - mounting, track frame
2шт.
24
D29758
SHIM,.1875" Thk
Mounting bracket .1875" Thk
1шт.
25
D29759
SHIM,.0747" Thk
Mounting bracket .0747" Thk
1шт.
26
14-1228
BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5
HHCS - 3/4" - 16 NF x 1-3/4"
8шт.
27
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
28
14-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5
HHCS - 3/4" - 16 NF x 3"
8шт.
29
231-46112
LOCK NUT,3/4"-16, GB
NUT - lock (3/4" - 16 NF)
8шт.
30
D30050
SHIM,.0747" Thk
Track channel to side plate .0747" Thk
1шт.
31
D30051
SHIM,.1875" Thk
Track channel to side plate .1875" Thk
1шт.
32
D30052
SHIM,.0747" Thk
Track channel to side plate .0747" Thk
1шт.
33
D30053
SHIM,.1875" Thk
Track channel to side plate .1875" Thk
1шт.
Выбрано товаров: 36
