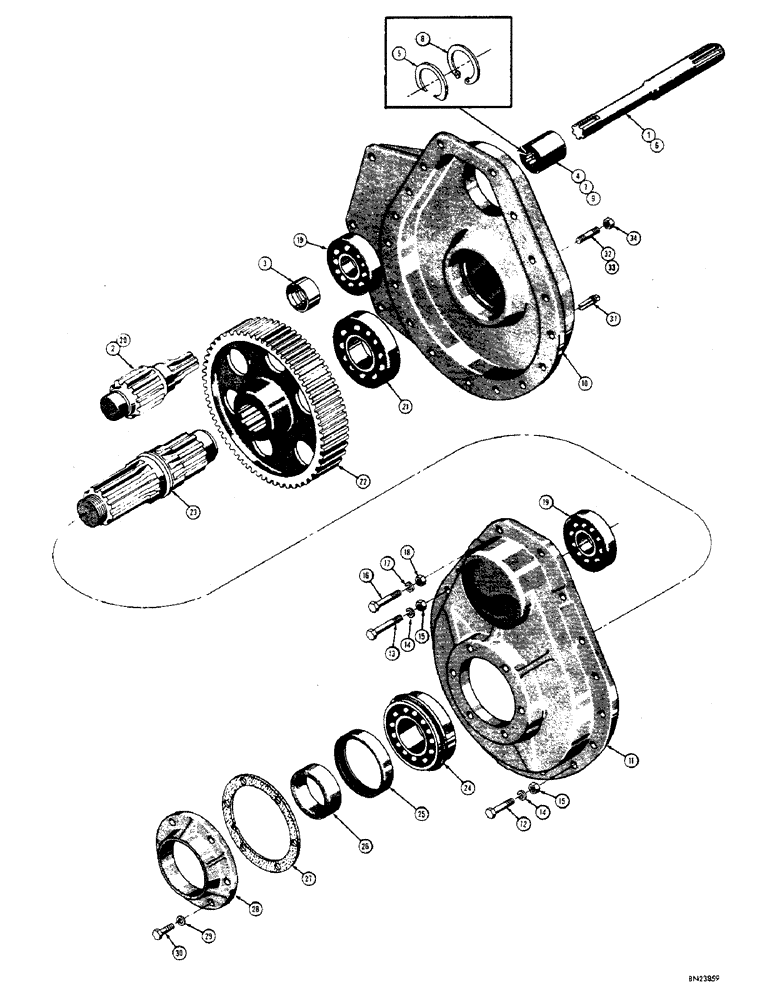

Запчасти Case 310F (110) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

51200025

SHAFT

- axle, final drive (48" gauge tractor) 13-3/16" (Used up to tractor SN 3019223) See D12151 and D31519

2шт.

D12151

CENTER AXLE

KIT - axle shaft (May be used to convert 48" gauge tractors prior to tractor SN 3019223 to use the snap ring type coupling)

2шт.

1

D31519

SHAFT

- axle, final drive (48" gauge tractor) 13-1/4" (Used on tractor SN 3019223 and after)

1шт.

2

D31514

SHAFT

PINION - final drive (Used on all 48" gauge tractors SN 3019223 and after) See 11832

1шт.

3

D32723

SPACER

- final drive (48" gauge tractors only)

1шт.

4

D32730

COUPLING

- final drive (48" gauge tractors only, tractor SN 3020278 to 3020298 and 3020349 and after) See 11831, D31516 and O8897AB

1шт.

5

D32722

RING, SNAP

RING - retaining, D32730 coupling only

2шт.

6

32635

SHAFT - axle, final drive (36" gauge tractor) 7-9/32"

2шт.

11830-420

SHAFT - axle, final drive (42" gauge tractor) 10-3/32"

2шт.

11830-600

SHAFT - axle, final drive (60" gauge tractor) 19-3/16"

2шт.

11830-720

SHAFT - axle, final drive (72" gauge tractor) 25-3/16"

2шт.

7

51200026

COUPLING

- final drive (42" gauge and wider tractors up to tractor SN 3019223; used on all 42" gauge and wider tractors except 48" gauge tractors SN 3019223 and after) See D31516, O8897AB, D32730, D32722 and D12151

2шт.

D31516

X

COUPLING - final drive (48" gauge tractors only, tractor SN 3019223 to 3020278 and 3020298 to 3020349) See 11831, D32730, D32722, D32723 and D12151 (For service use D32730 and D32723)

2шт.

8

O8897AB

X

RING - retaining, D31516 coupling only

2шт.

9

32634

COUPLING

- final drive (36" gauge tractor)

2шт.

10

D29737

HOUSING - final drive, inner (L.H.)

1шт.

D29736

HOUSING - final drive, inner (R.H.)

1шт.

11

D24658

HOUSING

- final drive, outer

2шт.

12

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

18шт.

13

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

10шт.

14

92-7

LOCK WASHER,7/16"

28шт.

15

25-107

NUT,7/16"-14, G5

- hex (7/16" - 14 NC)

28шт.

16

D24688

BOLT

BOLT - body fit (1/2" - 13 NC x 2-1/8")

6шт.

17

92-8

LOCK WASHER,1/2"

6шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

19

40002

BALL BEARING

- ball, final drive pinion

4шт.

20

51200027

SHAFT

PINION - final drive (Used on all tractors up to tractor SN 3019223; used on all tractors except 48" gauge tractors SN 3019223 and after) See D31514 and D12151

2шт.

21

40003

BEARING

- ball, final driveshaft (Inner)

2шт.

22

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

23

CAS11853

SHAFT

- final drive

2шт.

24

40039

HINGE

BEARING - ball, final driveshaft (Outer)

2шт.

25

D29517

SEAL

- oil, final driveshaft

2шт.

26

51200024

SPACER

- final driveshaft

2шт.

27

CAS11828

GASKET

- seal retainer

2шт.

28

11827

RETAINER

- seal, final driveshaft

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

30

92-6

LOCK WASHER,3/8"

12шт.

31

D21396

PLUG, DRAIN

PLUG - magnetic, countersunk head (1/2" NPT)

4шт.

32

R29874

STUD

- mounting, final drive (42" gauge and wider tractors)

16шт.

33

46509

STUD - mounting, final drive (36" gauge tractor)

16шт.

34

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF x 31/32" thick) 42" gauge and wider tractors

16шт.

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF) 36" gauge tractor

16шт.
