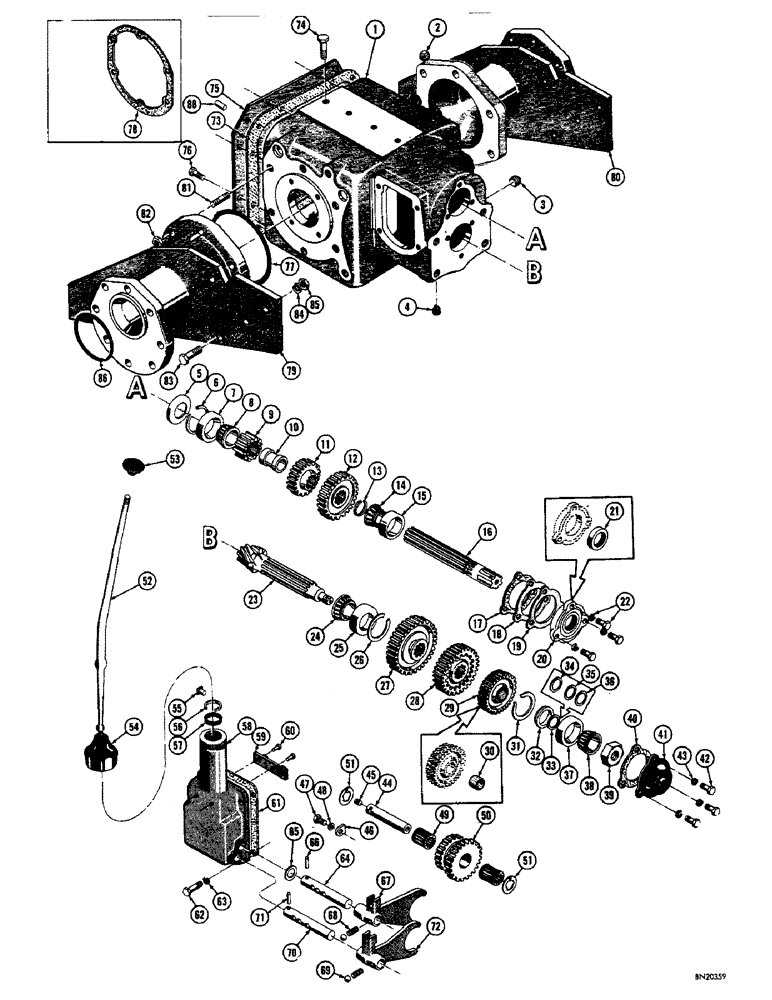

Запчасти Case 310F (106) - TRANSMISSION - DIFFERENTIAL AND FINAL DRIVE SPACERS (03) - TRANSMISSION

D29500

X

TRANSMISSION AND DIFFERENTIAL - complete

1шт.

D29500 transmission and differential also includes items listed on Figure104.

1шт.

1

D29527

CASE - transmission (Includes ref. no. 26) Use D32570

1шт.

D32570

X

CASE - transmission (Includes ref. no. 2, 3, 4, 26 and 51)

1шт.

2

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, transmission filler (1" NPT square head)

1шт.

3

221-834

X

PLUG - pipe, oil level (1/2" NPT extended square head)

1шт.

4

D23217

X

PLUG - magnetic, drain

2шт.

5

11371

CUP ASSY.

CUP - oil, main shaft rear bearing

1шт.

6

11453

TAPERED BEARING

SNAP RING - main shaft rear bearing

1шт.

7

O4056TS

CUP

- bearing

1шт.

8

VT3404

X

CONE - bearing

1шт.

9

11363

BALL BEARING

GEAR - main shaft, low and reverse

1шт.

10

35130

SPACER

- main shaft gear

1шт.

11

11365

GEAR

- main shaft, second speed

1шт.

12

11366

GEAR

- main shaft, constant mesh

1шт.

13

VT2111

X

SNAP RING - main shaft front bearing

1шт.

14

VT3404

X

CONE - bearing

1шт.

15

O4056TS

CUP

- bearing

1шт.

16

D33873

MAIN SHAFT

1шт.

D33873

MAIN SHAFT

SHAFT - main

1шт.

17

51200023

GASKET

- main shaft front bearing cap

1шт.

18

11368

SHIM

- main shaft front bearing cap (.005" thick)

1шт.

19

11367

SHIM

- main shaft front bearing (.010" thick)

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing (Not shown) .020" Thk

1шт.

20

11369

X

CAP - main shaft front bearing (Use D33872)

1шт.

D33872

CAP ASSY.

CAP - main shaft front bearing

1шт.

21

11370

OIL RESERVOIR

SEAL - oil, bearing cap

1шт.

22

23016

CAP

HHCS AND LOCKWASHER - 3/8" - 16 NC x 1"

3шт.

23

113-72

BOLT,Hex, 1/4" - 20 x 12-1/2", Gr 5

COUNTERSHAFT AND BEVEL PINION - (Included with differential and drum assembly)

1шт.

24

40384

ROLLER BEARING

CONE - bearing

1шт.

25

40385

BEARING,3.375" OD x 0.9375"

CUP - bearing

1шт.

26

11451

RING, SNAP

SNAP RING - countershaft rear bearing

1шт.

27

11373

BALL BEARING

- countershaft, first and reverse

1шт.

28

11374

GEAR

- sliding, second and third

1шт.

28

11374GV

DISC

- sliding, second and third

1шт.

29

11375

GEAR

AND BUSHING - third

1шт.

30

11376

BUSHING

- countershaft third gear

1шт.

31

101-21250

SNAP RING,#250, 2.673", Int

- countershaft front bearing

1шт.

32

11378

BELLEVILLE WASHER

- retaining, countershaft third gear

1шт.

33

D27621

SPACER

WASHER - spacer, hardened (1-1/32" I.D. x 1-7/16" O.D. x 3/64" thick)

1шт.

34

D27618

SHIM,.004" Thk

Steel .004" Thk

2шт.

35

D27619

SHIM,.007" Thk

Steel .007" Thk

2шт.

36

D27620

SHIM,.010" Thk

Steel .010" Thk

5шт.

37

O4056TS

CUP

- bearing

1шт.

38

W9651S

CUP ASSY.

CONE - bearing

1шт.

39

11380

NUT

- adjusting, countershaft front bearing

1шт.

40

51200023

GASKET

- countershaft front bearing cap

1шт.

41

11381

CAP

- countershaft rear bearing

1шт.

42

D20542

X

HHCS - bearing cap

3шт.

43

92-6

LOCK WASHER,3/8"

3шт.

44

34592

SHAFT

ASSEMBLY - reverse idler

1шт.

45

34594

X

PLUG - pipe, slotted headless

1шт.

46

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

47

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Reverse idler shaft lock Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

48

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER - Shakeproof lock, internal tooth (3/8")

1шт.

49

11450

TAPERED BEARING

BEARING - needle, reverse idler

2шт.

50

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

51

D29626

WASHER

- thrust, reverse idler gear

2шт.

D28239

CONTROL ASSEMBLY - gear shift, complete

1шт.

52

37238

LEVER

- gear shift

1шт.

53

O3501AB

X

KNOB - gear shift lever

1шт.

54

VT2017

X

COVER - dust, gear shift lever

1шт.

55

31365

PIN

- stake, gear shift lever

1шт.

56

11454

RING, SNAP

SNAP RING - gear shift lever

1шт.

57

CAS11393

WASHER

- pivot, gear shift lever

1шт.

58

NLS

NO LONGER SERVICED

COVER AND GUIDE ASSEMBLY

1шт.

59

11389

PLATE

- guide, control cover

1шт.

60

45-414

RIVET,But Hd, 1/4" x 7/8"

- button head, guide plate to control cover (1/4" x 7/8")

2шт.

61

11391

GASKET

- control cover

1шт.

62

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

63

92-6

LOCK WASHER,3/8"

4шт.

64

11396

ROD

- shift, first and reverse

1шт.

65

D28299

WASHER

- spacer, first and reverse shift fork

5шт.

66

11398

PIN

- lock, first and reverse shift rod (Short)

1шт.

67

11400

FORK TEDDER

FORK - shift, first and reverse

1шт.

68

11403

SPRING

- mesh lock, shift fork

2шт.

69

211-11

BALL,3/8" Dia

- mesh lock, shift fork (.) 3/8" Dia

2шт.

70

11397

ROD

- shift, second and third

1шт.

71

11399

PIN

- lock, second and third shift rod (Long)

1шт.

72

NLS

NO LONGER SERVICED

FORK - shift, second and third

1шт.

73

11429

GASKET

- transmission cover plate

1шт.

74

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16" - 12 NC x 1"

4шт.

75

D21185

PLATE

- cover, transmission

1шт.

76

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(Apply Loctite to these bolts before assembling) See Ref. no. 87 Hex, 7/16"-14 x 1 1/4", G5, Full Thd

11шт.

77

D27642

X

SEAL - "O" ring, final drive spacer to transmission case (48" gauge tractors only)

2шт.

78

D29309

GASKET

- final drive spacer to transmission case (36", 42", 60", and 72" gauge tractors)

2шт.

79

D29728

SPACER - final drive, R.H. (48" gauge tractor)

1шт.

32658

SPACER - final drive, R.H. (36" gauge tractor)

1шт.

D29788

SEAT

SPACER - final drive, R.H. (42" gauge tractor)

1шт.

D29792

X

SPACER - final drive, R.H. (60" gauge tractor)

1шт.

D29794

X

SPACER - final drive, R.H. (72" gauge tractor)

1шт.

80

D29729

SPACER - final drive, L.H. (48" gauge tractor)

1шт.

32659

ROLLER

SPACER - final drive, L.H. (36" gauge tractor)

1шт.

D29787

SPACER - final drive, L.H. (42" gauge tractor)

1шт.

D29793

SPACER

- final drive, L.H. (60" gauge tractor)

1шт.

D29795

X

SPACER - final drive, L.H. (72" gauge tractor)

1шт.

81

46505

STUD

- final drive spacer to transmission (9/16" x 2-1/2")

12шт.

82

131-675

LOCK NUT,9/16"-18, GB

NUT - lock (9/16" - 18 NF)

12шт.

83

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4"

8шт.

84

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

85

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NC)

8шт.

86

O8849AB

X

SEAL - "O" ring, final drive spacer outer flange

2шт.

87

B17068

ADHESIVE

LOCTITE - 2CC tube (Not illustrated)

1шт.

88

49882

PIN

- dowel (If used)

4шт.
