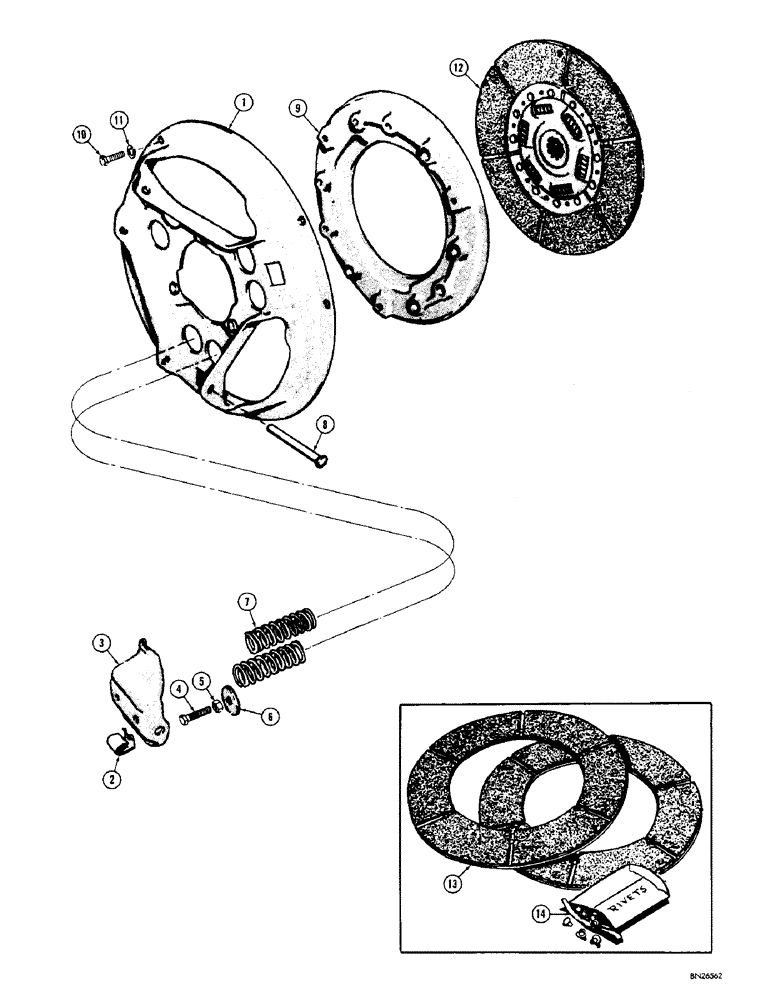

Запчасти Case 310F (102) - CLUTCH (03) - TRANSMISSION

G45790

CLUTCH

PLATE - pressure, complete (10" clutch)

1шт.

1

G47178

X

HUB - pressure

1шт.

2

G46061

CLIP

- lever return

3шт.

3

G47028

LEVER

- clutch

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - hex., jam (Adjusting screw)

3шт.

6

G49048

WASHER

- adjusting screw

3шт.

7

G47027

SPRING

- lever (Color code - light green)

6шт.

8

G47029

PIN

- pivot

3шт.

9

G4508

X

PLATE - pressure

1шт.

10

G49026

BOLT - pressure plate to flywheel (3/8" - 16 NC x 1-1/4")

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

G45791

PLATE ASSY.

PLATE - driven, with facings (10" clutch)

1шт.

13

G37099

KIT - clutch facing

1шт.

14

G49007

RIVET - clutch facing

24шт.
