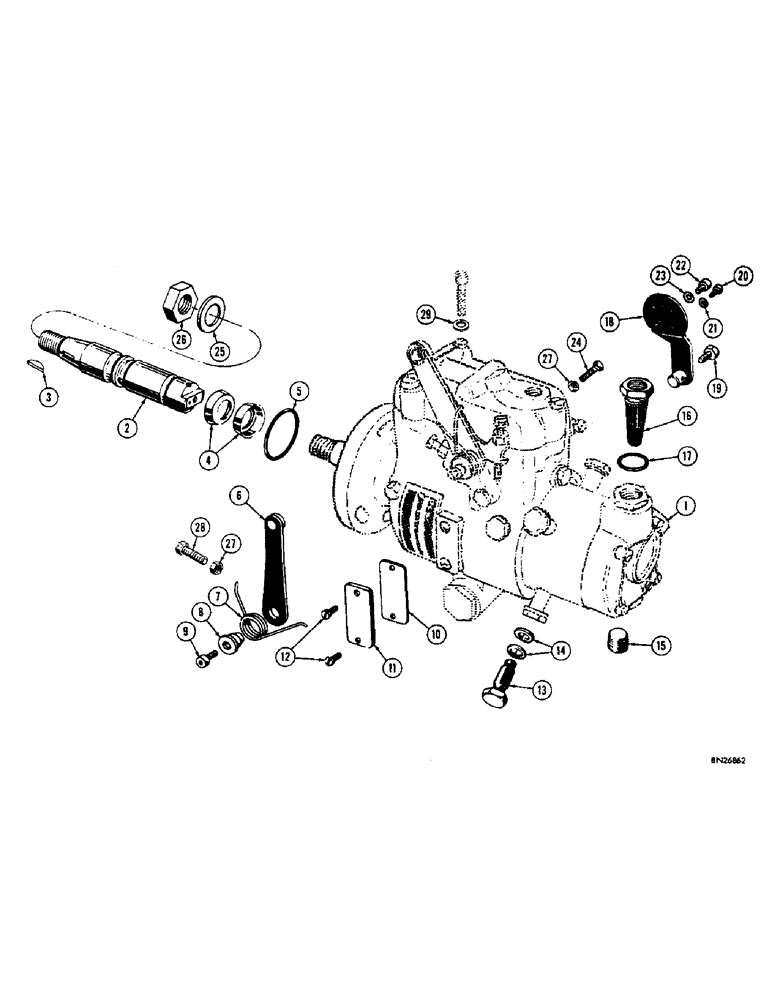

Запчасти Case 310F (138) - FUEL INJECTION PUMP (02) - FUEL SYSTEM

1

A35779

PUMP, FUEL INJECTION

PUMP - fuel injection

1шт.

2

A49082

SHAFT - drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- driveshaft

2шт.

5

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

6

G45338

ARM

- throttle

1шт.

7

G48505

SPRING

- throttle arm

1шт.

8

G49621

RETAINER

- spring, throttle arm

1шт.

9

G49079

SET SCREW

SCREW - retaining, throttle arm

1шт.

10

NLS

NO LONGER SERVICED

- timing window cover

2шт.

11

G46330

COVER

- timing window

2шт.

12

73514

SCREW

- timing window cover

4шт.

13

73613

SCREW

- connector, fuel line

4шт.

14

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw, fuel line

8шт.

15

73627

X

PLUG - pipe, end plate

1шт.

16

CAS73671

FILTER, ELEMENT

FILTER - cap

1шт.

17

51200280

SEAL

- filter cap

1шт.

18

G45337

ARM

- shut-off

1шт.

19

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

- fitting, shut-off arm

1шт.

20

73646

SCREW

- positioning, shut-off arm

1шт.

21

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - lock, shut-off arm positioning screw

1шт.

22

73670

SCREW

- retaining, shut-off arm

1шт.

23

73630

LOCK WASHER

WASHER - retaining, shut-off arm

1шт.

24

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

25

G49081

WASHER

- lock, driveshaft nut

1шт.

26

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex., jam (9/16" - 18 NF)

1шт.

27

51200274

NUT

- high and low idle and shut-off adjusting screw

4шт.

28

73668

SCREW - shut-off and low idle adjusting

3шт.

29

73630

LOCK WASHER

WASHER - retaining, cover screw

3шт.
