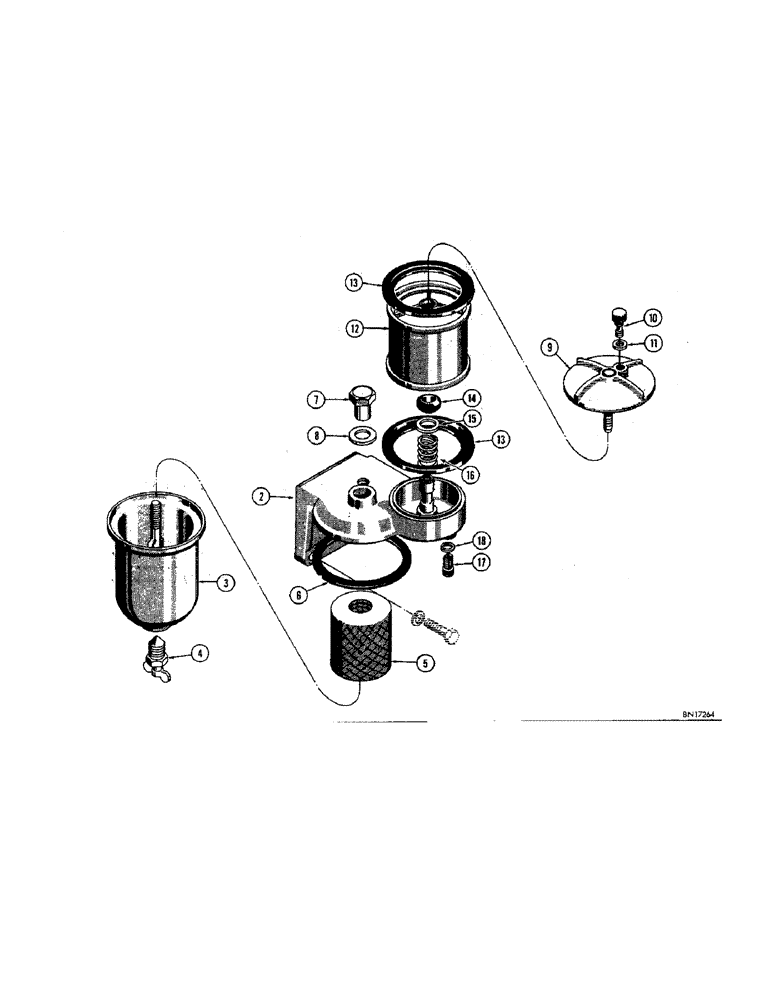

Запчасти Case 310F (060) - FUEL FILTERS - DIESEL, USED ON TRACTORS SERIAL NUMBER (02) - FUEL SYSTEM

1

A35735

FILTER

- fuel, dual assembly - complete (Not illustrated)

1шт.

2

A35664

HEAD

- fuel filter

1шт.

3

D28085

SHELL

- primary filter

1шт.

4

217-103

COCK, DRAIN

DRAIN COCK - primary filter

1шт.

5

A35863

FILTER, ELEMENT

ELEMENT - primary filter

1шт.

6

O10345AB

X

GASKET -, Serial Range: shell-head

1шт.

7

A21131

NUT

- primary filter, shell to head

1шт.

8

O10344AB

X

GASKET - A21131 nut

1шт.

9

A35672

CAP

- final fuel filter

1шт.

10

A35971

SCREW,1/4" - 20 x 0.695"

- vent

1шт.

11

NLS

NO LONGER SERVICED

GASKET - vent screw

1шт.

12

A35668

FILTER

ELEMENT - final filter

1шт.

13

G46895

GASKET

- element to cap and head

2шт.

14

A35671

GASKET

GASKET -, Serial Range: element-base

1шт.

15

A35670

WASHER

- spring retaining

1шт.

16

A35669

SPRING

1шт.

17

G49080

PLUG

- drain, final filter

1шт.

18

G46886

O-RING

GASKET - drain plug

1шт.

D28023

FILTER - first stage

1шт.
