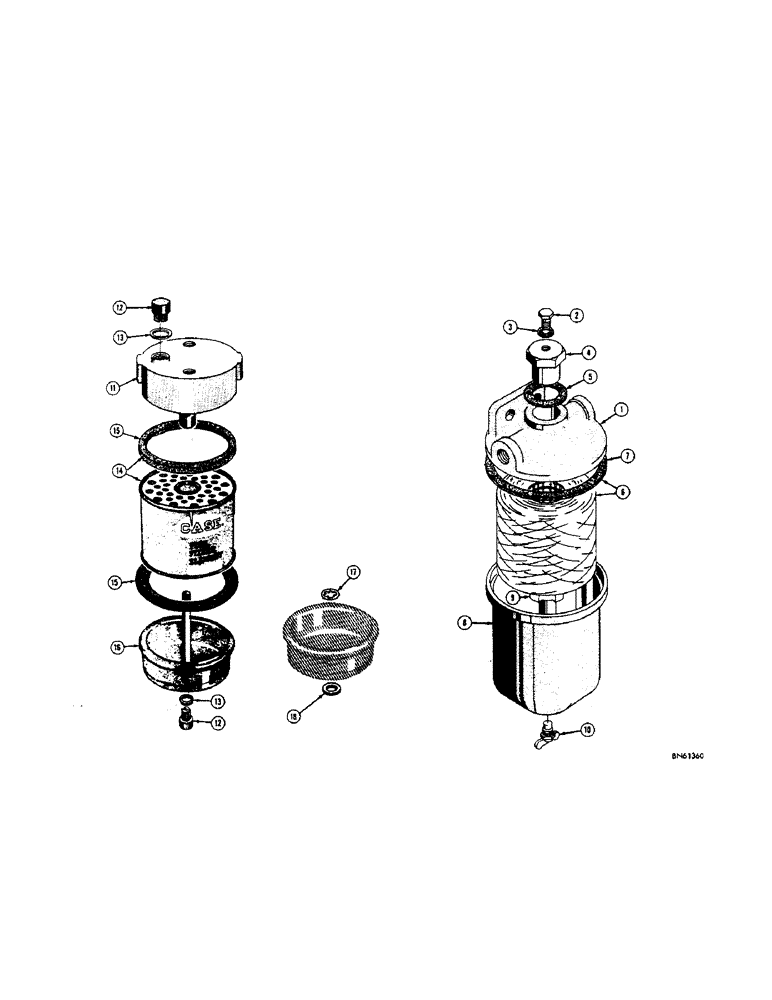

Запчасти Case 310F (060[1]) - FUEL FILTERS - DIESEL USED ON TRACTORS PRIOR TO SERIAL NUMBER 3019601 (02) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

O10342AB

SCREW - air vent

1шт.

3

O10343AB

X

GASKET - screw, air vent

1шт.

4

4773AA

NUT - clamp

1шт.

5

O10344AB

X

GASKET - nut, clamp

1шт.

6

D28024

X

ELEMENT - filter (When stock is exhausted, order A35863)

1шт.

7

O10345AB

X

GASKET - filter body

1шт.

6

A35863

FILTER, ELEMENT

ELEMENT - filter (See D28024)

1шт.

7

O10345AB

X

GASKET - filter body

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE - tube

1шт.

10

VT2784

X

VALVE - drain

1шт.

G45316

FILTER - fuel, second stage

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

12

G49080

PLUG

SCREW - air vent and drain plug

2шт.

13

G46886

O-RING

GASKET - air vent and drain plug screw

2шт.

14

A35668

FILTER

ELEMENT - filter (Includes rubber gaskets)

1шт.

15

G46895

GASKET

- rubber

2шт.

16

G45389

BOWL

- sediment (Includes center stud)

1шт.

17

G49406

RING, LOCKING

RING - retaining, filter stud, Serial Range: -bowl

1шт.

18

G46887

SEAL

GASKET - filter, Serial Range: stud-bowl

1шт.
