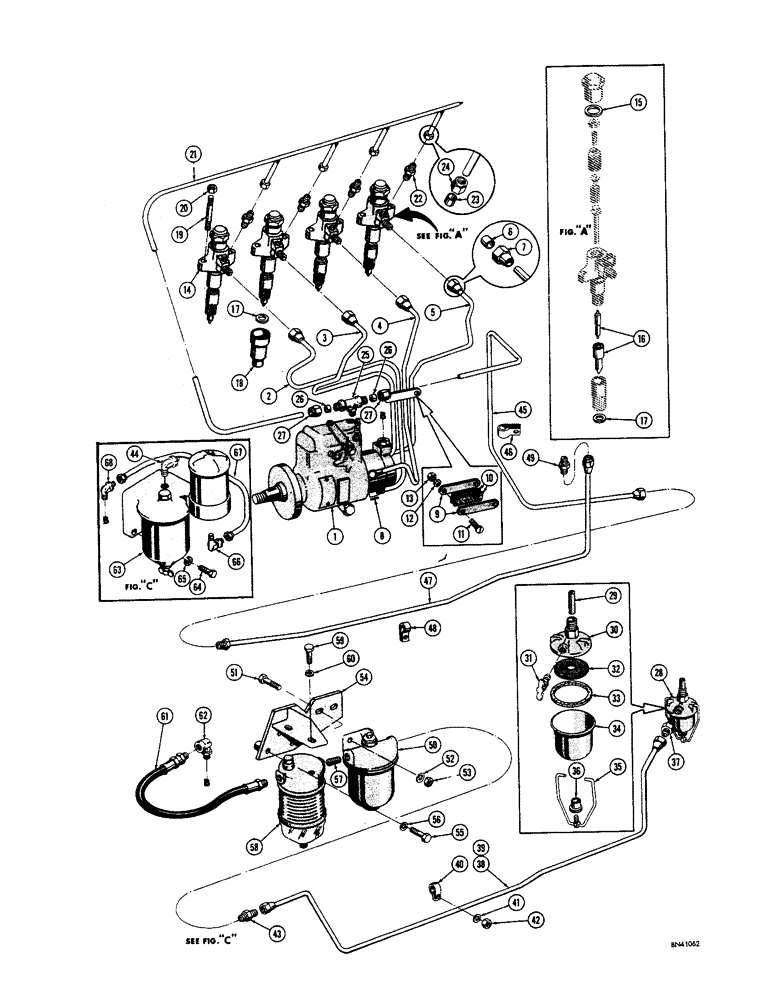

Запчасти Case 310F (056) - DIESEL FUEL INJECTION SYSTEM, USED ON TRACTORS PRIOR TO SN 3019601 (02) - FUEL SYSTEM

1

A35779

PUMP, FUEL INJECTION

PUMP - fuel injection (See Figure 138 for breakdown)

1шт.

2

A35085

NOZZLE CAP

TUBE - injection pump to no. 1 nozzle (Includes ref. no. 6, 7 and 8)

1шт.

3

A35059

TUBE

- injection pump to no. 2 nozzle (Includes ref. no. 6, 7 and 8)

1шт.

4

A35060

TUBE

- injection pump to no. 3 nozzle (Includes ref. no. 6, 7 and 8)

1шт.

5

A35061

TUBE

- injection pump to no. 4 nozzle

1шт.

6

O9967AB

X

SLEEVE - coupling, Serial Range: tube-nozzle

1шт.

7

O9968AB

NUT - coupling, Serial Range: tube-nozzle

1шт.

8

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw, fuel line

2шт.

9

O9970AB

X

CLAMP - injector tube

2шт.

10

O9973AB

X

CUSHION - injector tube clamp

2шт.

11

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- machine, round head (No. 10 - 24 NC x 1")

2шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

129-7

NUT,Hex, #10 - 24

- hex. (No. 10 - 24 NC)

2шт.

14

A49056

NOZZLE CAP

INJECTOR - fuel

4шт.

15

G46885

GASKET

- fuel injector cap

1шт.

16

A35085

NOZZLE CAP

NOZZLE - fuel injector

1шт.

17

G49068

GASKET

- nozzle, fuel injector

1шт.

18

G11724

LINER

- injector nozzle

4шт.

19

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

21

G45385

WASHER

TUBE - leak off (Includes 4 - 222-101 sleeves, 4 - 222-111 nuts, 1 - 222-113 nut and 1 - 222-103 sleeve)

1шт.

22

222-21

FITTING,7/16"-24 x 1/8" NPTF

4шт.

23

222-101

SLEEVE,3/16" Tube

- tube

1шт.

24

222-111

TUBE NUT,7/16" - 24

NUT - tube

1шт.

25

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

- male (5/16" JIC male x 5/16" JIC male x 1/4" NPT male)

1шт.

26

222-103

SLEEVE,5/16" Tube

2шт.

27

222-113

TUBE NUT,9/16"-24

NUT - tube

2шт.

28

33487

STRAINER ELEMENT

STRAINER - fuel

1шт.

29

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

30

41932

COVER

- strainer

1шт.

31

A11200

COCK

VALVE - shut off

1шт.

32

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

33

A11208

GASKET

- bowl

1шт.

34

41933

BOWL

1шт.

35

A11212

BAIL

- bowl

1шт.

36

A11210

ADJUSTER

NUT - cup, bail

1шт.

37

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight (5/16" JIC x 1/8" NPT)

1шт.

38

D29112

TUBE - fuel line, tank to filter (Used on tractors prior to serial number 3019601)

1шт.

39

D31555

TUBE - fuel line, tank to filter (Used on tractor serial number 3019601 and after)

1шт.

40

49832

CLAMP

- fuel line tube

1шт.

41

92-7

LOCK WASHER,7/16"

1шт.

42

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

1шт.

43

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT) Used on tractors prior to serial number 3019601

1шт.

44

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- male, 90 degrees (5/16" JIC x 1/4" NPT) Used on tractor serial number 3019601 and after

1шт.

45

D30034

TUBE

- fuel return, leak-off tube to tank (Front section)

1шт.

46

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- D30034 tube

1шт.

47

D29114

TUBE

- fuel return, leak-off tube to tank (Rear section)

1шт.

48

D29140

CLAMP - tube, return fuel line

1шт.

49

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT)

1шт.

50

D28023

FILTER - fuel, first stage (See Figure 60 for breakdown), used on tractors prior to serial #3019601

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on tractors prior to S/N 3019601 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

diesel fuel injection system 3/8"

2шт.

53

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), diesel fuel injection system

2шт.

54

D22496

BRACKET - mounting, fuel filters, diesel fuel injection system

1шт.

55

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", diesel fuel injection system

3шт.

56

92-5

LOCK WASHER,5/16"

diesel fuel injection system 5/16"

3шт.

57

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8"), diesel fuel injection system

1шт.

58

REFERENCE

SPARE PART

FILTER - fuel, second stage (See Figure 060(1) for breakdown), diesel fuel injection system

1шт.

59

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Diesel fuel injection system Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

60

92-5

LOCK WASHER,5/16"

diesel fuel injection system 5/16"

2шт.

61

D29329

HOSE - fuel line, filter to pump (13" long), diesel fuel injection system

1шт.

62

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- male, 90 degrees (3/8" JIC x 1/4" NPT) Fuel injection pump inlet, diesel fuel injection system

1шт.

63

A35735

FILTER

- fuel, dual stage (See Figure 060(1) for breakdown), used on tractor serial #3019601 and after

1шт.

64

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Used on tractor S/N 3019601 and after Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

65

92-5

LOCK WASHER,5/16"

used on tractor serial #3019601 and after 5/16"

3шт.

66

222-77

ELBOW - male, 90 degrees (3/8" JIC x 1/4" NPT), used on tractor serial #3019601 and after

1шт.

67

A35710

TUBE - fuel line, filter to pump, used on tractor serial #3019601 and after

1шт.

68

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- male, 90 degrees (3/8" JIC x 1/4" NPT), used on tractor serial #3019601 and after

1шт.
