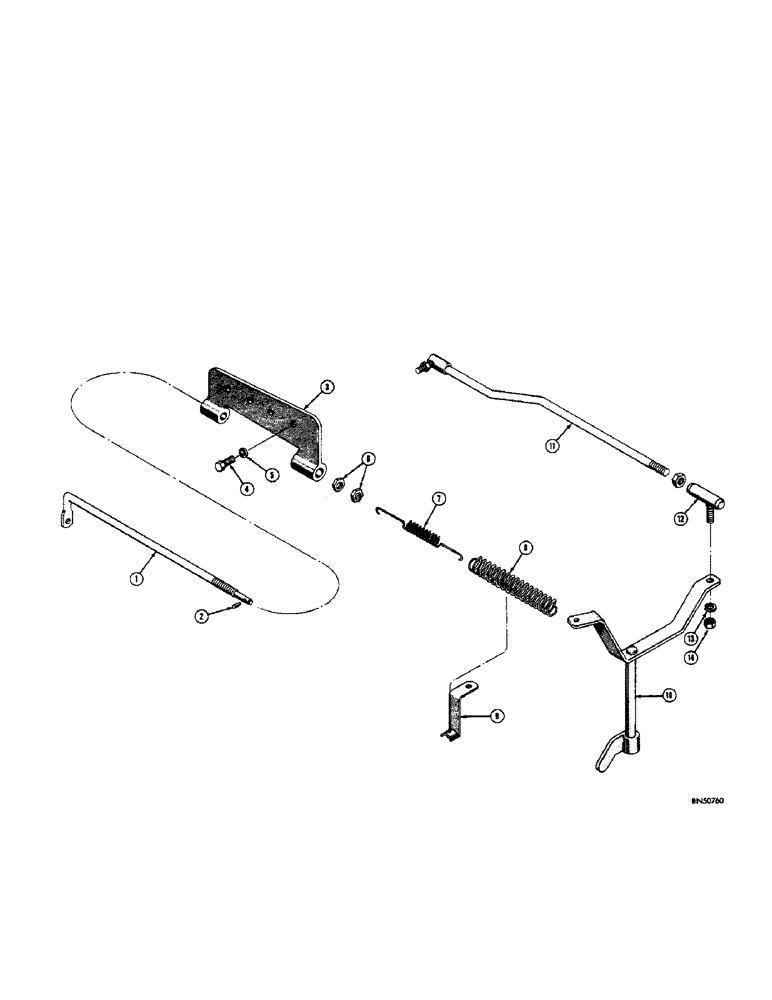

Запчасти Case 310F (020[1]) - GOVERNOR LINKAGE - GAS (02) - FUEL SYSTEM

1

G11369

ROD - governor control

1шт.

2

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

3

G2133

GUIDE

- governor control rod

1шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

131-412

PALNUT - adj., governor rod (7/16" - 20 NF)

2шт.

7

G48510

X

SPRING - governor speed control, inner

1шт.

8

G48511

SPRING

- governor speed control, outer

1шт.

9

VT5569

DAMPER - governor spring

1шт.

10

VTA850

X

LEVER - governor, complete

1шт.

11

G45222

ROD

- throttle, governor, Serial Range: arm-carb.

1шт.

12

G11152

X

BALL JOINT - throttle rod (Use A10329)

1шт.

A10329

BALL JOINT,1/4" - 28 x 1"

- throttle rod

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.
