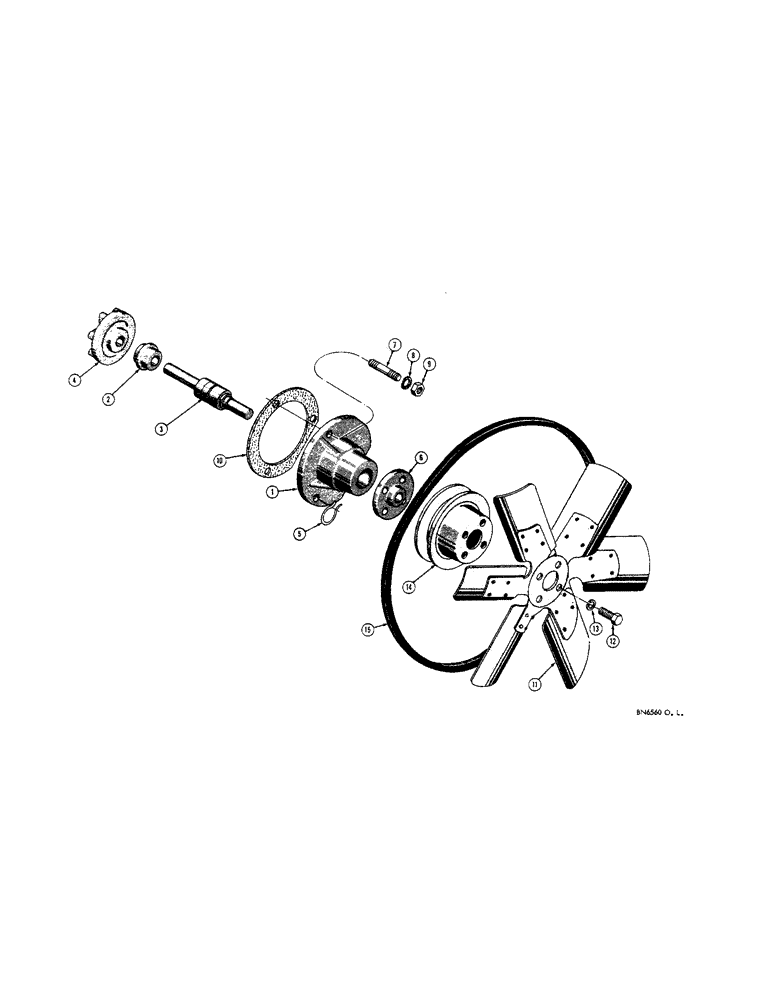

Запчасти Case 310F (052) - WATER PUMP, FAN, FAN BELT, & PULLEY - DIESEL, SERVICE (01) - ENGINE

G11939

PUMP

PUMP - water, complete

1шт.

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Pump

1шт.

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - water pump

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - pump drive

1шт.

4

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

5

VT4594

X

RING - retaining

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - fan

1шт.

7

VT4512

X

STUD - water pump to timing gear cover (3/8" - 16 NC x 1-1/4")

3шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

3шт.

10

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

11

D26699

FAN

FAN - suction

1шт.

D26700

SPARE PART FAN - pusher (Loader models only) Not illustrated

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

14

G11339

PULLEY

PULLEY - water pump and fan drive

1шт.

15

G46238

BELT,0.55" W x 17.78" L

Fan, Water Pump, and Generator Drive, Use A49149

1шт.

A49149

X

"V" BELT - fan, water pump and generator pulley

1шт.

G37093

X

SET - gasket, valve grind (Used on engines prior to engine serial number 2072089) Includes items 1 thru 12 (See A36410)

1шт.

A36410

GASKET

SET - gasket, valve grind (Used on engine serial number 2072089 and after)

1шт.
