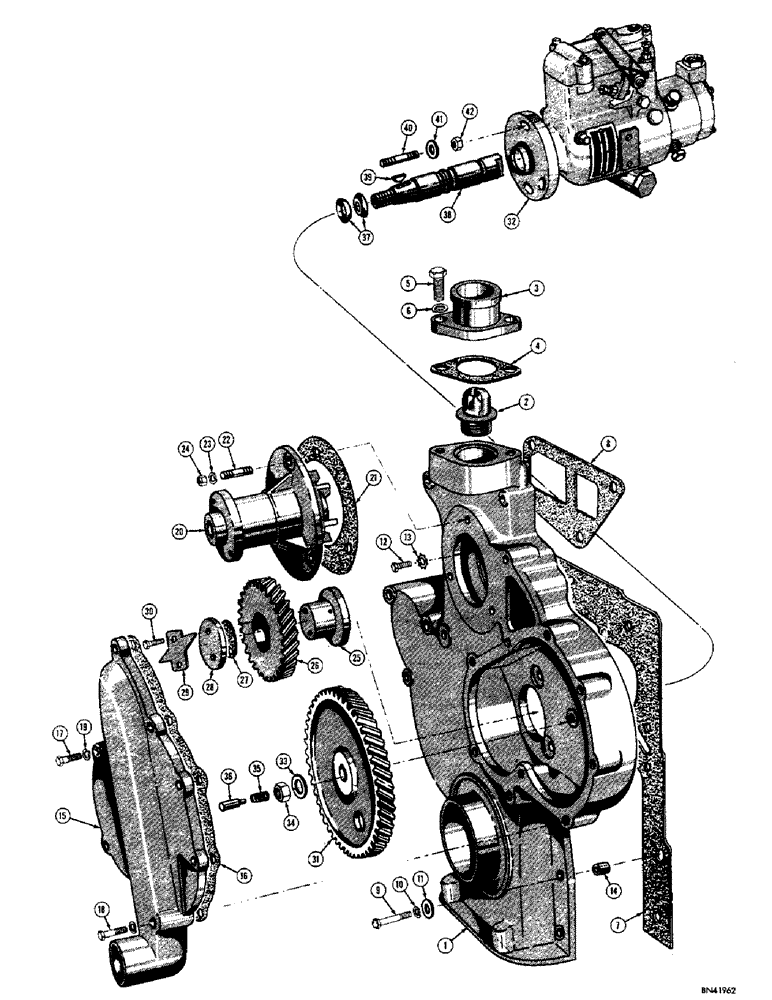

Запчасти Case 310F (050) - TIMING GEAR COVER AND FUEL INJECTION PUMP DRIVE - DIESEL (01) - ENGINE

G37089

SPARE PART TIMING GEAR COVER, THERMOSTAT, AND WATER OUTLET ASS'Y

1шт.

1

G2143

SPARE PART COVER - timing gear

1шт.

VT3373

SPARE PART SEAL - oil, crankshaft front (Not shown, see Figure 040)

1шт.

VT3380

SPARE PART SEAL - dust, fan pulley (Not shown, see Figure 040)

1шт.

G11204

STUD

STUD - injection pump to timing gear cover (3/8" x 1-7/16") See ref. #40

3шт.

2

G45788

SPARE PART THERMOSTAT

1шт.

3

G2144

FITTING

OUTLET - water

1шт.

4

G46907

GASKET

GASKET - water outlet

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

7

G46857

GASKET

GASKET - timing gear, Serial Range: cover-block

1шт.

8

G46858

GASKET

GASKET - water inlet

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

15-652

X

HHCS - 3/8" - 16 NC x 3-1/4"

3шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, , 13-614 capscrew Ext Tooth, 3/8"

2шт.

11

195-25

WASHER,3/8"

WASHER - plain (13/32" I.D. x 13/16" O.D. x 5/64" thick) 13-614 capscrew

2шт.

12

G49083

BOLT

BOLT - drilled, timing gear, Serial Range: cover-head

1шт.

13

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

14

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

15

G2077

COVER ASSY

COVER - pump drive

1шт.

16

G46859

GASKET

GASKET - pump drive cover to gear cover

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

19

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

9шт.

20

G11939

PUMP

PUMP - water (See page 52 for breakdown)

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Pump

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

22

VT4512

X

STUD - water pump to timing gear cover (3/8" - 16 NC x 1-1/4")

3шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

24

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

3шт.

25

G11726

HUB

HUB - idler gear, injection pump (Use A49021)

1шт.

A49021

X

HUB - idler gear, injection pump

1шт.

26

G11852

GEAR

GEAR - idler, injection pump

1шт.

27

G11728

SHIM,.005" Thk

SHIM, , Idler gear .005" Thk

1шт.

G11729

SHIM,.006" Thk

SHIM, , Idler gear .006" Thk

1шт.

G11730

SHIM,.007" Thk

SHIM, , Idler gear .007" Thk

1шт.

G11731

SHIM,.009" Thk

SHIM, , Idler gear .009" Thk

1шт.

28

G11732

PLATE

PLATE - thrust, idler gear

1шт.

29

G11746

PLATE

PLATE - lock, idler gear

1шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

31

G2076

GEAR

GEAR - injection pump drive

1шт.

32

G37055

SPARE PART PUMP - fuel injection (See Figure 056 for breakdown) Use A35779

1шт.

A35779

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP - fuel injection (See Figure 056 for breakdown)

1шт.

33

G49081

WASHER

WASHER - pump driveshaft nut

1шт.

34

25-159

JAM NUT,Jam, 9/16"-18, G5

NUT - hex., jam (9/16" - 18 NF)

1шт.

35

G48502

SPRING

SPRING - thrust, pump driveshaft

1шт.

36

G47128

PLUNGER

PLUNGER - thrust, pump driveshaft

1шт.

37

R14711

SEAL

SEAL - pump driveshaft

2шт.

38

G47113

SHAFT

SHAFT - pump drive (Use A49082)

1шт.

A49082

SPARE PART SHAFT - pump drive

1шт.

39

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, #6, 5/32" x 5/8"

1шт.

40

G11204

STUD

STUD - injection pump to timing gear cover (3/8" x 1-7/16")

3шт.

41

VT3695

X

WASHER - clipped, pump mounting stud

3шт.

42

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

3шт.
