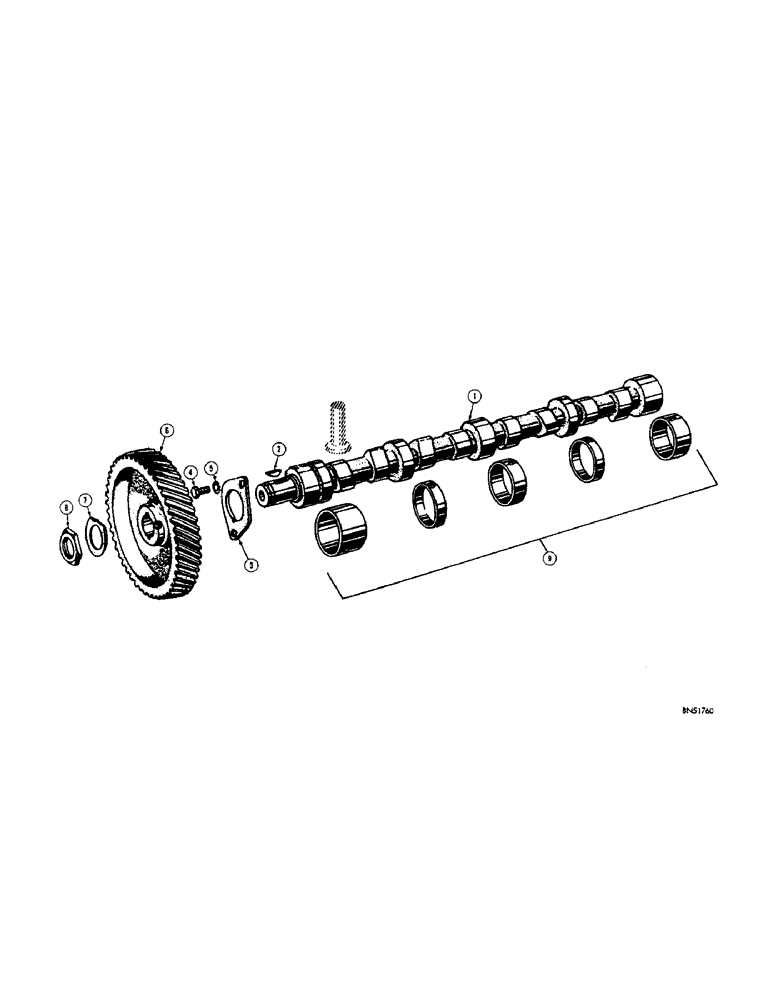

Запчасти Case 310F (048[1]) - CAMSHAFT - DIESEL (01) - ENGINE

1

G2111

CAMSHAFT - engine (Used on engines prior to engine serial number 2072089) Use A49005 (See A36297)

1шт.

A49005

CAMSHAFT - engine (Used on engines prior to engine serial number 2072089) See A36297

1шт.

A36297

X

CAMSHAFT - engine (Used on engine serial number 2072089 and after)

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

VT3365

X

PLATE - thrust, camshaft

1шт.

4

VT4500

X

SCREW - thrust plate

2шт.

5

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

6

G2066

X

GEAR - camshaft (48T)

1шт.

7

VT4517

X

LOCK - nut, camshaft

1шт.

8

VT4536

X

NUT - camshaft gear

1шт.

9

G11936

BUSHING - camshaft (Set of 5) Used on engines prior to engine serial number 2072089 (See A36317)

1шт.

A36317

RING, SNAP

BUSHING - camshaft (Set of 5) Used on engine serial number 2072089 and after

1шт.
