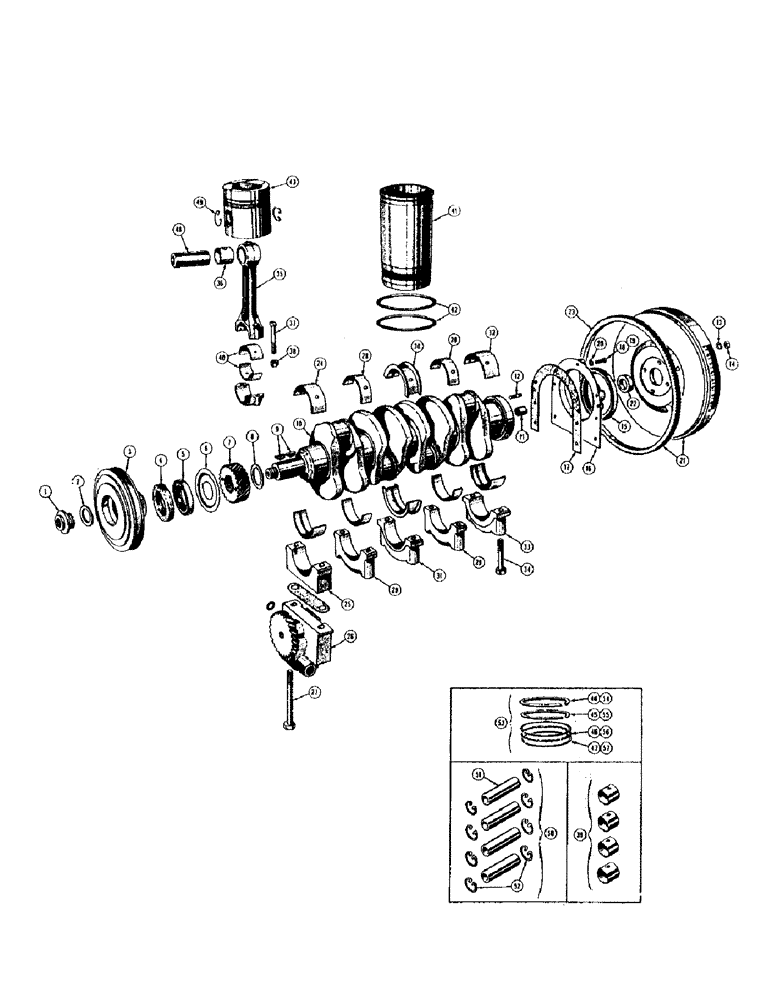

Запчасти Case 310F (040) - FLYWHEEL, CRANKSHAFT, AND PISTONS - DIESEL (01) - ENGINE

1

G11263

NUT

NUT - crankshaft pulley (When stock is exhausted, order A35673)

1шт.

A35673

NUT

NUT - crankshaft pulley (See G11263 and VT3366) Not shown

1шт.

2

VT3366

X

COLLAR - crankshaft pulley nut (Used with G11263 nut only)

1шт.

3

G11342

X

PULLEY - drive

1шт.

4

VT3380

SPARE PART SEAL - dust, fan pulley

1шт.

5

VT3373

SPARE PART SEAL - oil, crankshaft (Front)

1шт.

6

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

7

VT3225

X

GEAR - crankshaft (24T)

1шт.

8

VT3377

X

SPACER - thrust, crankshaft

1шт.

9

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft (1/4" x 1-1/16")

2шт.

10

G11889

CRANKSHAFT

CRANKSHAFT - engine (Use A49025)

1шт.

A49025

SPARE PART CRANKSHAFT - engine

1шт.

11

VT3370

X

BUSHING BUSHING - pilot, crankshaft

1шт.

12

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

13

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

4шт.

14

25-117

NUT,7/16"-20, G5

NUT - hex. (7/16" - 20 NF)

4шт.

15

G13824

RUBBER SEAL

SEAL - oil, crankshaft rear (Double lip)

1шт.

16

G2017

RETAINER

RETAINER - rear oil seal, crankshaft

1шт.

17

G46802

GASKET

GASKET - retainer, rear oil seal

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

19

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

21

G37091

SPARE PART FLYWHEEL - complete

1шт.

22

VT3093

X

BEARING - pilot, flywheel

1шт.

23

G11710

GEAR

GEAR - ring, flywheel (135T) Use A49020

1шт.

A49020

X

GEAR - ring, flywheel

1шт.

24

G11940

X

LINER - crankshaft front bearing, top and bottom half (Standard on engines prior to engine serial number 2072089) See A36480

1шт.

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER - crankshaft front bearing, top and bottom half (Standard on engine serial number 2072089 and after)

1шт.

G37005

KIT

LINER - crankshaft front bearing, top and bottom half (.002" undersize) Used on engines prior to engine serial number 2072089 (See A36481)

1шт.

A36481

LINING

LINER - crankshaft front bearing, top and bottom half (.002" undersize) Used on engine 2072089 and after

1шт.

G37006

X

LINER - crankshaft front bearing, top and bottom half (.010" undersize) Used on engines prior to engine serial number 2072089 (See A36482)

1шт.

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER - crankshaft front bearing, top and bottom half (.010" undersize) Used on engine serial number 2072089 and after

1шт.

G37007

KIT

LINER - crankshaft front bearing, top and bottom half (.020" undersize) Used on engines prior to engine serial number 2072089 (See A36483)

1шт.

A36483

LINING

LINER - crankshaft front bearing, top and bottom half (.020" undersize) Used on engine serial number 2072089 and after

1шт.

G37008

X

LINER - crankshaft front bearing, top and bottom half (.030" undersize) Used on engines prior to engine serial number 2072089 (See A36484)

1шт.

A36484

LINING

LINER - crankshaft front bearing, top and bottom half (.030" undersize) Used on engine serial number 2072089 and after

1шт.

25

G2126

CAP

CAP - bearing, crankshaft front

1шт.

26

G37070

X

PUMP - oil, engine (See Figure 018(1) for breakdown) Use A49050

1шт.

26

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

26

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

A49050

X

PUMP - oil, engine (See Figure 018(1) for breakdown)

1шт.

27

G49077

BOLT

BOLT - place, oil pump and front bearing cap (1/2" x 5-1/8")

2шт.

28

G11942

JOURNAL

LINER - crankshaft intermediate bearing, top and bottom half (Standard on engines prior to engine serial number 2072089) See A36485

2шт.

A36485

LINING

LINER - crankshaft intermediate bearing, top and bottom half (Standard on engine serial number 2072089 and after)

2шт.

G37013

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.002" undersize) Used on engines prior to engine serial number 2072089 (See A36486)

2шт.

A36486

LINING

LINER - crankshaft intermediate bearing, top and bottom half (.002" undersize) Used on engine serial number 2072089 and after

2шт.

G37014

X

LINER - crankshaft intermediate bearing, top and bottom half (.010" undersize) Used on engines prior to engine serial number 2072089 (See A36487)

2шт.

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER - crankshaft intermediate bearing, top and bottom half (.010" undersize) Used on engine serial number 2072089 and after

2шт.

G37015

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.020" undersize) Used on engines prior to engine serial number 2072089 (See A36488)

2шт.

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER - crankshaft intermediate bearing, top and bottom half (.020" undersize) Used on engine serial number 2072089 and after

2шт.

G37016

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.030" undersize) Used on engines prior to engine serial number 2072089 (See A36489)

2шт.

A36489

LINING

LINER - crankshaft intermediate bearing, top and bottom half (.030" undersize) Used on engine serial number 2072089 and after

2шт.

29

G2128

CAP

CAP - bearing, crankshaft intermediate

2шт.

30

G11941

SLEEVE CYLINDER

LINER - crankshaft center bearing, top and bottom half (Standard on engines prior to engine serial number 2072089) See A36490

1шт.

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER - crankshaft center bearing, top and bottom half (Standard on engine serial number 2072089 and after)

1шт.

G37009

KIT

LINER - crankshaft center bearing, top and bottom half (.002" undersize) Used on engines prior to engine serial number 2072089 (See A36491)

1шт.

A36491

LINING

LINER - crankshaft center bearing, top and bottom half (.002" undersize) Used on engine serial number 2072089 and after

1шт.

G37010

X

LINER - crankshaft center bearing, top and bottom half (.010" undersize) Used on engines prior to engine serial number 2072089 (See A36492)

1шт.

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - crankshaft center bearing, top and bottom half (.010" undersize) Used on engine serial number 2072089 and after

1шт.

G37011

KIT

LINER - crankshaft center bearing, top and bottom half (.020" undersize) Used on engines prior to engine serial number 2072089 (See A36493)

1шт.

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER - crankshaft center bearing, top and bottom half (.020" undersize) Used on engine serial number 2072089 and after

1шт.

G37012

KIT

LINER - crankshaft center bearing, top and bottom half (.030" undersize) Used on engines prior to engine serial number 2072089 (See A36494)

1шт.

A36494

LINING

LINER - crankshaft center bearing, top and bottom half (.030" undersize) Used on engine serial number 2072089 and after

1шт.

31

G2127

CAP

CAP - bearing, crankshaft center

1шт.

32

G11943

X

LINER - crankshaft rear bearing, top and bottom half (Standard on engines prior to engine serial number 2072089) See A36495

1шт.

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER - crankshaft rear bearing, top and bottom half (Standard on engine serial number 2072089 and after)

1шт.

G37017

KIT

LINER - crankshaft rear bearing, top and bottom half (.002" undersize) Used on engines prior to engine serial number 2072089 (See A36496)

1шт.

A36496

LINING

LINER - crankshaft rear bearing, top and bottom half (.002" undersize) Used on engine serial number 2072089 and after

1шт.

G37018

X

LINER - crankshaft rear bearing, top and bottom half (.010" undersize) Used on engines prior to engine serial number 2072089 (See A36497)

1шт.

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER - crankshaft rear bearing, top and bottom half (.010" undersize) Used on engine serial number 2072089 and after

1шт.

G37019

X

LINER - crankshaft rear bearing, top and bottom half (.020" undersize) Used on engines prior to engine serial number 2072089 (See A36498)

1шт.

A36498

KIT

LINER - crankshaft rear bearing, top and bottom half (.020" undersize) Used on engine serial number 2072089 and after

1шт.

G37020

KIT

LINER - crankshaft rear bearing, top and bottom half (.030" undersize) Used on engines prior to engine SN2072089 (See A36499)

1шт.

A36499

BEARING LINER

LINER - crankshaft rear bearing, top and bottom half (.030" undersize) Used on engine serial number 2072089 and after

1шт.

33

G2129

CAP

CAP - bearing, crankshaft rear

1шт.

34

G49078

SPARE PART BOLT - place, bearing cap (1/2" x 4-1/2")

8шт.

35

G11847

ROD

ROD - connecting (Use A49023)

4шт.

A49023

X

ROD - connecting

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Use G11953)

1шт.

37

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

38

G49060

NUT

NUT - connecting rod cap bolt (3/8" - 24 NF)

2шт.

39

G11953

BUSHING

BUSHINGS - set (Includes 4 connecting rod bushings)

1шт.

40

G11944

BUSHING

LINER - connecting rod bearing, top and bottom half (Standard on engines prior to engine serial number 2072089) See A36500

4шт.

A36500

SEAL

LINER - connecting rod bearing, top and bottom half (Standard on engine serial number 2072089 and after)

4шт.

G37021

X

LINER - connecting rod bearing, top and bottom half (.002" undersize) Used on engines prior to engine serial number 2072089 (See A36501)

4шт.

A36501

BEARING LINER

LINER - connecting rod bearing, top and bottom half (.002" undersize) Used on engine serial number 2072089 and after

4шт.

G37022

X

LINER - connecting rod bearing, top and bottom half (.010" undersize) Used on engines prior to engine serial number 2072089 (See A36502)

4шт.

A36502

LINING

LINER - connecting rod bearing, top and bottom half (.010" undersize) Used on engine serial number 2072089 and after

4шт.

G37023

X

LINER - connecting rod bearing, top and bottom half (.020" undersize) Used on engines prior to engine serial number 2072089 (See A36503)

4шт.

A36503

BEARING LINER

LINER - connecting rod bearing, top and bottom half (.020" undersize) Used on engine serial number 2072089 and after

4шт.

G37024

X

LINER - connecting rod bearing, top and bottom half (.030" undersize) Used on engines prior to engine serial number 2072089 (See A36504)

4шт.

A36504

KIT

LINER - connecting rod bearing, top and bottom half (.030" undersize) Used on engine serial number 2072089 and after

4шт.

G37064

SPARE PART SET - sleeves and pistons, matched set of 4 (Includes pistons, sleeves, sleeve "O" rings, piston rings, wrist pins and retaining rings) Use A35772

1шт.

A35772

KIT, LINER, PISTON R

SET - sleeves and pistons, matched set of 4 (Includes pistons, sleeves, sleeve "O" rings, piston rings, wrist pins and retaining rings)

1шт.

G37063

X

SET - sleeve and piston (For individual piston replacement)

4шт.

41

G2110

SLEEVE

SLEEVE - cylinder (3-3/16" bore)

1шт.

42

G46888

O-RING,3.737" ID x 3.943" OD

SEAL - "O" ring, cylinder sleeve

2шт.

43

G2137

X

PISTON - 3-13/16" bore, 3 groove

1шт.

44

G4819

RING

RING - top (See G37075)

1шт.

45

G4817

RING

RING - compression (See G37035)

1шт.

46

G47174

SPRING

SPACER - oil ring rail (See G37075)

1шт.

47

G47155

RAIL

RAIL - oil ring (See G37075)

2шт.

48

G49607

X

PIN - wrist (Use A35771)

1шт.

49

G46702

RING, LOCKING

RING, LOCK RING - retaining, wrist pin

2шт.

50

G11954

X

SET - wrist pin and retaining ring (Use A35771)

1шт.

51

NSS

NOT SOLD SEPARAT

PIN - wrist (Use A35771)

4шт.

52

G46702

RING, LOCKING

RING, LOCK RING - retaining, wrist pin

8шт.

50

A35771

KIT

SET - wrist pin and retaining ring

1шт.

51

NSS

NOT SOLD SEPARAT

PIN - wrist (Use A35771)

4шт.

52

G46702

RING, LOCKING

RING, LOCK RING - retaining, wrist pin

8шт.

53

G37075

RING

SET - piston ring, chrome

1шт.

54

G4819

RING

RING - top

4шт.

55

G4817

RING

RING - compression

4шт.

56

G47174

SPRING

SPACER - oil ring rail

4шт.

57

G47155

RAIL

RAIL - oil ring

8шт.
