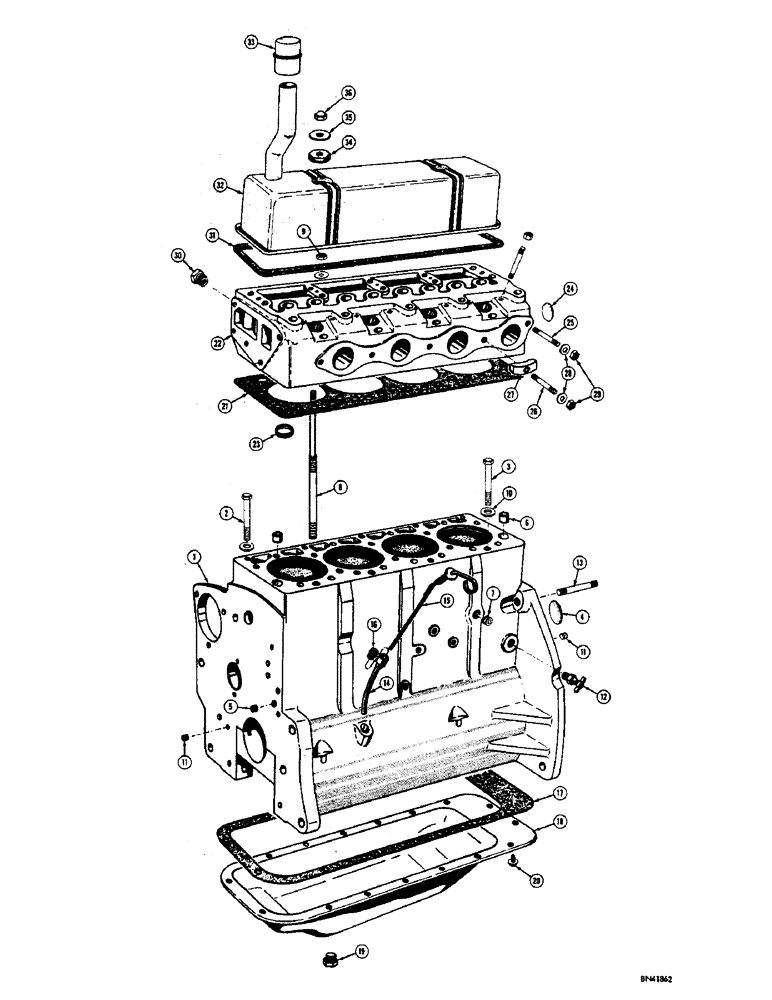

Запчасти Case 310F (036) - ENGINE BLOCK AND RELATED PARTS - DIESEL (01) - ENGINE

1

G10509

SHORT BLOCK ASS'Y - includes pistons, rings, sleeves, connecting rods, crankshaft, timing gears and oil pump (Used on all engines prior to engine serial number 2072089) See A36315

1шт.

A36315

SHORT BLOCK ASS'Y - includes pistons, rings, sleeves, connecting rods, crankshaft, timing gears and oil pump (Used on engine serial number 2072089 and after)

1шт.

A49125

1шт.

STRIPPED BLOCK ASS'Y - includes block, Hubbard plugs, bearing caps, screws, pins, washers, studs, oil gauge, rod support, plug spacers, main bearings, lockwires, copper washers, camshaft bearings and gaskets (Used on engines prior to engine serial number 2072089) See A36309

1шт.

A36309

1шт.

STRIPPED BLOCK ASS'Y - includes block, Hubbard plugs, bearing caps, screws, pins, washers, studs, oil gauge, rod support, plug spacers, main bearings, lockwires, copper washers, camshaft bearings and gaskets (Used on engine serial number 2072089 and after)

1шт.

G2126

CAP

- bearing, crankshaft, front (Not shown, see Figure 040)

1шт.

G2127

CAP

- bearing, crankshaft center (Not shown, see Figure 040)

1шт.

G2128

CAP

- bearing, crankshaft intermediate (Not shown, see Figure 040)

2шт.

G2129

CAP

- bearing, crankshaft rear (Not shown, see figure 040)

1шт.

G49077

BOLT

- place, oil pump and front bearing cap (1/2" x 5-1/8") Not shown, see Figure 040

2шт.

G49078

BOLT - place, bearing cap (1/2" x 4-1/2") Not shown, see Figure 040

8шт.

G11936

BUSHINGS - camshaft (Set of 5) Not shown, see Figure 048(1) (Used engines prior to engine serial number 2072089)

1шт.

A36317

RING, SNAP

BUSHINGS - camshaft (Set of 5) Not shown, see Figure 048(1) (Used on engine serial number 2072089 and after)

1шт.

2

A35371

BOLT

- cylinder head (1/2" x 5")

11шт.

A35372

BOLT (SPREADER)

BOLT - cylinder head (1/2" x 5-1/2")

2шт.

3

A35370

BOLT

BOLT - cylinder head (1/2" x 3-1/4")

4шт.

4

VT3398

X

PLUG - rear, Hubbard (2-1/8" dia.)

1шт.

5

G49070

PLUG

- drilled pipe, front end of block (1/4" NPT)

1шт.

6

G49608

RING

- dowel, Serial Range: head-block

2шт.

7

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- pipe, countersunk square head (3/8" NPT)

1шт.

8

G49511

STUD

- valve cover

2шт.

9

VT3361

X

NUT - valve cover stud

2шт.

10

VT3359

WASHER - cylinder head bolts and valve cover studs

19шт.

11

VT3395

X

PLUG - pipe, hex. socket head (1/4" NPT)

2шт.

12

217-103

COCK, DRAIN

DRAIN COCK - water, engine block

1шт.

13

VT3531

X

STUD - engine to clutch housing (5/8" x 3")

2шт.

14

G45139

BRACKET

SUPPORT - oil level gauge

1шт.

15

G37037

DIPSTICK

GAUGE - oil level

1шт.

16

G46892

OIL SEAL

- rubber, oil level gauge

1шт.

17

A35299

KIT

GASKET - oil pan

1шт.

18

A35292

X

PAN - oil

1шт.

19

G45786

PLUG

- drain, oil pan (3/8" NPT) Includes gasket

1шт.

21

A35196

X

GASKET - head (Used on engines prior to engine serial number 2072089)

1шт.

20

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - attaching, oil pan (5/16" x 18 NC x 3/4")

18шт.

A36299

GASKET

- head (Used on engine serial number 2072089 and after)

1шт.

22

G11908

HEAD - cyl., complete (Used on engines prior to engine serial number 2072089) Use A49152

1шт.

A49152

HEAD - cyl., complete (Used on engines prior to engine serial number 2072089)

1шт.

A36306

HEAD - cyl., complete (Used on engine serial number 2072089 and after)

1шт.

G49083

BOLT

- speial, drilled (Not shown, see Figure 050)

1шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Not shown, see Figure 050) Int Tooth, 1/2"

1шт.

G11724

LINER

- nozzle holder (Not shown, see Figure 056)

4шт.

H11945

GUIDES - intake valve stem (Set of 4) Not shown, see Figure 048

1шт.

G11946

GUIDE

S - exhaust valve stem (Set of 4) Not shown, see Figure 048

1шт.

23

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

24

VT3479

X

PLUG - Welch (1-3/4" dia.)

1шт.

25

VT4510

X

STUD - nozzle holder and manifold (3/8" x 1-3/4")

12шт.

26

A35175

STUD

-, Serial Range: manifold-head

6шт.

27

A35028

CLAMP

- manifold

6шт.

28

195-25

WASHER,3/8"

- plain, exhaust manifold (13/32" I.D. x 13/16" O.D. x 5/64" thick)

7шт.

92-6

LOCK WASHER,3/8"

intake manifold, not shown 3/8"

5шт.

29

131-903

NUT,3/8"-16

NUT - seez-pruf, exhaust manifold (3/8" - 16 NC)

7шт.

25-106

NUT,3/8"-16, G5

- hex., intake manifold (3/8" - 16 NC) Not shown

5шт.

30

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

31

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

32

G11997

COVER - valve

1шт.

33

VT3545

X

CAP - oil filler and breather (Use A49111)

1шт.

A49111

X

CAP - oil filler and breather

1шт.

34

G46867

GROMMET

- rubber, valve cover stud

2шт.

35

G49400

WASHER

- valve cover stud (13/32" I.D. x 1-5/32" O.D. x 9/64" thick)

2шт.

36

25-106

NUT,3/8"-16, G5

- hex., valve cover stud (3/8" - 16 NC)

2шт.
