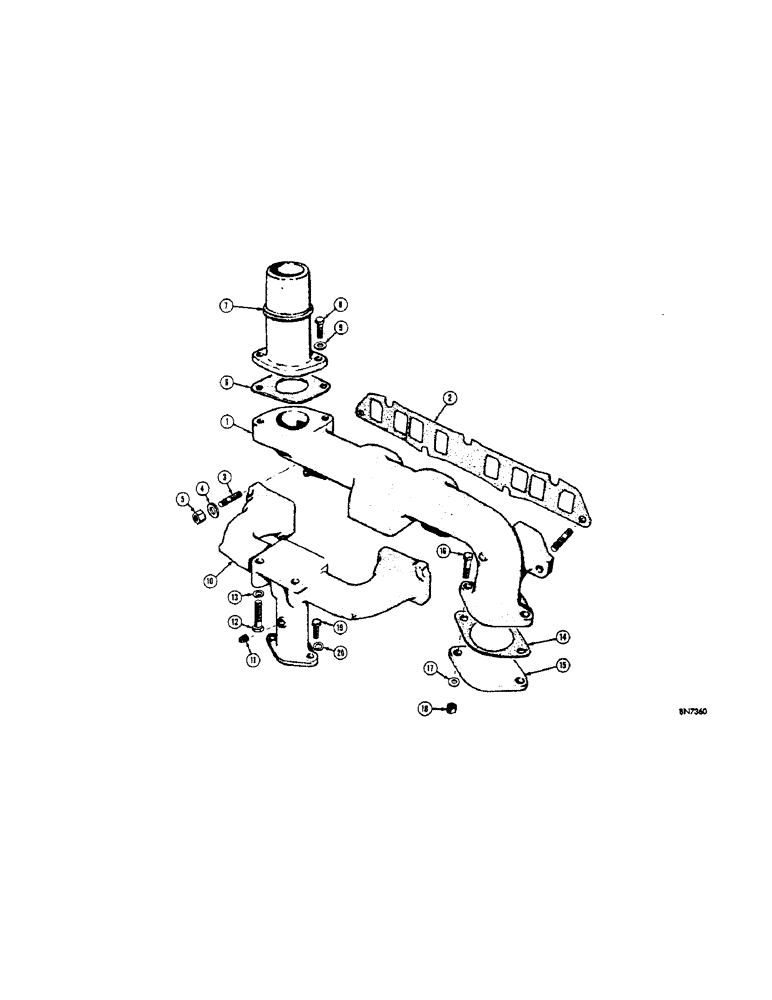

Запчасти Case 310F (020) - MANIFOLD - GAS (01) - ENGINE

1

G2042

MANIFOLD

- exhaust

1шт.

2

VT3394

X

GASKET - exhaust manifold

1шт.

3

VT4510

X

STUD - manifold to cylinder head

7шт.

4

VT4504

WASHER

- special, manifold stud (13/32" I.D. x 7/8" O.D. x 1/8" thick)

4шт.

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

3шт.

5

VT3362

X

NUT - hex., brass (3/8" - 16 NC)

7шт.

6

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

7

D25460

OUTLET - exhaust

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

G11920

X

MANIFOLD - intake

1шт.

11

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

G46853

MANIFOLD GASKET

- exhaust manifold lower port cover

1шт.

15

G2044

LARGE PLATE

COVER - exhaust manifold lower port

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

17

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

2шт.

18

VT3362

X

NUT - hex., brass (3/8" - 16 NC)

2шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Carburetor to intake manifold Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.
