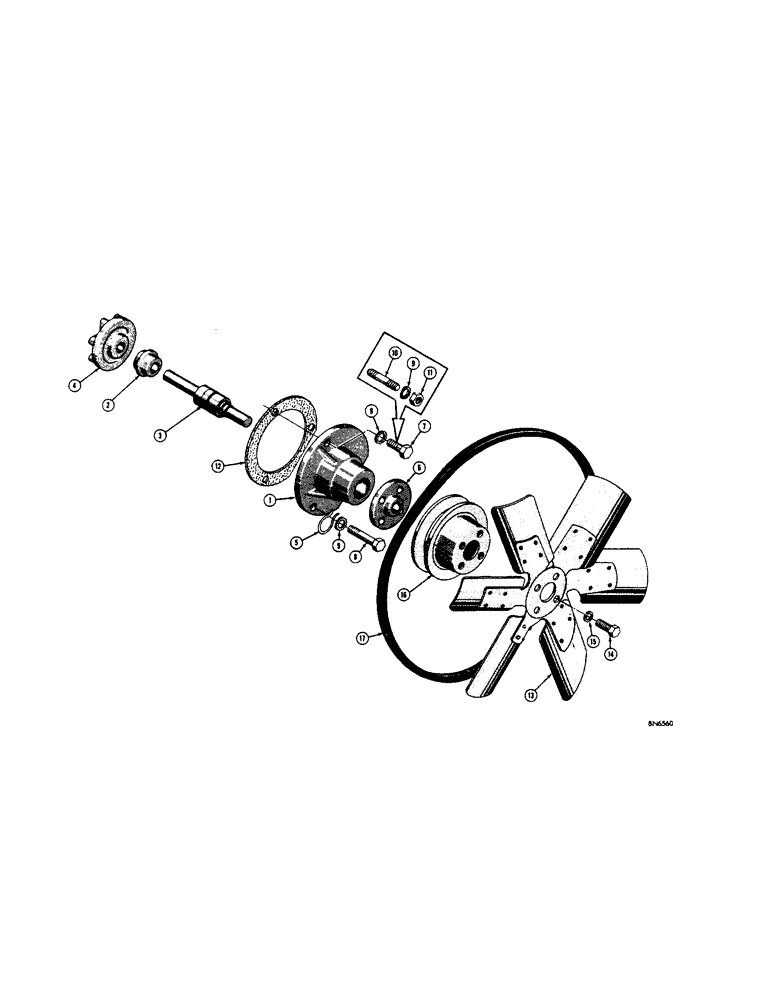

Запчасти Case 310F (016) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

G11956

WATER PUMP

PUMP - water

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - water pump (Use G11956)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - driveshaft (Use G11956)

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - pump drive (Use G11956)

1шт.

4

NSS

NOT SOLD SEPARAT

IMPELLER - water pump (Use G11956)

1шт.

5

VT4594

X

RING - retaining

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - fan (Use G11956)

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Water pump to timing gear cover Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - water pump to head (3/8" - 16 NC x 2-3/4")

1шт.

9

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

10

VT4512

X

STUD - lower L.H. side of water pump to timing gear cover (3/8" - 16 NC x 1")

1шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

12

G46875

GASKET

- water pump to timing gear cover

1шт.

13

D27436

FAN

- suction

1шт.

D27437

FAN

- pusher (Loader models only) Not shown

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

G11339

PULLEY

- water pump and fan

1шт.

17

G46238

BELT,0.55" W x 17.78" L

Fan, Water Pump, and Generator Drive, Use A49149 0.55" W x 17.78" L

1шт.

A49149

X

"V" BELT - fan, water pump, and generator drive

1шт.
