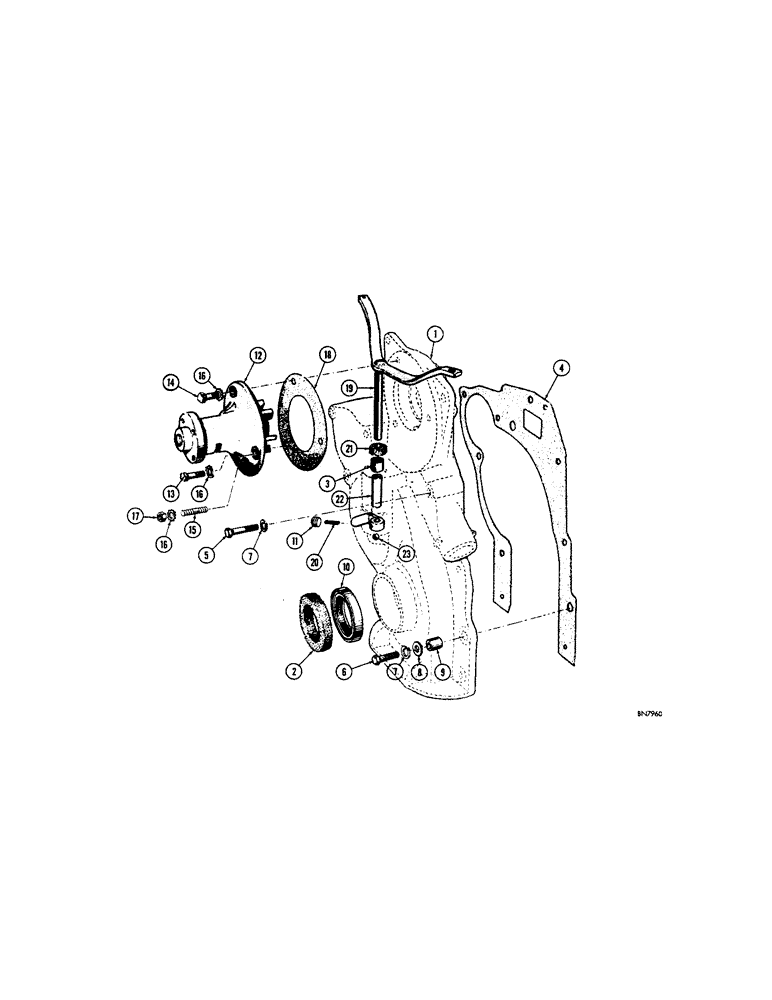

Запчасти Case 310F (016[1]) - TIMING GEAR COVER - GAS, TIMING GEAR (01) - ENGINE

1

VT334

COVER - timing gear (When stock is exhausted, use A35905)

1шт.

A35905

COVER - timing gear

1шт.

2

VT3380

SEAL - dust, drive pulley

1шт.

3

A35882

X

BEARING - needle, governor lever

1шт.

4

VT3248

X

GASKET - timing gear cover

1шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Timing gear cover to block Hex, 3/8"-16 x 2", G5

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Timing gear cover to block Hex, 3/8"-16 x 2 1/4", G5

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - timing gear cover to block (3/8" - 16 NC x 2-3/4")

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Timing gear cover to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - timing gear cover to block (3/8" - 16 NC x 1-1/2")

2шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/16" O.D. x 1" thick) 3/8"

2шт.

9

VT4535

X

RING - dowel, timing, Serial Range: gear-block

2шт.

10

VT3373

SEAL - oil, crankshaft front

1шт.

11

VT3352

X

PLUG - pipe, timing gear cover (1/8" slotted head)

1шт.

12

G11956

WATER PUMP

PUMP - water (See above for breakdown)

1шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - water pump to timing gear cover (3/9" - 16 NC x 2-3/4")

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Water pump to timing gear cover Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

15

VT4512

X

STUD - lower L.H. side of water pump to timing gear cover (3/8" - 16 NC x 1")

1шт.

16

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

- hex., VT4512 stud (3/8" - 16 NC)

1шт.

18

G46875

GASKET

- water pump to timing gear cover

1шт.

19

VTA850

X

LEVER - governor (Includes arm)

1шт.

20

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

21

VT3259

X

SEAL - dust, governor lever

1шт.

22

VT3288

X

SPACER - thrust, governor lever

1шт.

23

211-5

BALL,3/16" Dia

- thrust, governor lever (.) 3/16" Dia

1шт.
