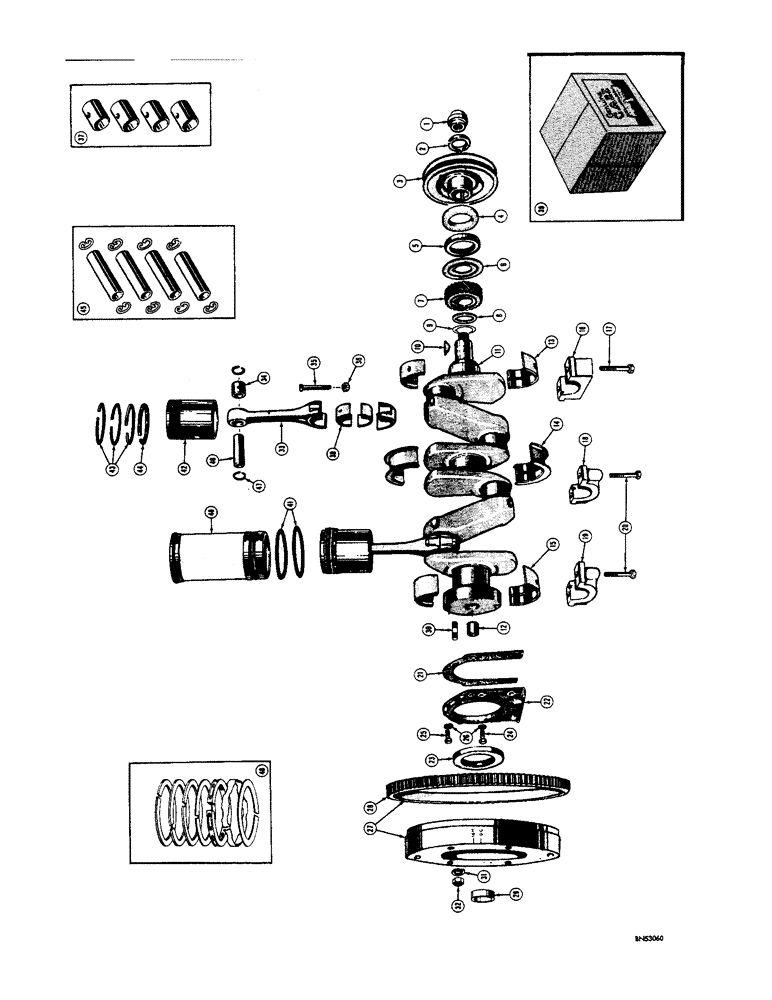

Запчасти Case 310F (010) - FLYWHEEL, CRANKSHAFT, AND PISTONS - GAS (01) - ENGINE

1

G11263

NUT

- drive pulley (When stock is exhausted, order A35673)

1шт.

A35673

NUT

- drive pulley (Not shown)

1шт.

2

VT3366

X

COLLAR - drive pulley nut (G11263 nut only)

1шт.

3

G11342

X

PULLEY - fan drive

1шт.

4

VT3380

SEAL - dust, drive pulley

1шт.

5

VT3373

SEAL - oil, crankshaft front

1шт.

6

VT3220

X

SLINGER - oil, front bearing

1шт.

7

VT3225

X

GEAR - crankshaft (24T)

1шт.

8

VT3377

X

SPACER - crankshaft thrust

1шт.

9

VT3368

X

SHIM - crankshaft thrust (.010" thick)

1шт.

10

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft (1/4" x 1-1/16")

2шт.

11

G11183

CRANKSHAFT

- engine (Use A49018)

1шт.

A49018

X

CRANKSHAFT - engine

1шт.

12

VT3370

X

BUSHING - pilot, crankshaft

1шт.

13

G37043

KIT

LINERS - crankshaft front bearing, top and bottom half (Standard)

1шт.

G37044

KIT

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G37045

KIT

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G37046

KIT

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

14

G37047

KIT

LINERS - crankshaft center bearing, top and bottom half (Standard)

1шт.

G37048

KIT

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G37049

KIT

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G37050

KIT

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

15

G37051

KIT

LINERS - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G37052

KIT

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G37053

KIT

LINERS - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

G37054

KIT

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

16

G2035

CAP

- crankshaft front bearing

1шт.

17

G49059

BOLT

- place, oil pump and front bearing cap (1/2" x 4-3/4")

2шт.

18

G2036

CAP

- crankshaft center bearing

1шт.

19

G2037

CAP

- crankshaft rear bearing

1шт.

20

G49037

BOLT

- place, center and rear bearing caps (1/2 x 3")

4шт.

21

G46802

GASKET

- retainer, rear oil seal

1шт.

22

G2017

RETAINER

- rear oil seal, crankshaft

1шт.

23

G13824

RUBBER SEAL

SEAL - oil, crankshaft rear (Double lip)

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

27

G37091

FLYWHEEL - complete

1шт.

28

G11710

GEAR

- flywheel (135T) Use A49020

1шт.

A49020

X

GEAR - glywheel (135T)

1шт.

29

VT3093

X

BEARING - pilot, flywheel

1шт.

30

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

31

92-7

LOCK WASHER,7/16"

4шт.

32

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

4шт.

33

G11592

EXCHANGE CONROD

ROD - connecting, complete (Use A49019)

4шт.

A49019

X

ROD - connecting, complete

4шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Use G11955)

4шт.

35

G11701

BOLT

- connecting rod cap

2шт.

36

G49060

NUT

- connecting rod cap bolt

2шт.

37

G11955

KIT

BUSHING - set (Includes 4 connecting rod bushings)

1шт.

38

G11982

KIT

LINERS - connecting rod bearing, top and bottom half (Standard)

4шт.

G11983

KIT

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

G11984

KIT

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

4шт.

G11985

LINERS - connecting rod bearing, top and bottom half (.040" undersize)

4шт.

39

G11007

SLEEVE ASSY

SET - sleeves and pistons

1шт.

40

G1061

SLEEVE

- cylinder (3-3/8" bore)

4шт.

41

G46909

O-RING,3.112" ID x 3.344" OD

SEAL - "O" ring, cyl. sleeve

8шт.

42

G1060

PISTON

- 3-3/8" bore

4шт.

43

G1062

OIL SEAL

RING - piston, compression

12шт.

44

G1063

OIL SEAL

RING - piston, oil control

4шт.

45

G11925

PISTON PIN

SET - piston wrist pin and retaining ring

4шт.

46

NSS

NOT SOLD SEPARAT

PIN - wrist

1шт.

47

VT3363

X

RING - retaining, piston wrist pin

8шт.

48

G11116

PISTON RING SET

SET - piston ring (2 in 1 chrome)

1шт.
