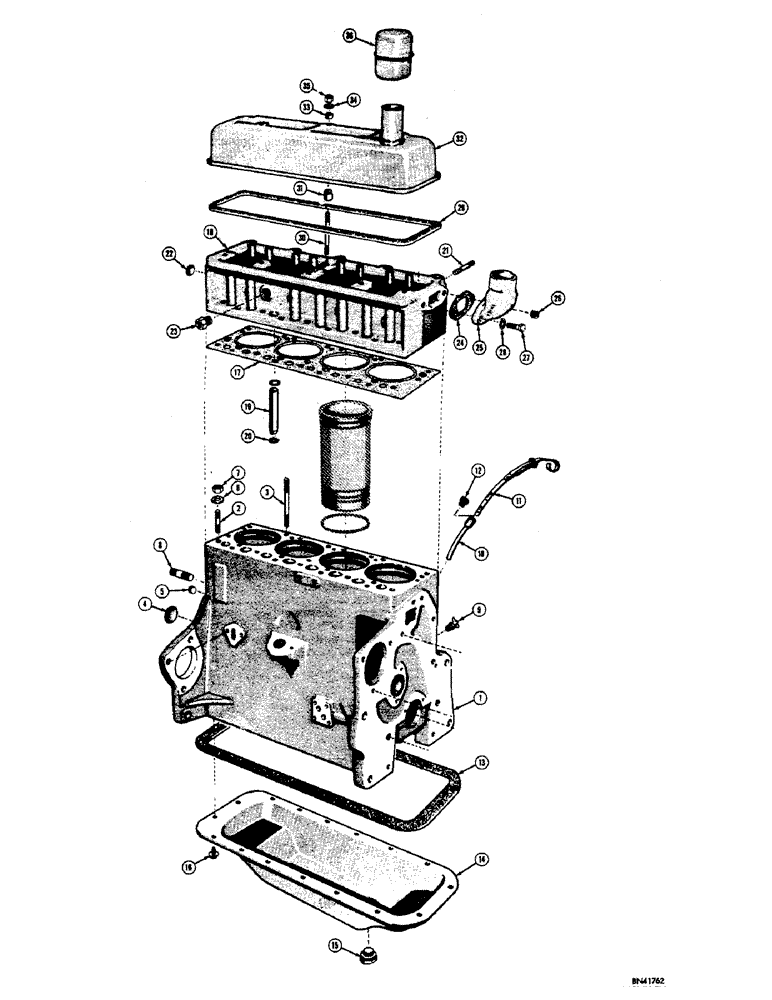

Запчасти Case 310F (008) - ENGINE BLOCK AND RELATED PARTS - GAS (01) - ENGINE

1

G10506

X

SHORT BLOCK ASSEMBLY - includes pistons, rings, sleeves, connecting rods, crankshaft, camshaft, timing gears and oil pump

1шт.

G11911

X

STRIPPED BLOCK - includes block, Hubbard plugs, bearing caps, screws, pins, washers, studs, oil gauge, rod support, plug spacers, main bearings, camshaft bearings and gaskets

1шт.

G2035

CAP

- crankshaft front bearing (Not shown, see Figure 010)

1шт.

G2036

CAP

- crankshaft center bearing (Not shown, see Figure 010)

1шт.

G2037

CAP

- crankshaft rear bearing (Not shown, see Figure 010)

1шт.

G49037

BOLT

- place, center and rear bearing caps (Not shown, see Figure 010)

4шт.

G49059

BOLT

- place, oil pump and front bearing cap (Not shown, see Figure 010)

2шт.

VTA2621

X

BUSHING - camshaft (Set of 3) Not shown, see Figure 14(1)

1шт.

2

VT4503

X

STUD - cylinder head (1/2" x 2")

9шт.

3

VT4515

X

STUD - cylinder head (1/2" x 5-7/8")

5шт.

4

VT3398

X

PLUG - crankshaft rear bearing (2-1/8" Hubbard)

1шт.

5

VT3395

X

PLUG - pipe, oil gallery (1/4" NPT socket head)

3шт.

6

G49404

WASHER

- cylinder head studs

14шт.

7

VT3361

X

NUT - cylinder head studs

14шт.

8

VT3531

X

STUD - block to clutch housing (5/8" x 3")

2шт.

9

217-103

COCK, DRAIN

DRAIN COCK - engine block

1шт.

10

G45139

BRACKET

SUPPORT - dipstick

1шт.

11

G37037

DIPSTICK

- oil level

1шт.

12

G46892

OIL SEAL

- rubber, dipstick

1шт.

13

A35295

GASKET

- oil pan

1шт.

14

A35289

PAN - oil

1шт.

15

G45786

PLUG

- drain, oil pan (3/8" NPT) Includes gasket

1шт.

16

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - attaching, oil pan (5/16" - 18 NC x 3/4")

16шт.

17

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

18

G11909

HEAD - cylinder (Use A49124)

1шт.

A49124

HEAD - cylinder

1шт.

VTA911

X

GUIDES - valve stem (Set of 4) Not shown, see Figure 014

2шт.

19

G11360

TUBE,0.687" OD x 3.687" L

S - push rod (3-11/16" long)

8шт.

20

G46896

X

SEAL - "O" ring, push rod tube

16шт.

21

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

22

VT5058

PLUG - safety freeze (1-1/8" Hubbard)

1шт.

23

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

24

VT3228

X

GASKET - water outlet elbow

1шт.

25

G11087

ELBOW - water outlet

1шт.

26

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

VT3246

GASKET - valve cover

1шт.

30

G49504

STUD

- valve cover (3/8" x 4-5/8" with 1" thread)

1шт.

G49505

STUD

- valve cover (3/8" x 4-5/8" with 2" thread)

2шт.

31

VT3142

X

SPACER - valve cover (3/8" I.D. x 1-14/32" long)

2шт.

32

G11895

COVER - valve

1шт.

33

VT4564

X

SPACER - valve cover (3/8" I.D. x 17/32" long)

2шт.

34

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

3шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

36

VT-3545

CAP - oil filler and breather (Use A49111)

1шт.

A49111

X

CAP - oil filler and breather

1шт.
