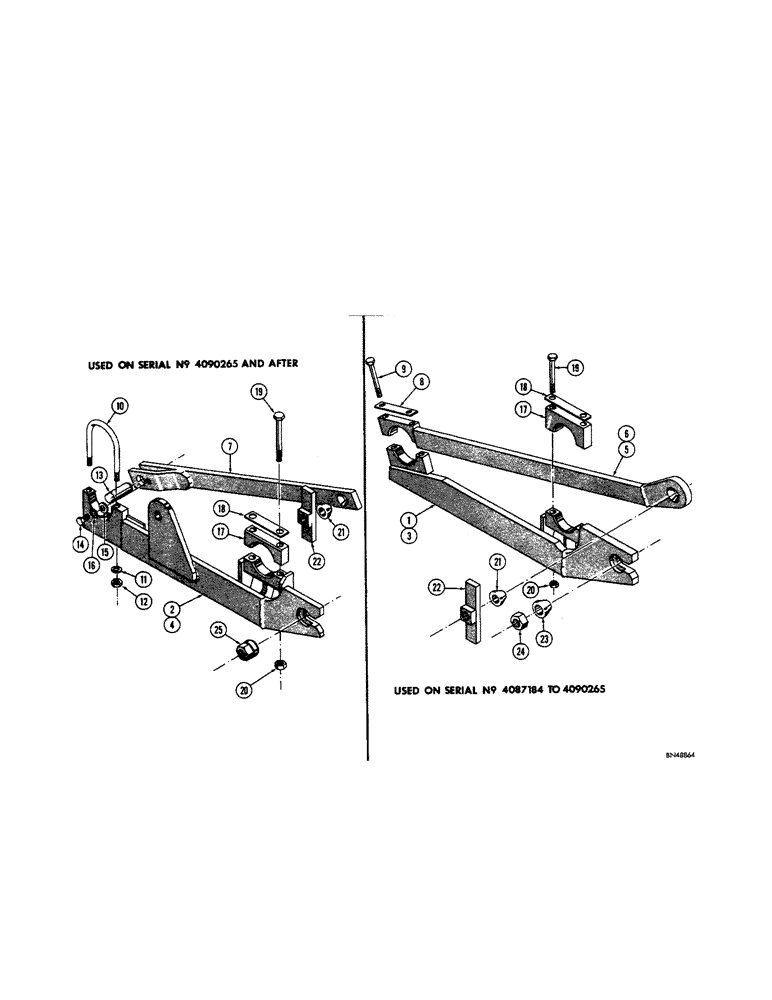

Запчасти Case 310F (254[1]) - BACKHOE MOUNTING PARTS USED ON BACKHOE SN 4087184 AND AFTER (12) - Chassis/Attachments

1

D32357

ARM - support, R.H. (Used up to SN 4090265)

1шт.

2

D33988

ARM - support, R.H. (Used on SN 4090265 and after)

1шт.

3

D32358

ARM - support, L.H. (Used up to SN 4090265)

1шт.

4

D33989

ARM - support, L.H. (Used on SN 4090265 and after)

1шт.

5

D32353

BRACE - mounting, R.H. (Used up to SN 4090265)

1шт.

6

D32354

BRACE - mounting, L.H. (Used up to SN 4090265)

1шт.

7

D33963

BRACE - mounting, R.H. & L.H. (Used on SN 4090265 and after)

2шт.

8

D26424

PLATE - locking, screw (Used up to SN 4090265) See D34086

2шт.

9

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

(Used up to S/N 4090265) See D34086 Hex, 3/4"-10 x 5", G5

4шт.

10

D34086

U-BOLT

"U" BOLT - support arm (Used on SN 4090265 and after)

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on S/N 4090265 and after 5/8"

4шт.

12

25-1010

NUT,5/8"-11, G5

Used on S/N 4090265 and after 5/8"-11, G5

4шт.

13

D33697

PIN

- mounting brace to arm (Used on SN 4090265 and after)

2шт.

14

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

(Used on S/N 4090265 and after) Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

15

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- plain (5/8") Used on SN 4090265 and after

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on S/N 4090265 and after 5/8"

2шт.

17

D31122

BLOCK

CLAMP - support arm

2шт.

18

D26238

PLATE

- support arm clamp

2шт.

19

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC x 8"

4шт.

20

230-41114

LOCK NUT,7/8"-9, GA

NUT - lock (7/8" - 9 NC)

4шт.

21

D30717

WASHER

- cone

2шт.

22

D31496

SPECIAL NUT

NUT - special, wrench and hammer

2шт.

23

D30714

WASHER

- cone (Used up to SN 4090265) See D34096

2шт.

24

25-1024

NUT,1 1/2"-6, G5

- hex. (1-1/2" - 6 NC) Used up to SN 4090265 (See D34096)

2шт.

25

D34096

NUT

- mounting (Special) Used on SN 4090265 and after

2шт.
