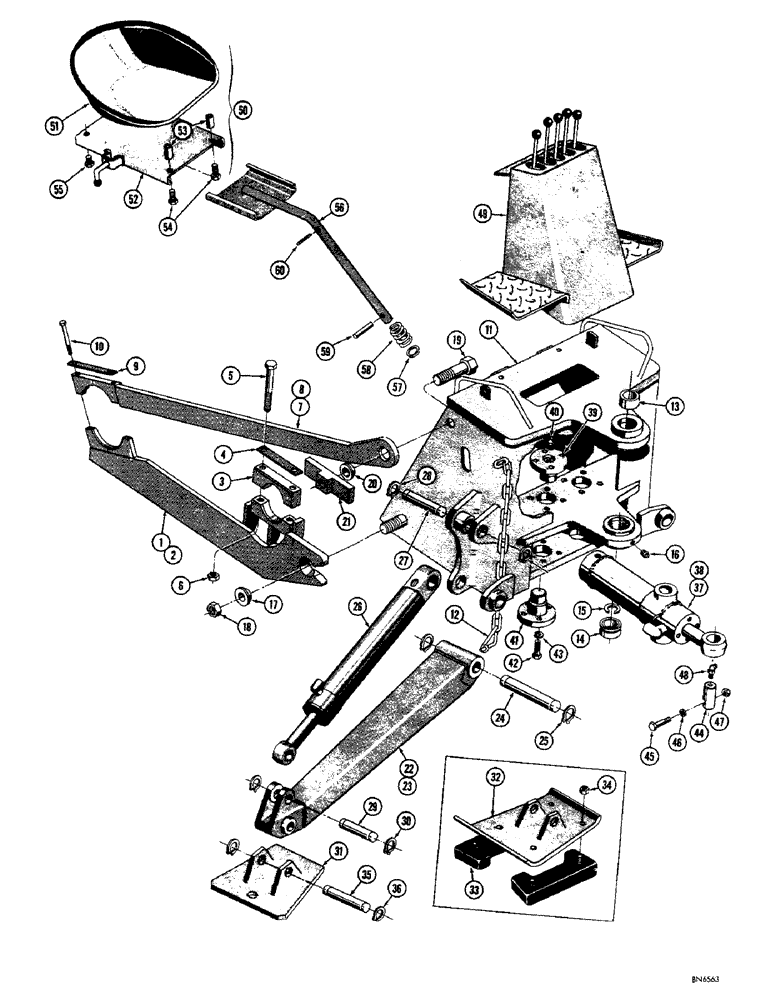

Запчасти Case 310F (234) - BACKHOE MOUNTING PARTS AND STABILIZERS (12) - Chassis/Attachments

1

D31114

ARM - support, L.H. (Used up to SN 4087184) See page 254

1шт.

2

D31113

ARM - support, R.H. (Used up to SN 4087184) See page 254

1шт.

3

D31122

BLOCK

CLAMP - support arm to final drive spacer

2шт.

4

D26238

PLATE

- locking, screw

2шт.

5

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC x 8"

4шт.

6

230-41114

LOCK NUT,7/8"-9, GA

NUT - lock (7/8" - 9 NC)

4шт.

7

D31118

BRACE - mounting frame to torque tube, L.H. (Used up to SN 4087184) See page 254

1шт.

8

D31117

BRACE - mounting frame to torque tube, R.H. (Used up to SN 4087184) See page 254

1шт.

9

D26424

PLATE - locking, screw (Used up to SN 4090265) See page 254

2шт.

10

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

(Used up to S/N 4090265) See page 254 Hex, 3/4"-10 x 5", G5

4шт.

11

D30703

FRAME - mounting

1шт.

12

D30078

CHAIN - safety lock

2шт.

13

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- upper tower pivot

1шт.

14

D23601

HOUSING

BEARING - self-aligning, lower tower pivot

1шт.

15

D24431

RING

SNAP RING - bearing retaining

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

17

D30714

WASHER

- cone (Used up to SN 4090265) See page 254

2шт.

18

25-1024

NUT,1 1/2"-6, G5

- hex. (1-1/2" - 6 NC) Used up to SN 4090265 (See page 254)

2шт.

19

D30716

BOLT

HHCS - 1-1/4" - 7 NC x 4-9/16"

2шт.

20

D30717

WASHER

- cone

2шт.

21

D31496

SPECIAL NUT

NUT - special, wrench and hammer (Mounting, Serial Range: frame-brace)

2шт.

22

D26908

SUPPORT

LEG - stabilizer, L.H.

1шт.

23

D26909

HOSE

LEG - stabilizer, R.H.

1шт.

24

D27187

AXLE PIN

PIN - stabilizer leg to mounting frame

2шт.

25

D25280

SNAP RING,#175, Ext

Ring, Snap, , D27187 pin #175, Ext

4шт.

26

D27754

CYLINDER

- stabilizer, hydraulic (See Figure 272 for breakdown)

2шт.

27

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer cylinder to mounting frame

2шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , D25079 pin #175, Ext

4шт.

29

D28037

AXLE PIN

PIN - stabilizer, Serial Range: cylinder-leg

2шт.

30

D25279

SNAP RING,M35, Int

- D28037 pin

4шт.

31

D23313

FOOT

- stabilizer, cleat (Standard)

2шт.

32

D23326

FOOT

- stabilizer, street or cemetary pad (Optional) See D23313 and 32838

2шт.

33

32838

SHOE (ASSY)

PAD - rubber, D23326 foot only (Optional)

4шт.

34

25-277

NUT - hex., high (7/16" - 20 NF) 32838 rubber pad mounting (When stock is exhausted, use D29712)

8шт.

D29712

SPECIAL NUT

- hex., high (7/16" - 20 NF) Special

8шт.

35

D26104

PIN

- stabilizer, Serial Range: leg-foot

2шт.

36

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26104 pin #125, Ext

2шт.

37

D30745

CYLINDER

- swing, hydraulic (L.H.) See page 272 for breakdown

1шт.

38

D30746

CYLINDER

- swing, hydraulic (R.H.) See page 272 for breakdown

1шт.

39

D30724

PIN

- swing cylinder to mounting frame, upper

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

41

D30725

X

PIN - swing cylinder to mounting frame, lower (Use D30724)

2шт.

D30724

PIN

- swing cylinder to mounting frame, lower

2шт.

42

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

16шт.

43

92-8

LOCK WASHER,1/2"

16шт.

44

D30761

PIN

- swing, Serial Range: cylinder-tower

2шт.

45

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

2шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

47

25-1010

NUT,5/8"-11, G5

2шт.

48

219-39

FITTING

- grease, 45 degrees (1/8" NPT)

2шт.

49

D30826

SHIELD - control valve

1шт.

50

D31309

SEAT

ASSEMBLY - backhoe operator's

1шт.

51

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

52

D31308

ADJUSTER

SLIDE ASSEMBLY - upper

1шт.

53

D31306

SPACER

2шт.

54

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

55

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

56

D31310

ROD - seat support (Use D32380)

1шт.

D32830

ROD - seat support

1шт.

57

O124GR

WASHER

- flat (1-1/32" I.D. x 1-1/2" O.D. x 7/32" thick)

1шт.

58

D25773

SPRING

- seat support rod

1шт.

59

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

PIN, 1/2" x 2 1/4", Slotted

1шт.

60

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.
