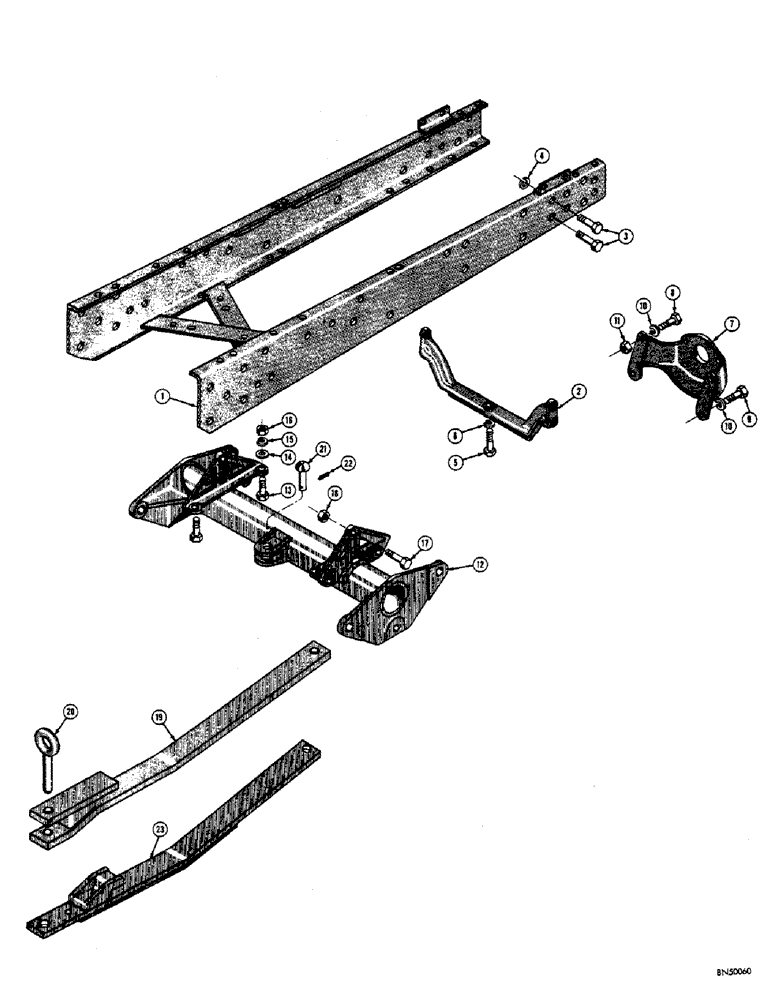

Запчасти Case 310F (006) - ENGINE FRAME, TORQUE TUBE, DRAWBAR, AND ENGINE SUPPORTS (01) - ENGINE

1

D29943

FRAME - engine, all models except 1dr. backhoe models (See D29944 and D30882)

1шт.

D29944

FRAME - engine, loader backhoe models (See D29943 and D30882)

1шт.

D30882

FRAME - engine, 36" gauge tractor only (See D29943 and D29944)

1шт.

2

D28503

MOUNTING PARTS

MOUNT - engine, front

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

G1212

MOUNT - engine, front

1шт.

8

G49039

BOLT

- ground body (5/8" - 18 NF x 2-1/2")

2шт.

9

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

12

D29754

TUBE - torque, standard 48" gauge tractor (Obsolete for service, use D34273)

1шт.

D34273

TUBE

- torque, standard 48" gauge tractor

1шт.

D29752

TUBE - torque, 36" gauge tractor (Obsolete for service, use D34271)

1шт.

D34271

TUBE

- torque, 36" gauge tractor

1шт.

D29753

TUBE - torque, 42" gauge tractor (Obsolete for service, use D34272)

1шт.

D34272

TUBE - torque, 42" gauge tractor

1шт.

D29755

TUBE - torque, 60" gauge tractor (Obsolete for service, use D34274)

1шт.

D34274

TUBE

- torque, 60" gauge tractor

1шт.

D29756

TUBE - torque, 72" gauge tractor (Obsolete for service, use D34275)

1шт.

D34275

TUBE - torque, 72" gauge tractor

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

14

33496

BRAKE LINING

SHIM - torque tube to engine frame

1шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

17

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

18

25-1012

NUT,3/4"-10, G5

2шт.

D26927

DRAWBAR - standard, complete

1шт.

19

D26895

DRAWBAR - standard

1шт.

20

13073

AXLE PIN

PIN - hitch

1шт.

21

13044

NUT

PIN - mounting, drawbar

1шт.

22

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

23

D21843

DRAWBAR - winch models only

1шт.

13109

PIN

DRAWBAR - P.T.O. models only

1шт.
