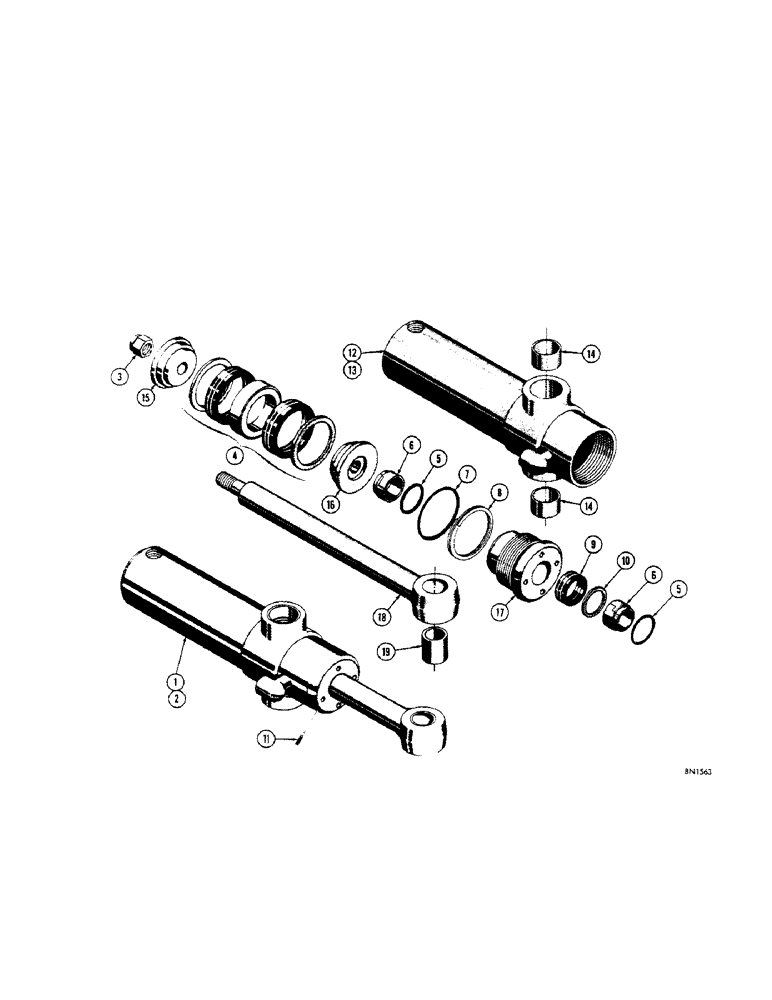

Запчасти Case 310F (272[1]) - D30745 AND D30746 BACKHOE SWING CYLINDERS (07) - HYDRAULIC SYSTEM

1

D30745

CYLINDER

- swing (R.H.) 4" I.D. x 11" stroke

1шт.

2

D30746

CYLINDER

- swing (L.H.) 4" I.D. x 11" stroke

1шт.

D30695

X

KIT - cylinder packing

1шт.

3

131-19

LOCK NUT,1"-14, GB

NUT - lock (1" - 14 NF)

1шт.

4

D28376

SEAL

PACKING - piston

1шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

6

D27432

SHIM

- piston rod

2шт.

7

O8849AB

X

SEAL - "O" ring, gland

2шт.

8

D27382

RING

- backup, gland seal

1шт.

9

D28495

PACKING

SEAL - piston rod

1шт.

10

D28499

RING

- backup, rod seal

1-3шт.

11

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

12

D30737

TUBE - cylinder (R.H.)

1шт.

13

D30738

TUBE

- cylinder (L.H.)

1шт.

14

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

- trunnion

2шт.

15

D30744

PISTON

- half, rear

1шт.

16

D30743

PISTON

- half, front

1шт.

17

D30844

GLAND

- packing

1шт.

18

D30842

ROD

- piston (1-3/4" dia.)

1шт.

19

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- piston rod

1шт.
