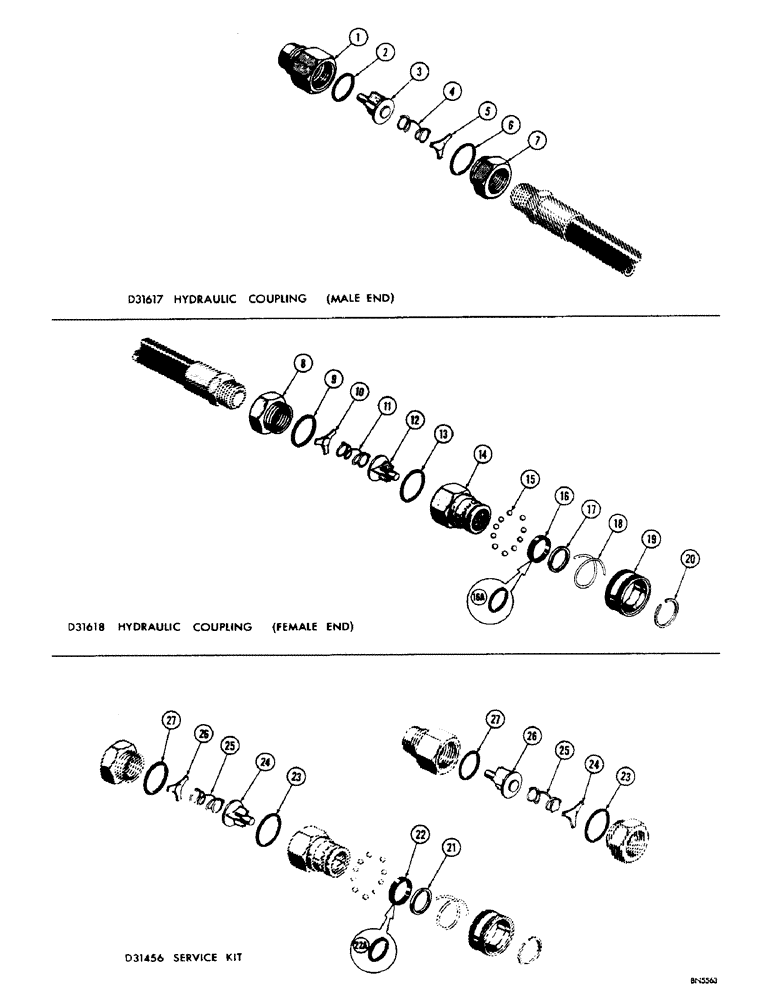

Запчасти Case 310F (264) - D31617 AND D31618 HYDRAULIC COUPLINGS, D31617 HYDRAULIC COUPLING, D31618 HYDRAULIC COUPLING (07) - HYDRAULIC SYSTEM

D31617

COUPLING, BREAK AWAY

COUPLING - hydraulic quick-disconnect, male (Snap-Tite)

1шт.

1

D31971

BODY

- male coupling

1шт.

2

D31984

SEAL

- valve

1шт.

3

D31972

VALVE

1шт.

4

D31973

HOSE

SPRING - valve

1шт.

5

D31974

RETAINER - spring

1шт.

6

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- end fitting

1шт.

7

D31975

FITTING

- end

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - hydraulic quick-disconnect, female (Snap-Tite)

1шт.

8

D31975

FITTING

- end, hydraulic coupling

1шт.

9

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- end fitting, hydraulic coupling

1шт.

10

D31974

RETAINER - spring, hydraulic coupling

1шт.

11

D31973

HOSE

SPRING - valve, hydraulic coupling

1шт.

12

D31972

VALVE, hydraulic coupling

1шт.

13

D31984

SEAL

- valve, hydraulic coupling

1шт.

14

D31976

BODY - female coupling, hydraulic

1шт.

15

D31982

KIT

BALL - kit (Includes 10 balls), hydraulic coupling

1шт.

16

D31977

SEAL

- internal, "U" packer type (See D31983), hydraulic coupling

1шт.

16a

D31983

O-RING

SEAL - internal, "O" ring type (Use D31977), hydraulic coupling

1шт.

The U-packer type internal seal should be ordered as a service replacement for couplings using an O-ring type internal seal.

1шт.

17

D31978

RING

- backup, hydraulic coupling

1шт.

18

D31979

VALVE SPRING

SPRING - sleeve, hydraulic coupling

1шт.

19

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, hydraulic coupling

1шт.

20

D31981

RING

- retaining, hydraulic coupling

1шт.

D31456

KIT

- service, D31617 and D31618 couplings, hydraulic

1шт.

21

D31978

RING

- backup, service kit for hydraulic coupling

1шт.

22

D31977

SEAL

- internal, "U" packer type, service kit for hydraulic coupling

1шт.

22a

D31983

O-RING

SEAL - internal, "O" ring type, service kit for hydraulic coupling

1шт.

The U-packer type internal seal should be ordered as a service replacement for couplings using an O-ring type internal seal.

1шт.

23

D31984

SEAL

- valve, service kit for hydraulic coupling

2шт.

24

D31972

VALVE - male and female couplings, service kit for hydraulic coupling

2шт.

25

D31973

HOSE

SPRING - valve, service kit for hydraulic coupling

2шт.

26

D31974

RETAINER - spring, service kit for hydraulic coupling

2шт.

27

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- end fitting, service kit for hydraulic coupling

2шт.
