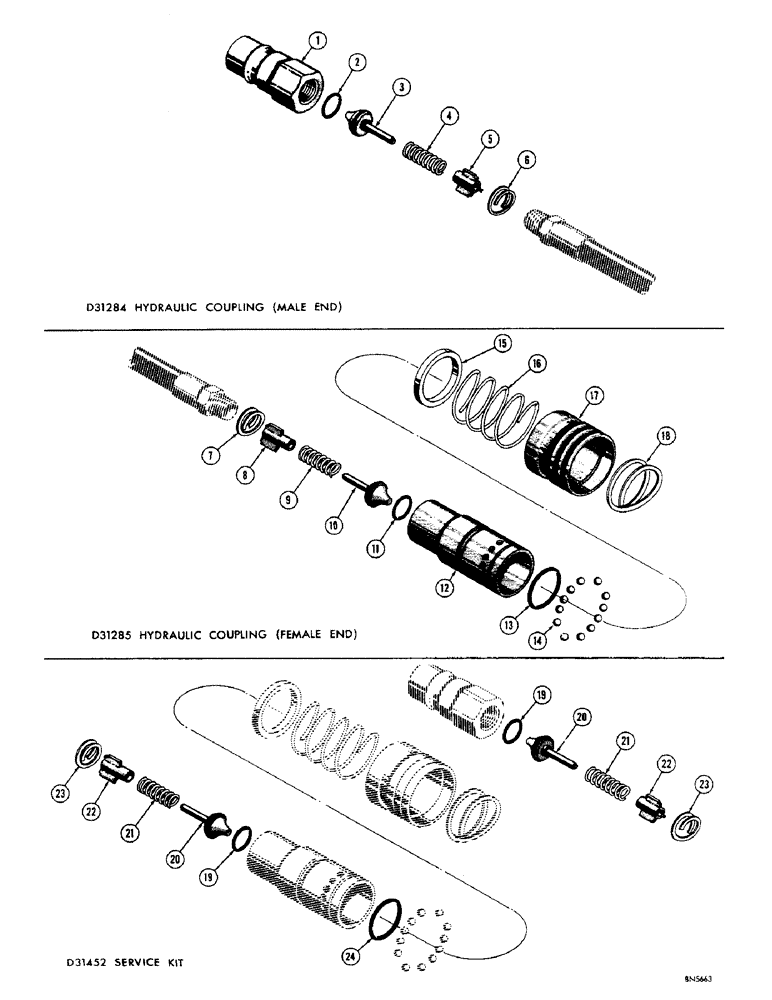

Запчасти Case 310F (262) - D31284 AND D31285 HYDRAULIC COUPLINGS, D31284 HYDRAULIC COUPLING, SERVICE KIT FOR HYDRAULIC COUPLING (07) - HYDRAULIC SYSTEM

D31284

SPARE PART

COUPLING - hydraulic quick-disconnect, male (Bruning)

1шт.

1

D31959

BODY - male coupling

1шт.

2

D31960

SEAL - poppet

1шт.

3

D31961

POPPET

1шт.

4

D31962

SPRING - poppet

1шт.

5

D31963

GUIDE - spring

1шт.

6

D31964

RING - lock

1шт.

D31285

COUPLING

- hydraulic quick-disconnect, female (Bruning)

1шт.

7

D31964

RING - lock, hydraulic coupling

1шт.

8

D31963

GUIDE - spring, hydraulic coupling

1шт.

9

D31962

SPRING - poppet, hydraulic coupling

1шт.

10

D31961

POPPET, hydraulic coupling

1шт.

11

D31960

SEAL - poppet, hydraulic coupling

1шт.

12

D31969

BODY - female coupling, hydraulic coupling

1шт.

13

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

SEAL - "O" ring, inside body, hydraulic coupling

1шт.

14

211-7

BALL,1/4" Dia

- steel, hydraulic coupling 1/4" Dia

12шт.

15

D31970

RETAINER - spring, hydraulic coupling

1шт.

16

D31967

SPRING - collar, hydraulic coupling

1шт.

17

D31966

COLLAR - ball retaining, hydraulic coupling

1шт.

18

D31965

RING

- lock, hydraulic coupling

1шт.

D31452

COUPLING

KIT - service, D31284 and D31285 couplings, hydraulic

1шт.

19

D31960

SEAL - poppet, service kit for hydraulic couplings

2шт.

20

D31961

POPPET - male and female coupling, service kit for hydraulic

2шт.

21

D31962

SPRING - poppet, service kit for hydraulic coupling

2шт.

22

D31963

GUIDE - spring, service kit for hydraulic coupling

2шт.

23

D31964

RING - lock, service kit for hydraulic coupling

2шт.

24

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

SEAL - "O" ring, inside female coupling, service kit for hydraulic

1шт.
