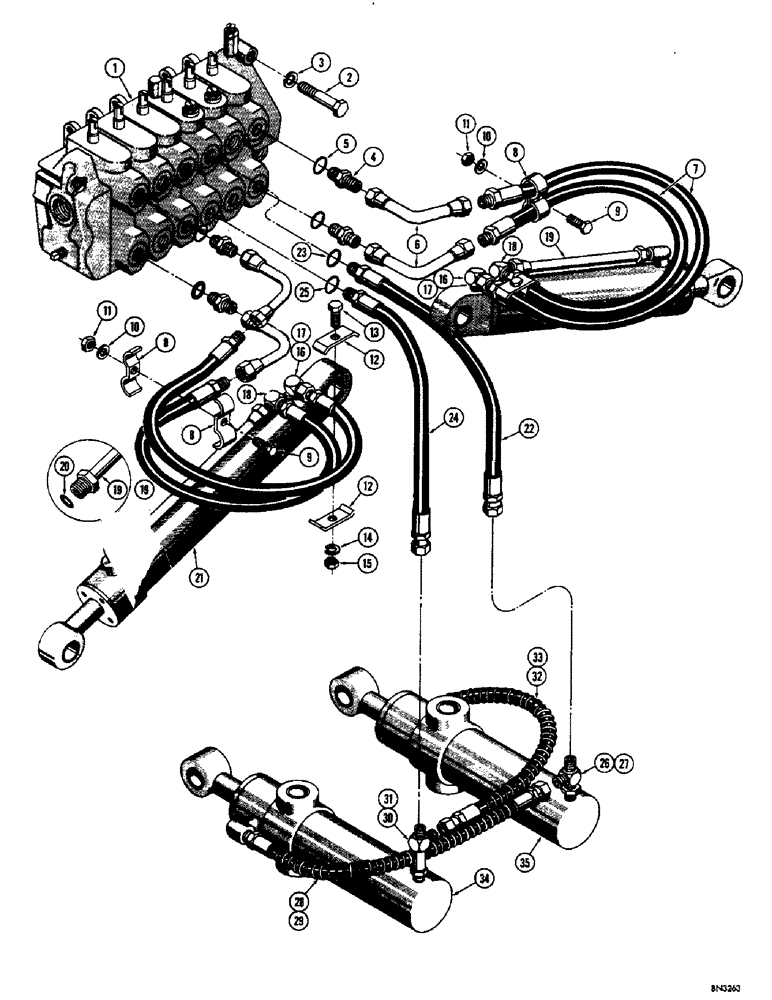

Запчасти Case 310F (256) - SWING AND STABILIZER CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D30776

VALVE - hyd. control (Parts list, Figure266)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

D31544

CONNECTOR - str. (3/4" JIC x 1/2" JIC), stabilizer cylinder hydraulics

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D31544 connector, stabilizer cylinder hydraulics

1шт.

6

D31538

TUBE

- from valve, stabilizer cylinder hydraulics

4шт.

7

D31540

HOSE

- to stab. cyl. (3/8" I.D. x 3/4" O.D. x 21-1/8"), hydraulics

4шт.

8

R15257

CLAMP

- plate, rubberized, stabilizer cylinder hydraulics

4шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", stabilizer cylinder hydraulics

2шт.

10

92-5

LOCK WASHER,5/16"

stabilizer cylinder hydraulics 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), stabilizer cylinder hydraulics

2шт.

12

32978

PLATE ASSY.

CLAMP - plate, at cyl., stabilizer hydraulics

4шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", stabilizer cylinder hydraulics

2шт.

14

92-5

LOCK WASHER,5/16"

stabilizer cylinder hydraulics 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), stabilizer cylinder hydraulics

2шт.

16

D23974

ELBOW

- adj., 90 degrees street (3/8" NPT x 5/8" JIC) Rear cyl. port, stabilizer hydraulics

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D29313 elbow, stabilizer cylinder hydraulics

1шт.

18

D26361

FITTING

ELBOW - 90 degrees, hose to tube on cyl. (3/8" NPT x 5/8" JIC), stabilizer cylinder hydraulics

2шт.

19

D27859

TUBE

- to front cyl. port, stabilizer cylinder hydraulics

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D27859 tube, stabilizer cylinder hydraulics

1шт.

21

D27754

CYLINDER

- stabilizer (Parts list, Figure 272), hydraulics

2шт.

22

D30796

HOSE ASSY.

HOSE - L.H. cyl. to upper valve port (1/2" I.D. x 7/8" O.D. x 22" long), swing hydraulics

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D30796 and D32646 hose, swing cylinder hydraulics

1шт.

24

D30792

HOSE ASSY.

HOSE - R.H. cyl. to lower valve port (1/2" I.D. x 7/8" O.D. x 23" long), swing hydraulics

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D30792 and D32647 hose, swing cylinder hydraulics

1шт.

26

D25137

TEE

- adj. male, L.H. cyl. (5/8" JIC), swing hydraulics

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25137 tee, swing cylinder hydraulics

1шт.

28

D30793

HOSE ASSY.

HOSE - tee at L.H. cyl. to front port of R.H. cyl. (1/2" I.D. x 7/8" O.D. x 23" long), swing cylinder hydraulics

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D30793 hose, swing cylinder hydraulics

1шт.

30

D24568

TEE

- adj. male, R.H. cyl. (5/8" JIC), swing hydraulics

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D24568 tee, swing cylinder hydraulics

1шт.

32

D30795

HOSE

- tee at R.H. cyl. to front port of L.H. cyl. (1/2" I.D. x 7/8" O.D. x 23" long), swing cylinder hydraulics

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D30795 hose, swing cylinder hydraulics

1шт.

34

D30745

CYLINDER

- swing, R.H. (Parts list, Figure 272), hydraulics

1шт.

35

D30746

CYLINDER

- swing, L.H. (Parts list, Figure 272), hydraulics

1шт.
