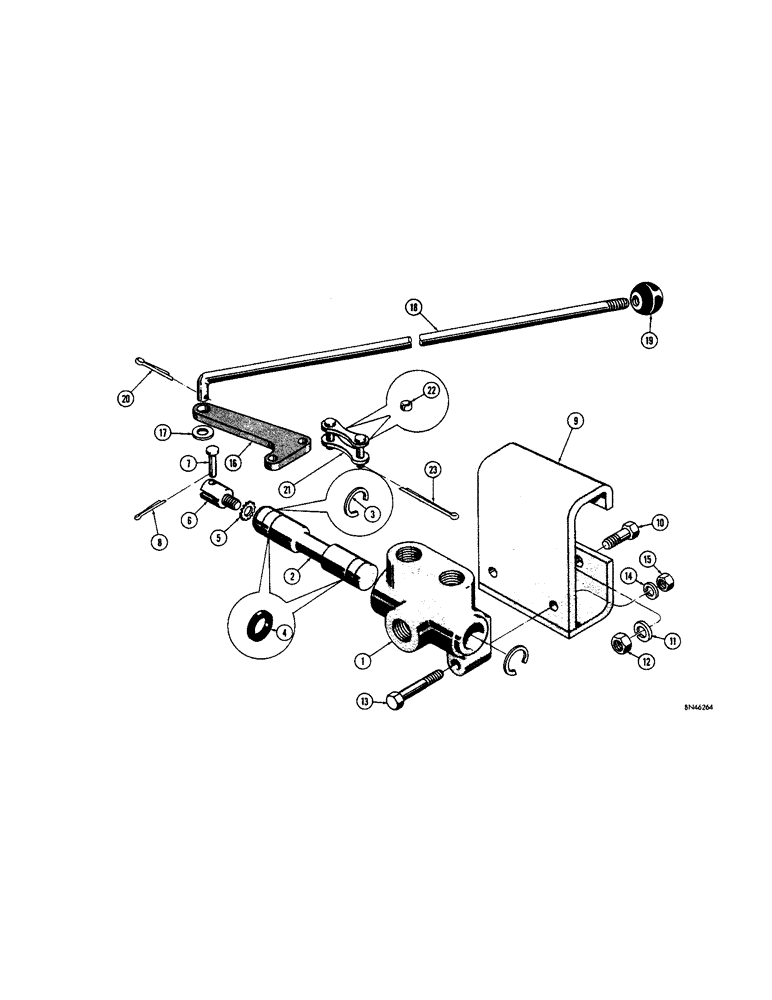

Запчасти Case 310F (254) - D34166 SELECTOR VALVE (07) - HYDRAULIC SYSTEM

D34166

VALVE - selector

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , valve spool #100, Ext, Crescent

2шт.

4

D23691

O-RING

QUAD RING - valve spool

2шт.

5

D23695

WASHER

- lock

1шт.

6

D23694

ADAPTER

CLEVIS - valve spool

1шт.

7

D23693

AXLE PIN

PIN - connecting, Serial Range: lever-clevis

1шт.

8

36625

X

PIN - cotter, D23693 pin

1шт.

9

D34175

BRACKET - valve mounting

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

16

D27656

LEVER - control rod to selector valve

1шт.

17

95-6

WASHER,3/8"

- flat () 3/8"

1шт.

18

D26709

ROD

- control

1шт.

19

70213

KNOB

- control rod

1шт.

20

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Control rod to control lever 1/8" x 3/4"

1шт.

21

D23696

DRAG LINK

LINK - connecting, control lever to mounting bracket

1шт.

22

D34242

SPACER

- connecting link (7/32" long)

1шт.

23

D23697

X

PIN - cotter, connecting link

1шт.
