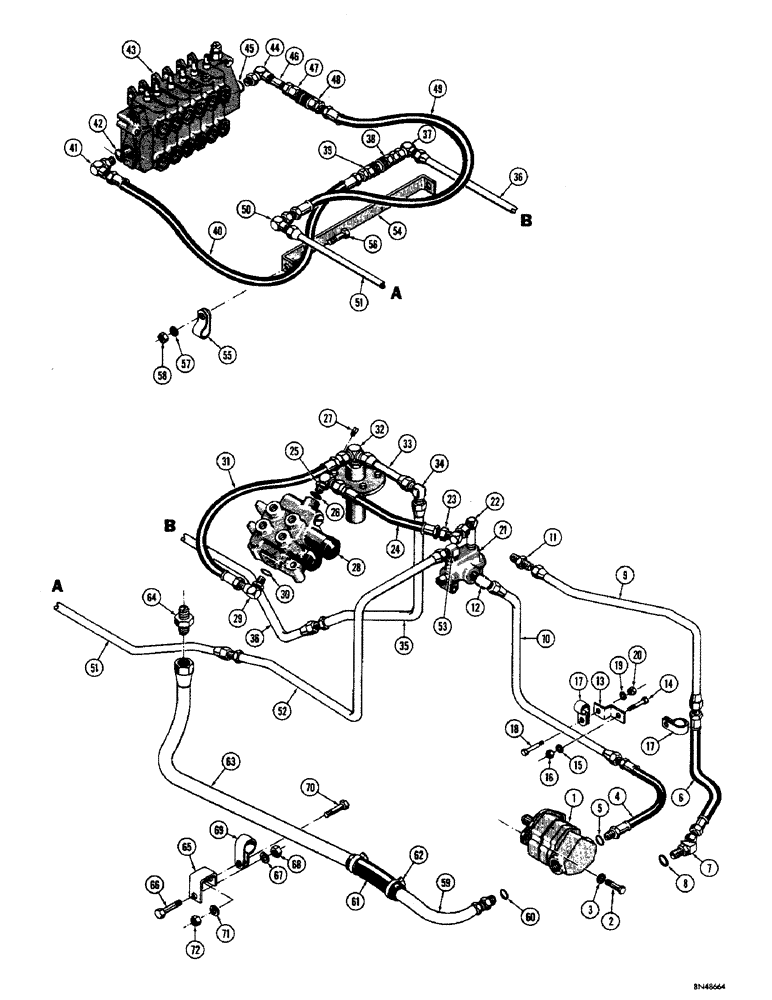

Запчасти Case 310F (250) - BACKHOE PRIMARY HYDRAULIC SYSTEM (DOZER MODELS) (07) - HYDRAULIC SYSTEM

1

D27925

STUD

PUMP - hydraulic, 17-1/2 G.P.M. at 1850 R.P.M. (See Figure 148 for breakdown)

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D25130

HOSE - pump to valve inlet, front section (Gas models only)

1шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25130 hose

1шт.

6

D29604

HOSE - pump to valve inlet, front section (Diesel models only)

1шт.

7

D29608

ELBOW - female swivel, 45 degrees (1" JIC x 7/8" JIC) Diesel models only

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D29608 elbow

1шт.

9

D34167

TUBE - pump to selector valve (Diesel models only)

1шт.

10

D34169

TUBE - pump to selector valve (Gas models only)

1шт.

11

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - 3/4" NPT x 1" JIC (Diesel models only)

1шт.

12

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees (1" JIC x 3/4" NPT) Gas models only

1шт.

13

D27673

BRACKET - tube clamp (Gas models only)

1шт.

14

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

25-1010

NUT,5/8"-11, G5

1шт.

17

D25156

CLAMP

- tube

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Gas models only) Use timing gear cover bolts on diesel models) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

19

92-5

LOCK WASHER,5/16"

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

21

D34166

VALVE - selector (See Figure 254 for breakdown)

1шт.

22

D34165

ELBOW - 90 degrees (1" JIC x 3/4" NPT) Long

1шт.

23

D25183

ELBOW

- 90 degrees (1" JIC x 1" JIC)

1шт.

24

D34173

HOSE - selector valve to dozer valve

1шт.

25

D34259

ELBOW - 90 degrees, adjustable (1" JIC x 7/8" JIC)

1шт.

26

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D34259 elbow

1шт.

27

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

PLUG - pipe, sq. head (1/8" NPT)

1шт.

28

D25450

VALVE - control (Dozer models only) See Figure 152 for breakdown

1шт.

29

D25353

ELBOW - 90 degrees (3/4" NPT x 7/8" JIC)

1шт.

30

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25353 elbow

1шт.

31

D28123

HOSE - dozer, Serial Range: valve-reservoir

1шт.

32

D34164

TEE - lateral

1шт.

33

D25189

TUBE - return, backhoe to reservoir (Front section)

1шт.

34

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degrees (1" JIC x 1" JIC)

1шт.

35

D28281

TUBE - return, backhoe to reservoir (Center section)

1шт.

36

D31176

TUBE

- return, backhoe to reservoir (Rear section)

1шт.

37

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees (1" JIC x 3/4" NPT)

1шт.

38

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male (Snap-Tite) See Figure 264 for breakdown

1шт.

39

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female (Snap-Tite) See Figure 264 for breakdown

1шт.

40

D31619

HOSE - backhoe valve to reservoir return tube

1шт.

41

D26463

FITTING

ELBOW - 90 degrees (1" JIC x 3/4" NPT)

1шт.

42

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D26463 elbow

1шт.

43

D30776

VALVE - control, backhoe (See Figure266 for breakdown)

1шт.

44

D26463

FITTING

ELBOW - 90 degrees (1" JIC x 3/4" NPT)

1шт.

45

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D26463 elbow

1шт.

46

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (1/2" x 2")

1шт.

47

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male (Snap-Tite) See Figure 264 for breakdown

1шт.

48

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female (Snap-Tite) See Figure 264 for breakdown

1шт.

49

D31621

HOSE - pressure, backhoe valve to selector valve

1шт.

50

D25183

ELBOW

- 90 degrees (1" JIC x 1" JIC)

1шт.

51

D31177

TUBE - pressure, selector valve to backhoe valve (Rear section)

1шт.

52

D34171

TUBE - pressure, selector valve to backhoe valve (Front section)

1шт.

53

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees (1" JIC x 3/4" NPT)

1шт.

54

D31638

BRACKET - tube clamp

1шт.

55

D25157

CLAMP - tube

2шт.

56

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

57

92-5

LOCK WASHER,5/16"

2шт.

58

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

59

D25144

STEM - hose, reservoir to pump (Front section)

1шт.

60

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D25144 hose stem

1шт.

61

D23645

HOSE

- low pressure, reservoir to pump (Center section)

1шт.

62

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

63

D26690

TUBE - reservoir to pump (Rear section)

1шт.

64

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight male (1-1/4" JIC x 1-1/4" NPT)

1шт.

65

37753

BUSHING

BRACKET - tube clamp

1шт.

66

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

67

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

68

25-1010

NUT,5/8"-11, G5

1шт.

69

D25156

CLAMP

- tube

1шт.

70

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

71

92-5

LOCK WASHER,5/16"

1шт.

72

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.
