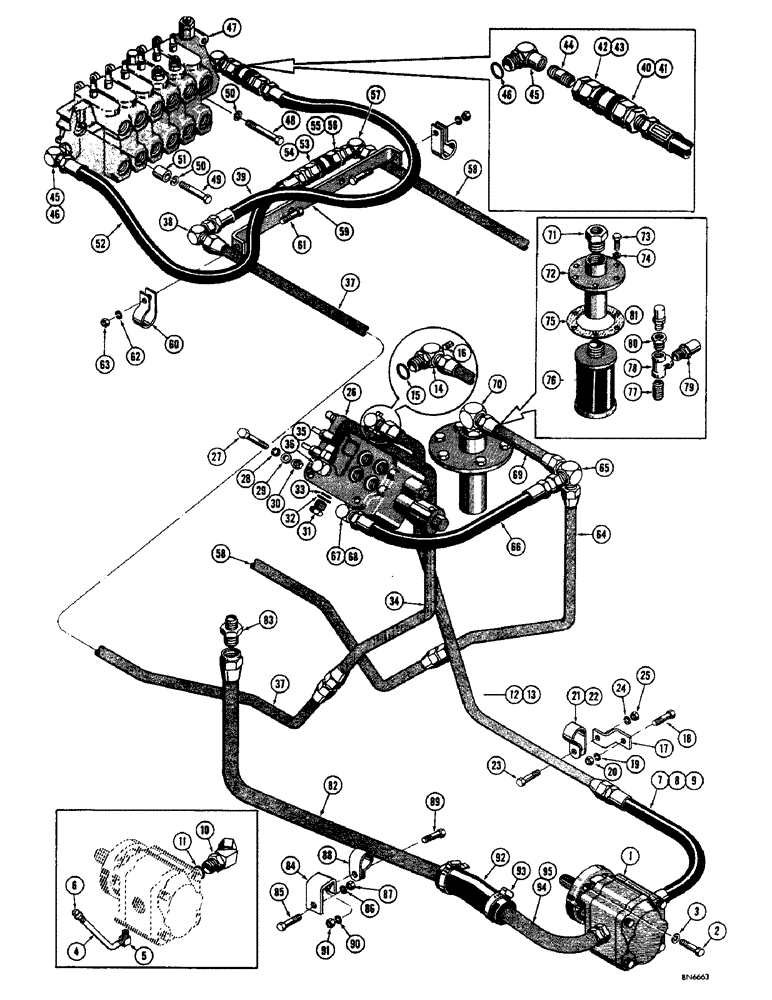

Запчасти Case 310F (246) - BACKHOE PRIMARY HYDRAULIC SYSTEM (LOADER MODELS) (07) - HYDRAULIC SYSTEM

1

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, 18-1/2 G.P.M. at 1850 pump R.P.M. (1850 engine R.P.M.) See Figure 144 for breakdown

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D28087

TUBE - pump lubrication

1шт.

5

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degrees (1/8" NPT female x 1/8" NPT male)

1шт.

6

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - straight grease, female (1/8" NPT)

1шт.

7

D25130

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 14") Gas models only (See D29604)

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25130 hose (Not shown)

1шт.

9

D29604

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 18-1/2") Diesel models only (See D25130)

1шт.

10

D29608

ELBOW - female swivel, 45 degrees (1" JIC female x 7/8" JIC male) Diesel models only

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D29608 elbow

1шт.

12

D26688

TUBE - pump to valve inlet, rear section (Gas models only) See D29606

1шт.

13

D29606

TUBE - pump to valve inlet, rear section (Diesel models only) See D26688

1шт.

14

D26683

TEE - service (3/4" JIC male x 1" JIC male x 1/4" NPT female)

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D26683 service tee

1шт.

16

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

17

D27673

BRACKET - tube clamp (Gas models only)

1шт.

18

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

25-1010

NUT,5/8"-11, G5

1шт.

21

D25157

CLAMP - tube (Gas models only)

1шт.

22

D25156

CLAMP

- tube (Diesel models only)

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Gas models only) Use timing gear cover bolt on diesel models Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

26

D29615

VALVE - control, loader (See Figure 154 for breakdown)

1шт.

27

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/8" O.D. 5/64" thick) 3/8"

3шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

31

D25783

PLUG - special, high pressure carry-over (3/4" JIC)

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, large (D25783 plug)

1шт.

33

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, small (D25783 plug)

1шт.

34

D28280

TUBE

- pressure line, loader control valve to backhoe control valve (Front section)

1шт.

35

D25135

X

ELBOW - male, 90 degrees (3/4" JIC x 1" JIC)

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25135 elbow

1шт.

37

D31177

TUBE - pressure line, loader control valve to backhoe control valve (Center section)

1шт.

38

D25183

ELBOW

- swivel, 90 degrees (1" JIC male x 1" JIC female)

1шт.

39

D31621

HOSE - pressure line, loader control valve to backhoe control valve (Rear section) (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

40

D31285

COUPLING

- quick-disconnect, female (Bruning) See page 262 for breakdown (See D31618)

1шт.

41

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female (Snap-Tite) See page 264 for breakdown (See D31285)

1шт.

42

D31284

SPARE PART

COUPLING - quick-disconnect, male (Bruning) See page 262 for breakdown (See D31617)

1шт.

43

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male (Snap-Tite) See page 264 for breakdown (See D31284)

1шт.

44

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe (1/2" x 2") Coupling to elbow in L.H. port of backhoe control valve

1шт.

45

D26463

FITTING

ELBOW - adjustable, 90 degrees (1" JIC x 3/4" NPT)

2шт.

46

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D26463 elbow

1шт.

47

D30776

VALVE - control, backhoe (See Figure 266 for breakdown)

1шт.

48

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

2шт.

49

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

1шт.

50

92-6

LOCK WASHER,3/8"

3шт.

51

VP472

SPACER - valve mounting

1шт.

52

D31619

HOSE - return line, backhoe valve outlet to lateral tee (Rear section) (3/4" I.D. x 1-5/32" O.D. x 32")

1шт.

53

D31285

COUPLING

- quick-disconnect, female (Bruning) See Figure 262 for breakdown (See D31618)

1шт.

54

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female (Snap-Tite) See Figure 264 for breakdown (See D31285)

1шт.

55

D31284

SPARE PART

COUPLING - quick-disconnect, male (Bruning) See See 262 for breakdown (See D31617)

1шт.

56

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male (Snap-Tite) See Figure 264 for breakdown (See D31284)

1шт.

57

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (1" JIC x 3/4" NPT)

1шт.

58

D31176

TUBE

- return line, backhoe valve outlet to lateral tee (Center section)

1шт.

59

D31638

BRACKET - tube clamp

1шт.

60

D25157

CLAMP - tube

2шт.

61

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.

63

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

64

D28281

TUBE - backhoe control valve to lateral tee, front section

1шт.

65

D26121

TEE - lateral, backhoe control valve and loader control valve return lines to reservoir tube (1" JIC male)

1шт.

66

D28123

HOSE - loader control valve outlet to lateral tee (3/4" I.D. x 1-1/4" O.D. x 18-1/4")

1шт.

67

D25354

ELBOW

- adjustable, 90 degrees female (3/4" JIC male x 3/4" NPT female)

1шт.

68

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25354 elbow

1шт.

69

D25189

TUBE - lateral, Serial Range: tee-reservoir

1шт.

70

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (1" JIC x 3/4" NPT)

1шт.

71

221-69

BUSHING

- reducing pipe, filter inlet (1-1/4" NPT x 3/4" NPT)

1шт.

72

D26685

CAP - inlet, oil filter

1шт.

73

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

6шт.

74

D29513

WASHER - sealing, nylon

6шт.

75

36321

GASKET

- oil filter inlet cap

1шт.

76

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

77

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8")

1шт.

78

221-431

TEE

- pipe (1/4" NPT x 1/4" NPT x 3/8" NPT)

1шт.

79

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

80

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing pipe (1/4" NPT x 1/8" NPT)

1шт.

81

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

82

D26690

TUBE - reservoir to pump, rear section

1шт.

83

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight male (1-1/4" JIC x 1-1/4" NPT)

1шт.

84

37753

BUSHING

BRACKET - tube clamp

1шт.

85

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

86

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87

25-1010

NUT,5/8"-11, G5

1шт.

88

D25156

CLAMP

- tube

1шт.

89

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

90

92-5

LOCK WASHER,5/16"

1шт.

91

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

92

D23645

HOSE

- low pressure, reservoir to pump (Center section) (1-1/4" I.D. x 2" O.D. x 5")

1шт.

93

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

94

D25144

STEM - hose, reservoir to pump (Front section)

1шт.

95

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D25144 hose stem

1шт.
