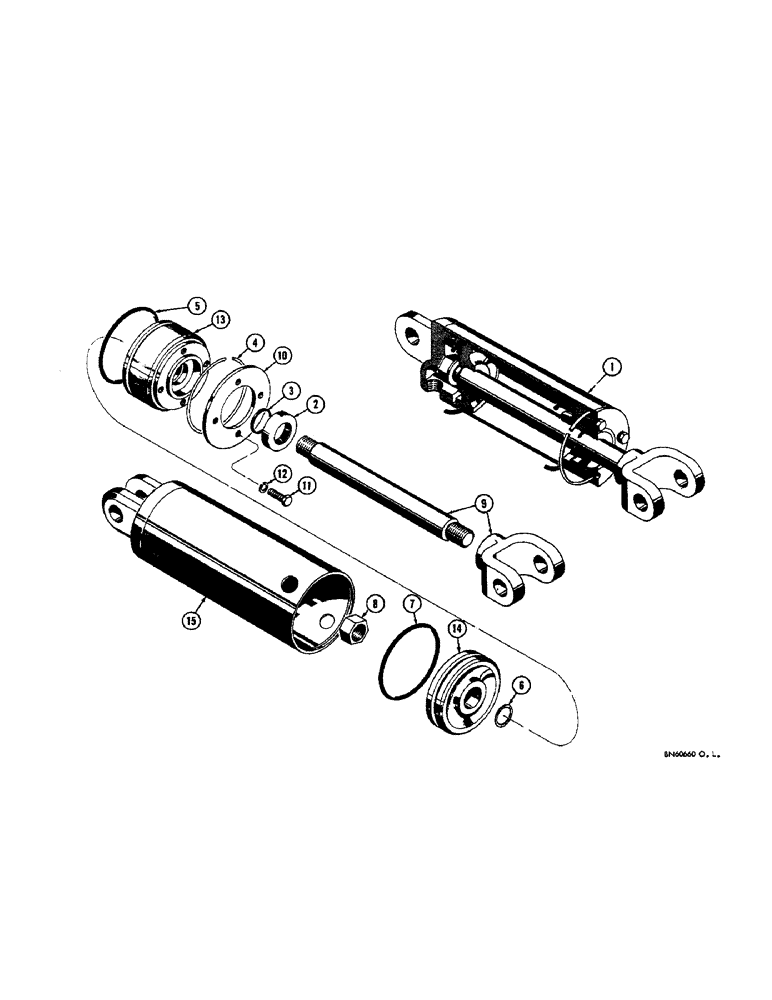

Запчасти Case 310F (230[1]) - A8282 THREE POINT HITCH HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

A8282

CYLINDER - three point hitch, hydraulic (4" I.D. x 6" stroke)

1шт.

A24416

X

KIT - cylinder

1шт.

2

O3869AB

X

SEAL - wiper, piston rod

1шт.

3

A11251

SEALING RING

- "O" ring, piston rod

1шт.

4

O9265AB

X

SNAP RING - cylinder head

1шт.

5

O8365AB

X

SEAL - "O" ring, cylinder head

1шт.

6

O8345AB

X

GASKET - piston rod

1шт.

7

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

8

131-369

LOCK NUT,7/8"-14, GA

NUT - lock (7/8" - 14 NF)

1шт.

9

4416AA

ROD AND YOKE - piston (1-1/8" dia.)

1шт.

10

A11249

CLAMP - cylinder head

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

A11248

HEAD

- cylinder

1шт.

14

A8968

PISTON

- cylinder

1шт.

15

A11247

TUBE AND CAP - cylinder (4" I.D.)

1шт.
