Запчасти Case 310F (226) - B3785AA REMOTE HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

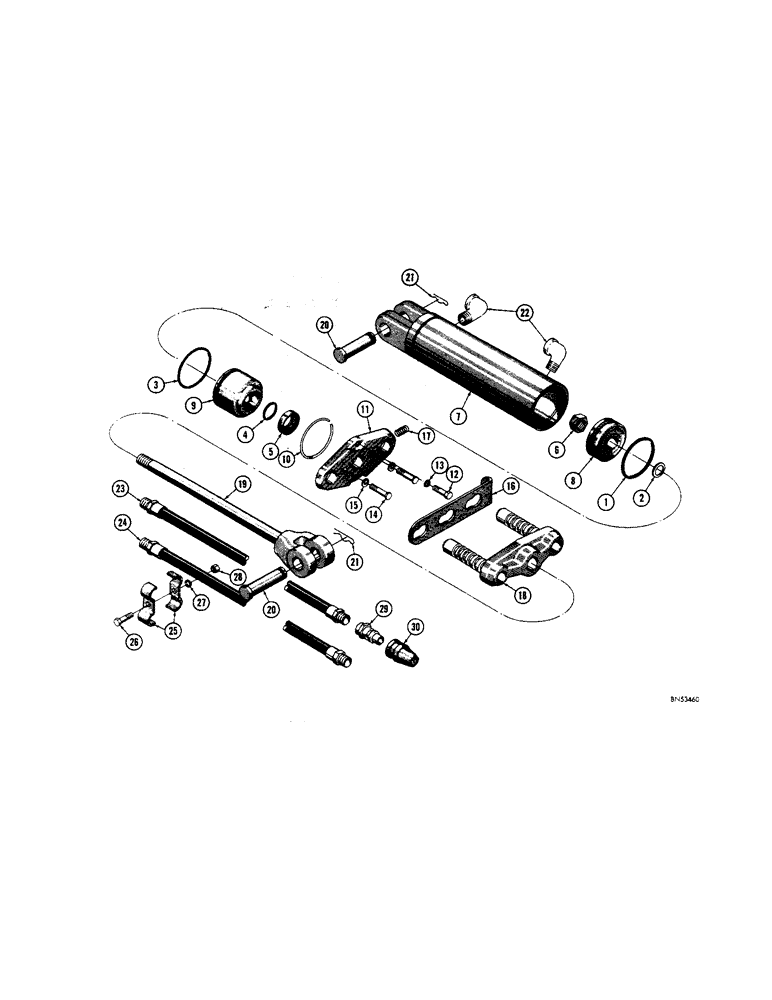

Схема запчастей Case 310F - (226) - B3785AA REMOTE HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

B3785AA

CYLINDER - remote, hydraulic (3-1/4" I.D. x 8" stroke)

1шт.

A24414

KIT

- cylinder

1шт.

1

O8342AB

X

SEAL - "O" ring, piston

1шт.

2

O8345AB

X

GASKET - piston rod

1шт.

3

O8347AB

X

SEAL - "O" ring, head

1шт.

4

O8346AB

X

SEAL - "O" ring, piston rod

1шт.

5

O3869AB

X

SEAL - wiper, piston rod

1шт.

6

131-369

LOCK NUT,7/8"-14, GA

NUT - lock (7/8" - 14 NF)

1шт.

7

4246AA

TUBE AND CAP - cylinder

1шт.

8

6243A

PISTON - cylinder

1шт.

9

6187A

HEAD - cylinder, inner

1шт.

10

O9303AB

X

SNAP RING - cylinder head

1шт.

11

O8354

GUIDE - limit stop pin

1шт.

12

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

O8601AB

X

SCREW - stop latch

2шт.

15

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

16

3859AA

X

LATCH - limit stop

1шт.

17

O8602AB

X

SPRING - limit stop latch

1шт.

18

3756AA

STOP AND PIN - limit

1шт.

19

4417AA

ROD - piston (1-1/8" dia.)

1шт.

20

O8361AB

X

PIN - mounting, cylinder

2шт.

21

VC1419

X

PIN - hair pin, cotter

2шт.

22

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees (1/2" NPT)

2шт.

23

A20816

HOSE

- coupling to remote cylinder, front (106" long)

1шт.

24

A20817

HOSE

- coupling to remote cylinder, rear (118" long)

1шт.

25

O8681AB

X

CLAMP - hose

2шт.

26

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

29

4025AA

X

COUPLING - pull behind, male (Parts list, Figure 224)

2шт.

30

4026AA

X

COUPLING - pull behind, female (Parts list, figure 224)

2шт.

Выбрано товаров: 32
