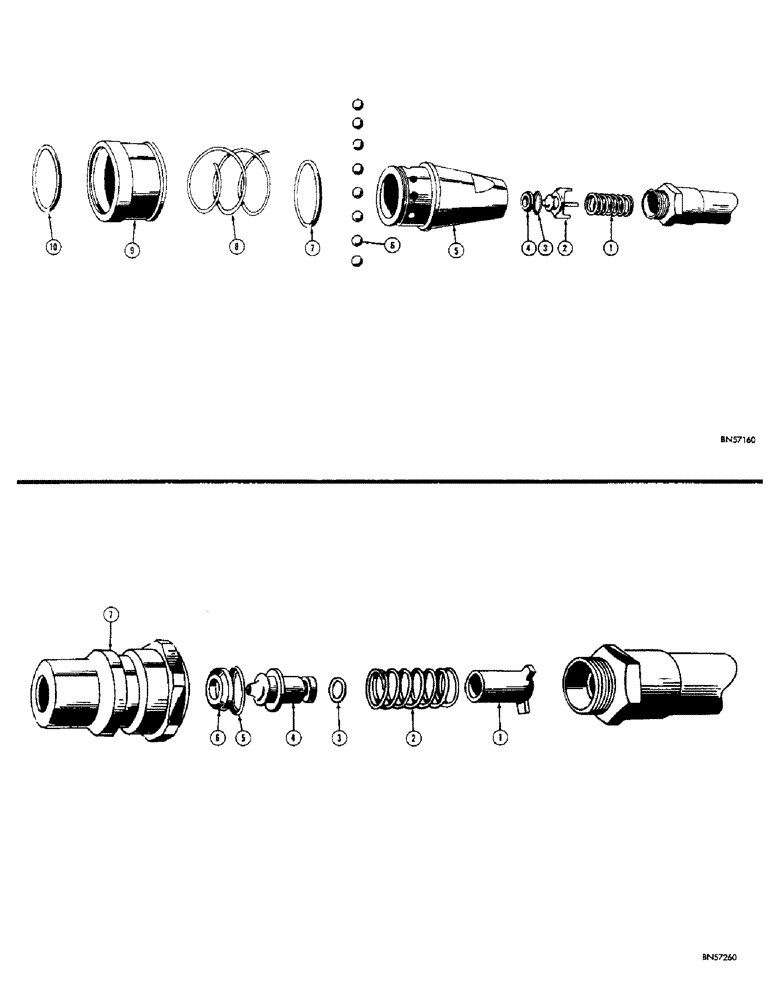

Запчасти Case 310F (224[2]) - ADAPTERS FOR PULL BEHIND COUPLINGS (07) - HYDRAULIC SYSTEM

4026AA

X

COUPLING - pull behind, female (Service kit, Figure 226)

2шт.

1

A11324

SPRING

- coupling piston

1шт.

2

6119A

X

PISTON - socket

1шт.

3

A11325

X

RETAINER - seal

1шт.

4

O8372AB

X

SEAL - piston

1шт.

5

O8371AB

BODY - female coupling

1шт.

6

211-7

BALL,1/4" Dia

- steel, socket locking 1/4" Dia

8шт.

7

O8377AB

X

SEAL - "O" ring, socket body

1шт.

8

O8379AB

X

SPRING - ball retaining sleeve

1шт.

9

O8378AB

X

SLEEVE - ball retaining

1шт.

10

O8380AB

X

SNAP RING - socket rubber

1шт.

4025AA

X

COUPLING - pull behind, male (Service kit, Figure 226)

2шт.

1

A9631ASY

SPARE PART

- coupling plug piston

1шт.

2

O8375AB

X

SPRING - piston

1шт.

3

O8386AB

X

SEAL - "O" ring, piston sleeve

1шт.

4

O8859AB

X

PISTON - coupling plug

1шт.

5

A11325

X

RETAINER - seal

1шт.

6

O8372AB

X

SEAL - piston

1шт.

7

O8381AB

X

BODY - male plug coupling

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- connecting, Case hydraulic hose to 1/2" female pipe connection (1/2" male pipe thread x 7/8" - 18 NF female thread)

1шт.

O9466AB

X

ADAPTER - connecting, Case pull behind couplings to hydraulic hose lines having 1/2" pipe thread (1/2" female pipe thread x 7/8" - 18 NF male thread)

1шт.
