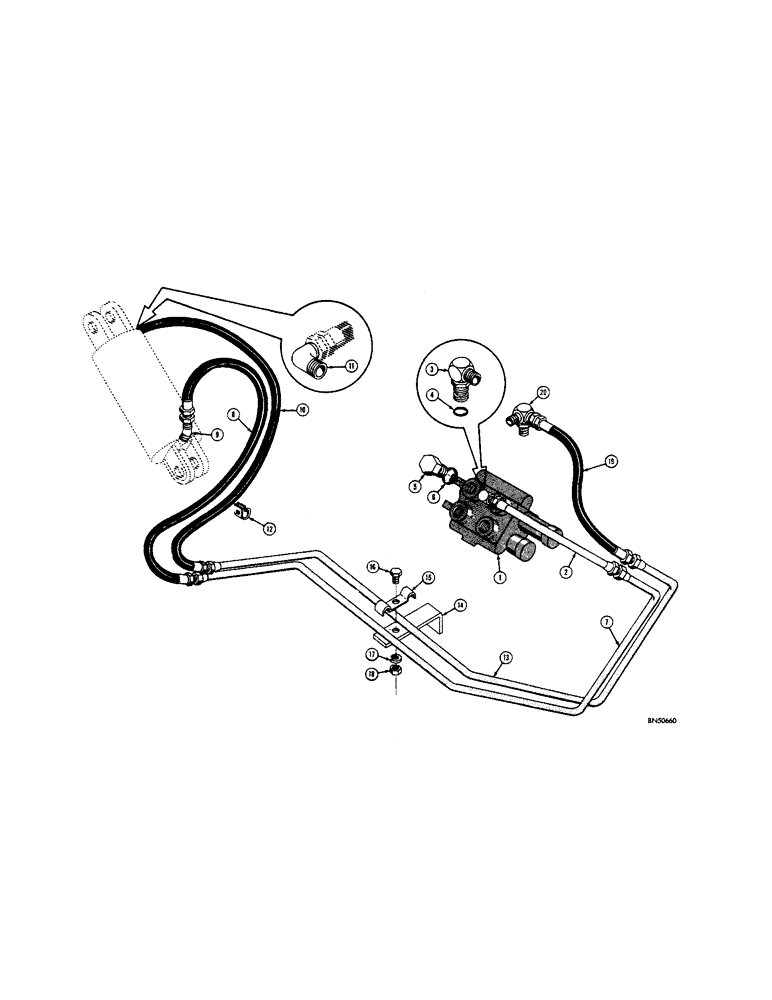

Запчасти Case 310F (218) - THREE POINT HITCH HYDRAULICS, (WITH DRAWBAR TRACTOR OR PULL BEHIND HYDRAULICS) (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See Figure 152 for breakdown)

1шт.

2

D27025

TUBE - control valve to lower cylinder port, front section

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

5

86512512

PLUG,7/8" - 14 ORB

(5/8" JIC) Hex Hd, 7/8"-14 ORB

3шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5157 plug

1шт.

7

D26710

TUBE - control valve to lower cylinder port, center section

1шт.

8

D28683

FLEXIBLE HOSE

HOSE - control valve to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 29-1/4")

1шт.

9

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

1шт.

10

D28111

HOSE ASSY.

HOSE - upper cylinder port to filter, rear section (1/2" I.D. x 7/8" O.D. x 39")

1шт.

11

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

1шт.

12

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose retaining

1шт.

13

D26712

TUBE - upper cylinder port to filter, center section

1шт.

14

D26714

BRACKET - tube support

1шт.

15

17179

CLAMP - tube

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

19

D29365

HOSE - upper cylinder port to filter, front section (1/2" I.D. x 15/16" O.D. x 17-1/4")

1шт.

20

D26811

ELBOW - 90 degrees male, special (3/4" NPT x 5/8" JIC x 3/4" JIC)

1шт.
