Запчасти Case 310F (208) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

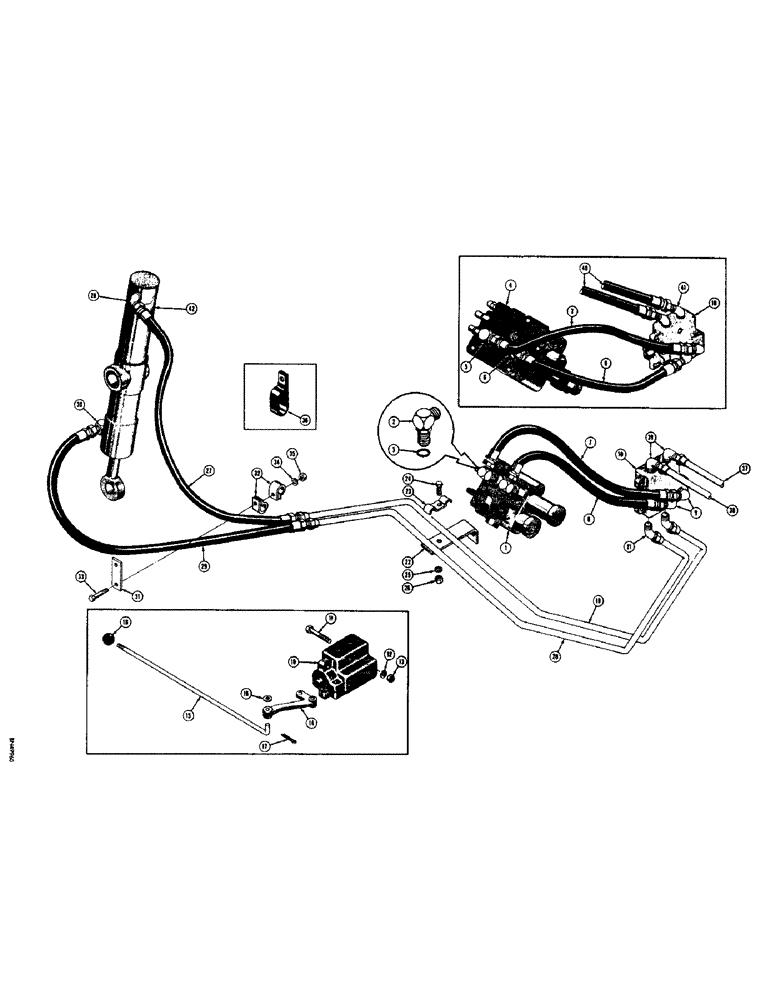

Схема запчастей Case 310F - (208) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D25450

VALVE - control (See Figure 152 for breakdown) Dozer models only

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (L.H. valve ports) (5/8" JIC x 5/8" JIC) Dozer models only

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

4

D29615

VALVE - control (See Figure154 for breakdown) Loader models only

1шт.

5

D23143

FITTING

ELBOW - male, 90 degrees (Extra long) R.H. rear valve port (5/8" JIC x 5/8" JIC) Loader models only

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23143 elbow (Not shown)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (R.H. front valve port) (5/8" JIC x 5/8" JIC) Loader models only

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow (Not shown)

1шт.

7

D28115

HOSE

- rear control valve port to L.H. front diversion valve port (1/2" I.D. x 7/8" O.D. x 27-1/2")

1шт.

8

D28117

HOSE

- front control valve port to R.H. front diversion valve port (1/2" I.D. x 7/8" O.D. x 23-1/2")

1шт.

9

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (3/4" NPT x 5/8" JIC)

2шт.

10

D26726

VALVE

- diversion (See Figure 146 for breakdown)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

D27656

HANDLE - control, diversion valve

1шт.

15

D26709

ROD

- control, diversion valve handle

1шт.

16

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

70213

KNOB

- control rod

1шт.

19

D26712

TUBE - L.H. bottom diversion valve port to upper cylinder port, front section (Dozer models only) See D29104

1шт.

D29104

TUBE - L.H. bottom diversion valve port to upper cylinder port, front section (Loader models only) See D26712

1шт.

20

D26710

TUBE - R.H. bottom diversion valve port to lower cylinder port, front section (Dozer models only) See D29106

1шт.

D29106

TUBE - R.H. bottom diversion valve port to lower cylinder port, front section (Loader models only) See D26710

1шт.

21

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (3/4" NPT x 3/4" JIC)

2шт.

22

D26714

BRACKET - tube

1шт.

23

17179

CLAMP - tube

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

27

D28111

HOSE ASSY.

HOSE - L.H. bottom diversion valve port to upper cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 39")

1шт.

28

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 45 degrees (Upper cylinder port) (5/8" JIC x 5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5137 elbow (Not shown)

1шт.

29

D27073

HOSE

- R.H. bottom diversion valve port to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 26-1/2") Dozer models only (See D28111)

1шт.

D28111

HOSE ASSY.

HOSE - R.H. bottom diversion valve port to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 39") Loader models only (See D27073)

1шт.

30

R20839

FITTING

ELBOW - male, 90 degrees (Special restrictor) Lower cylinder port

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, R20839 elbow (Not shown)

1шт.

31

D20307

BRACKET - hose clamp (Dozer models only) See D29118

2шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose (Dozer models only) See D29118

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(D20302 clamp) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

D20302 clamp 3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) D20302 clamp

1шт.

36

D29118

CLAMP - hose (Loader models only) See D20307 and D20302

1шт.

37

D26729

TUBE - L.H. top diversion valve port to dozer manifold (Dozer models only)

1шт.

38

D26727

TUBE - R.H. top diversion valve port to dozer manifold (Dozer models only)

1шт.

39

D29569

X

ELBOW - male, 90 degrees (3/4" NPT x 5/8" JIC)

2шт.

40

D27478

HOSE ASSY.

HOSE - top diversion valve ports to loader lift cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 22") Loader models only

2шт.

41

D29569

X

ELBOW - male, 90 degrees (3/4" NPT x 5/8" JIC)

2шт.

42

D31185

CYLINDER - Scarifier, hydraulic (See Figure 204(1) for breakdown)

1шт.
