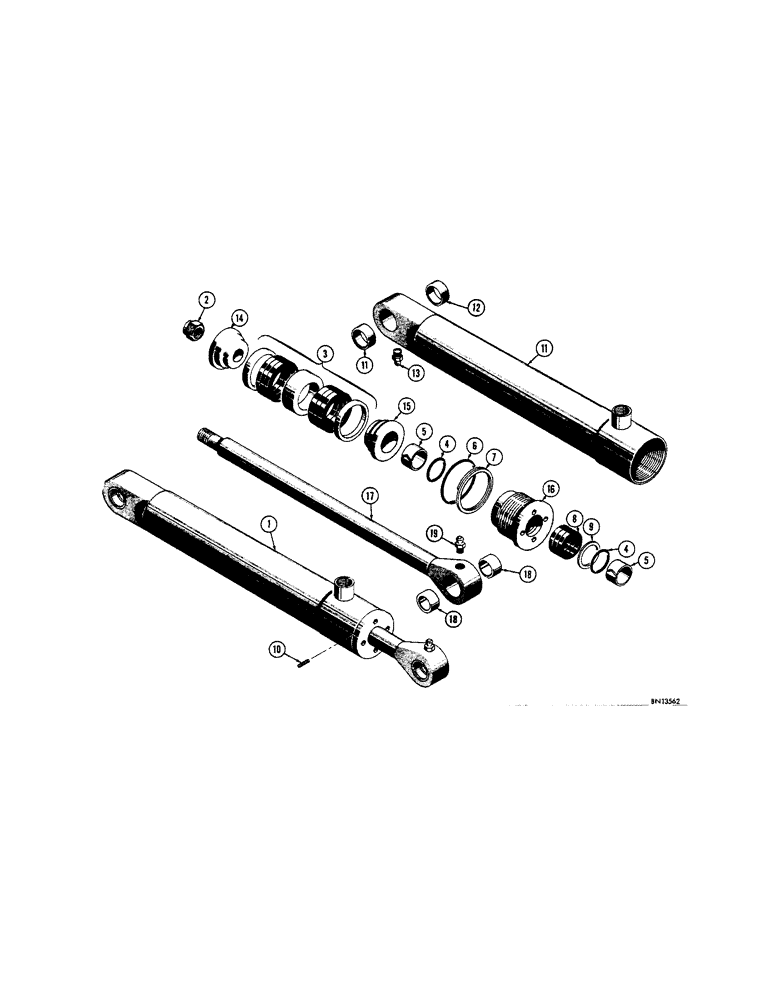

Запчасти Case 310F (204) - D28163 AND D29919 HYDRAULIC DOZER ANGLING CYLINDERS (07) - HYDRAULIC SYSTEM

1

D28163

CYLINDER - hydraulic, L.H. (3-1/2" I.D. x 9-5/8" stroke)

1шт.

1

D29919

CYLINDER

- hydraulic, R.H. (3-1/2" I.D. x 9-5/8" stroke)

1шт.

D30132

X

KIT - cylinder packing

1шт.

2

131-19

LOCK NUT,1"-14, GB

NUT - lock (1" - 14 NF)

1шт.

3

D28375

PACKING

- piston, kit (Includes chevron packings and spacers)

1шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper

1шт.

5

O8643AB

WIPER - piston rod

2шт.

6

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

2шт.

7

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

8

D28495

PACKING

SEAL - piston rod

1шт.

9

D28499

RING

- backup, piston rod seal

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D28385

TUBE - cylinder, L.H. (Includes ref. no. 12)

1шт.

12

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder tube end

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.

14

D28367

PISTON

- half, piston rod nut end

1шт.

15

D28369

PISTON

- half, piston rod eye end

1шт.

16

D27431

GLAND

- packing

1шт.

17

D28167

ROD ASSY.

ROD - piston (1-3/4" dia.)

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
