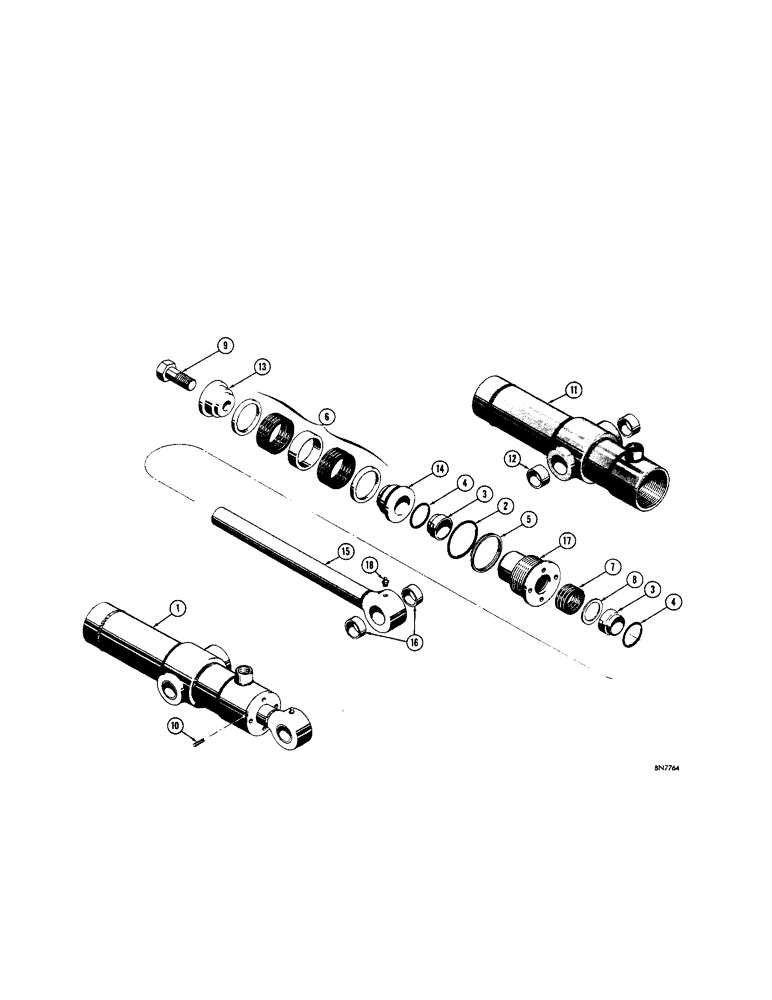

Запчасти Case 310F (204[1]) - D31185 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

1

D31185

CYLINDER - scarifier, hydraulic (3" I.D. x 10-1/2" stroke)

1шт.

D30129

X

KIT - cylinder

1шт.

D23729

NUT - lock (3/4" - 16 NF) Not shown

1шт.

2

O8347AB

X

SEAL - "O" ring, gland

1шт.

3

D27706

WIPER SEAL

WIPER - piston rod

2шт.

4

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper

2шт.

5

D28049

RING

- backup, gland seal

1шт.

6

D28374

PACKAGE,SERVICE

PACKING - piston (Includes chevrons and spacers)

1шт.

7

D28494

SEAL

- piston rod

1шт.

8

D28498

RING

- backup, piston rod seal

1шт.

9

D29306

BOLT

- piston retainer

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

11

D31184

TUBE

- cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube

2шт.

13

D28366

PISTON

- half, bolt end (Nut end)

1шт.

14

D28365

PISTON

- half, rod end (Eye end)

1шт.

15

D31183

ROD - piston (For service, use 1 - D32143 and 1- D29306)

1шт.

D32143

EYE

ROD - piston (1/2" dia.)

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

1шт.

17

D28048

GLAND

- packing

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.
