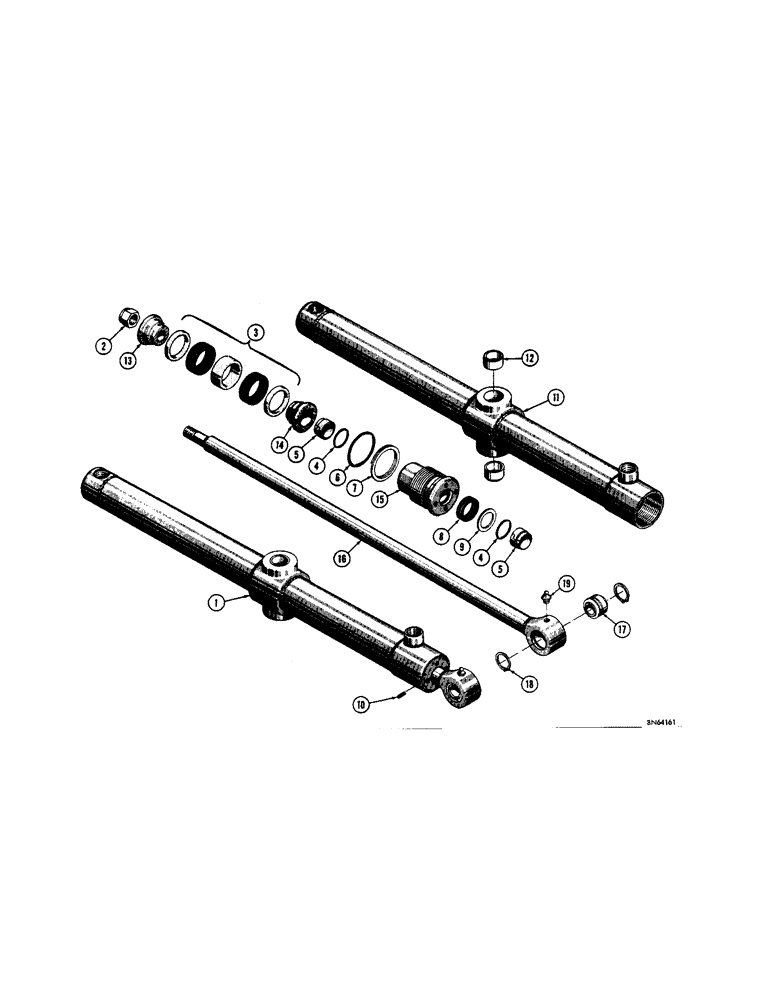

Запчасти Case 310F (200) - D27826 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D27826

CYLINDER - hydraulic (2-1/2" I.D. x 27-3/8" stroke)

2шт.

D30126

X

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

3

D28373

PACKING

- piston, kit (Includes chevron packings and spacers)

1шт.

4

O8848AB

X

SEAL - "O" ring, wiper

2шт.

5

D27705

WIPER

- piston rod

2шт.

6

O10984AB

X

SEAL - "O" ring, gland

1шт.

7

D27856

RING

- backup, gland seal

1шт.

8

D28493

X

SEAL - piston rod

1шт.

9

D28497

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D27837

TUBE - cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube end

2шт.

13

D28364

PISTON

- half, piston rod nut end

1шт.

14

D28362

SCREW

- half, piston rod eye end

1шт.

15

D27854

GLAND

- packing

1шт.

16

D27828

PISTON ROD

ROD - piston (1-1/4" dia.)

1шт.

17

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - self-aligning

1шт.

18

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT)

1шт.
