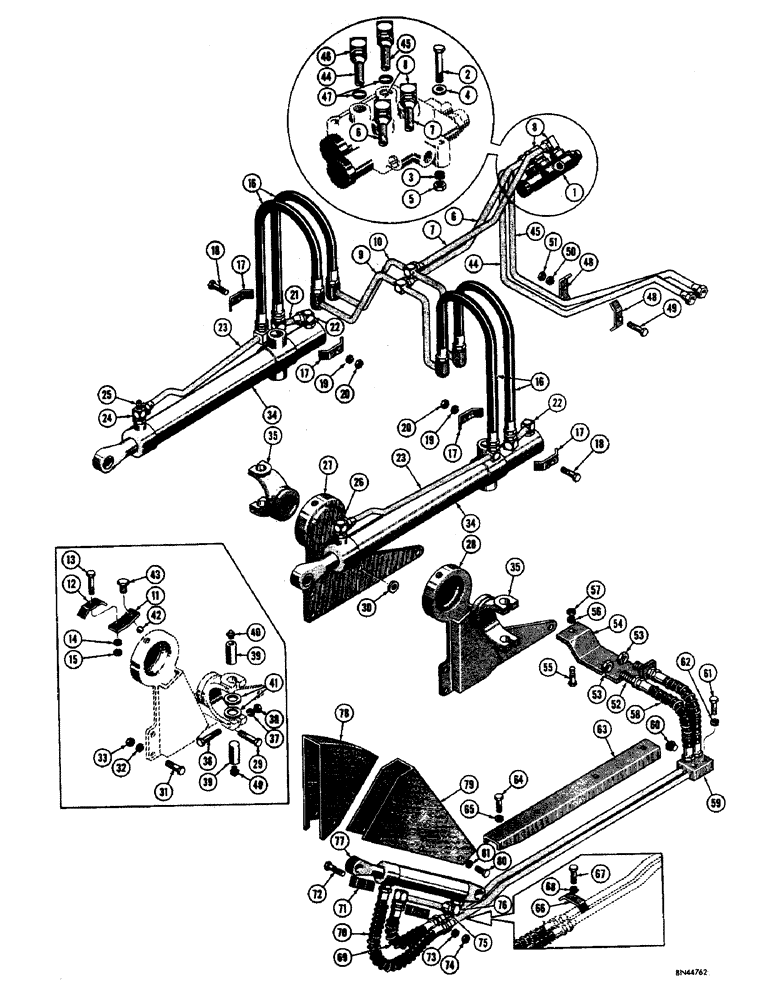

Запчасти Case 310F (190) - HYDRAULIC CROWN TILT BULLDOZER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See Figure 152 for breakdown)

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

6

D26741

TUBE - L.H. front control valve port to front manifold tube

1шт.

7

D26743

TUBE - L.H. rear control valve port to rear manifold tube

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow (Not shown)

1шт.

9

D26745

TUBE - manifold, front

1шт.

10

D26748

TUBE - manifold, rear

1шт.

11

D26751

BRACKET - tube

2шт.

12

38331

PLATE

- clamp

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

16

D26792

HOSE - manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 26")

4шт.

17

31665

COLLAR CLAMP

PLATE - clamp

4шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

21

D30605

TUBE - hose to rear lift cylinder port

2шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

2шт.

23

D30607

TUBE - hose to front lift cylinder port

2шт.

24

D27782

X

ELBOW - special, R.H. front lift cylinder port (5/8" JIC male x 5/8" JIC male x 1/4" NPT female)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D27782 elbow (Not shown)

1шт.

25

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow (Not shown)

1шт.

27

D24502

BRACKET - cylinder, R.H.

1шт.

28

D24501

BRACKET - cylinder, L.H.

1шт.

29

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

30

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick) R.H. cylinder bracket upper mounting bolts (Diesel models only)

2шт.

31

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

33

25-1010

NUT,5/8"-11, G5

10шт.

34

D30076

CYLINDER ASSY.

CYLINDER - dozer lift, hydraulic (See Figure 200(1) for breakdown)

2шт.

35

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Not shown

2шт.

36

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

39

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

41

D24516

WASHER

- thrust (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)

4шт.

42

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

43

D24506

PLUG

- special (7/8" - 14 NF)

2шт.

44

D30598

TUBE - R.H. front control valve port to front bulkhead union, tilt cylinder hydraulics

1шт.

45

D30600

TUBE - R.H. rear control valve port to rear bulkhead union, tilt cylinder hydraulics

1шт.

46

D25667

ELBOW

- male, 90 degrees (1/2" JIC x 5/8" JIC), tilt cylinder hydraulics

2шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25667 elbow, tilt cylinder hydraulics

1шт.

48

32978

PLATE ASSY.

PLATE - clamp, tilt cylinder hydraulics

2шт.

49

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", tilt cylinder hydraulics

1шт.

50

92-5

LOCK WASHER,5/16"

tilt cylinder hydraulics 5/16"

1шт.

51

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), tilt cylinder hydraulics

1шт.

52

50883

UNION - special bulkhead, tilt cylinder hydraulics

2шт.

53

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), tilt cylinder hydraulics

2шт.

54

D30602

GUARD - tubing, tilt cylinder hydraulics

1шт.

55

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Tilt cylinder hydraulics Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

56

92-8

LOCK WASHER,1/2"

tilt cylinder hydraulics 1/2"

1шт.

57

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), tilt cylinder hydraulics

1шт.

58

D30603

HOSE

- bulkhead union to junction block and tube assembly (1/2" I.D. x 7/8" O.D. x 21-1/4"), tilt cylinder hydraulics

2шт.

59

D28040

STEM

JUNCTION BLOCK AND TUBE ASS'Y, tilt cylinder hydraulics

1шт.

60

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT), tilt cylinder hydraulics

1шт.

61

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", tilt cylinder hydraulics

2шт.

62

92-8

LOCK WASHER,1/2"

tilt cylinder hydraulics 1/2"

2шт.

63

37966

GUARD - tubing, tilt cylinder hydraulics

1шт.

64

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", tilt cylinder hydraulics

4шт.

65

92-8

LOCK WASHER,1/2"

tilt cylinder hydraulics 1/2"

4шт.

66

36801

GEAR

PLATE - clamp, tilt cylinder hydraulics

1шт.

67

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Tilt cylinder hydraulics Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

68

92-8

LOCK WASHER,1/2"

tilt cylinder hydraulics 1/2"

1шт.

69

37965

HOSE - inside tube of junction block and tube assembly to tilt cylinder tube (1/2" I.D. x 7/8" O.D. x 19"), hydraulics

1шт.

70

D28212

HOSE - outside tube of junction block and tube assembly to front tilt cylinder port (1/2" I.D. x 7/8" O.D. x 19"), hydraulics

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D28212 hose (Not shown), tilt cylinder hydraulics

1шт.

71

D28020

PLATE - clamp, tilt cylinder hydraulics

2шт.

72

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Tilt cylinder hydraulics Hex, 5/16"-18 x 2", G5

1шт.

73

92-5

LOCK WASHER,5/16"

tilt cylinder hydraulics 5/16"

1шт.

74

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), tilt cylinder hydraulics

1шт.

75

D28211

TUBE

- hose to rear tilt cylinder port, hydraulics

1шт.

76

D25667

ELBOW

- male, 90 degrees (Rear tilt cylinder port) (1/2" JIC x 5/8" JIC), hydraulics

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23973 elbow (Not shown), tilt cylinder hydraulics

1шт.

77

D28218

CYLINDER ASSY.

CYLINDER - dozer tilt, hydraulic (See Figure 202(1) for breakdown)

1шт.

78

39631

FLEXIBLE HOSE

GUARD - tilt cylinder, front, hydraulics

1шт.

79

39634

HOSE

Guard, Tilt Cylinder, Rear, Hydraulics

1шт.

80

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4", hydraulics

6шт.

81

92-8

LOCK WASHER,1/2"

tilt cylinder hydraulics 1/2"

6шт.
