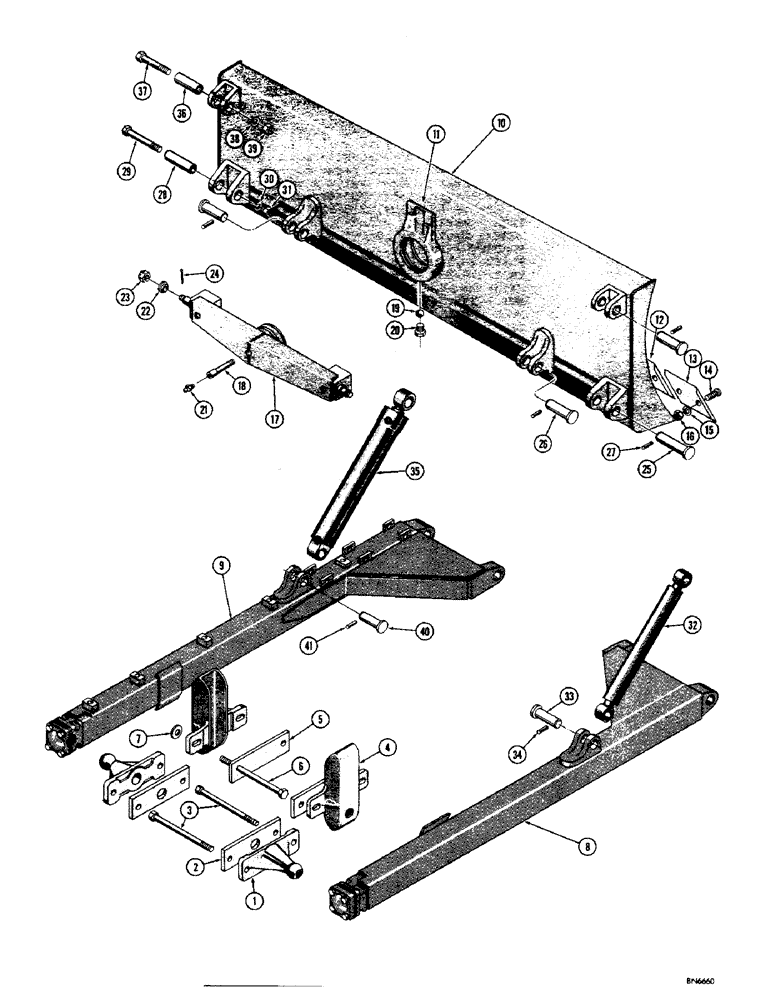

Запчасти Case 310F (188) - HYDRAULIC CROWN TILT BULLDOZER (07) - HYDRAULIC SYSTEM

1

D30587

TRUNNION - pivot, dozer attaching

2шт.

2

D30586

SPACER - trunnion

2шт.

3

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12"

2шт.

4

37992

PLATE - rub

2шт.

5

D30585

SPACER - rub plate

2шт.

6

16-12216

X

HHCS - 3/4" - 16 NF x 13-1/2"

6шт.

7

95-12

WASHER,3/4"

- flat () 3/4"

4шт.

8

37881

CONDUIT

BEAM - push, R.H.

1шт.

9

37997

FORK

BEAM - push, L.H.

1шт.

10

D25701

MOLDBOARD - hydraulic crown tilt bulldozer

1шт.

11

D27109

TRUNNION - outer race

1шт.

12

16452

EDGE

BLADE - cutting, center

1шт.

13

NLS

NO LONGER SERVICED

BLADE - cutting, end

2шт.

14

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

19шт.

15

92-8

LOCK WASHER,1/2"

19шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

19шт.

17

D25702

LEVELING ASSEMBLY - moldboard

1шт.

18

D25736

PIPE- lubrication, leveling assembly

1шт.

19

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

19шт.

20

D24506

PLUG

- special (7/8" - 14 NF)

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

22

D25704

SPACER

2шт.

23

25-1212

NUT - hex. slotted (3/4" - 10 NC) 3/4"-10, G5

2шт.

24

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

25

39222

PIN - R.H. push beam to moldboard, outer

1шт.

26

37990

PIN - push beam to moldboard, inner

2шт.

27

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , 39222 and 37990 pins 3/8" x 2 1/2", Slotted

3шт.

28

D20149

PIN - L.H. push beam to moldboard, outer

1шт.

29

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

30

92-8

LOCK WASHER,1/2"

1шт.

31

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

32

38158

STRUT - R.H. push, Serial Range: beam-moldboard

1шт.

33

37990

PIN - mounting, strut (Upper and lower)

2шт.

34

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , 37990 pin 3/8" x 2 1/2", Slotted

2шт.

35

D28218

CYLINDER ASSY.

CYLINDER - dozer tilt, hydraulic (Parts list, Figure 202(1) )

1шт.

36

D20188

PIN - tilt, Serial Range: cylinder-moldboard

1шт.

37

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

38

92-8

LOCK WASHER,1/2"

1шт.

39

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

40

37990

PIN - tilt cylinder to L.H. push beam

1шт.

41

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , 37990 pin 3/8" x 2 1/2", Slotted

1шт.
